PULS Open & DIN Power Supply Units Rail mounted PSU (DIN) 624008

PULS Brand: PULS
The Puls range of power supply units, designed for DIN rail mounting, is characterised by various output configurations, offering reliable performance and efficient power delivery tailored for industrial applications.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Output Current Number of Outputs Power Rating Connection Dim Efficiency Height Length Input Voltage Max. operating temperature (derating) Misc Attribute Max. output current Maximum Input Volage Maximum Operating Temperature Maximum Temperature Min. temperature Minimum Input Volage MTBF Nominal Input Voltage

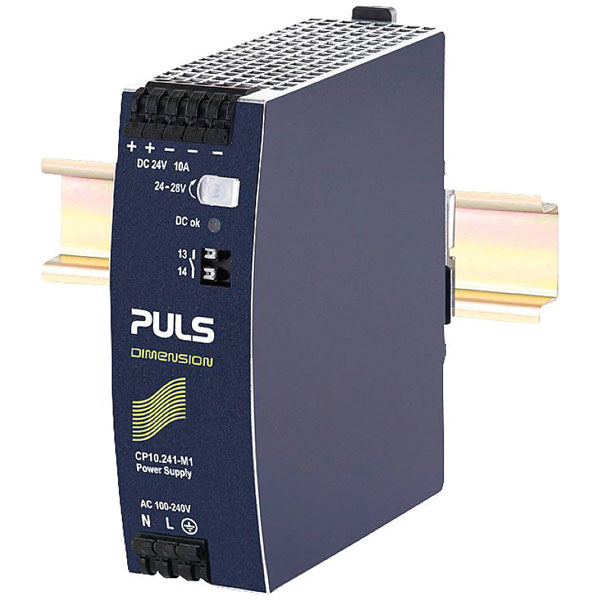

PULS CP10.241-M1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Mounted
PULS CP10.241-M1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Mounted
Standard range
Order code: 10-3185
MPN: CP10.241-M1

Available to back orderBack order, lead time 4 weeks
1+ £193.76
Price per unit Ex VAT 		24V 10A 1 240W Spring-loaded terminal (L x W x H) 117 x 39 x 124 mm 95.2% 124mm 117mm AC 100-240V (-15%/+10%)
DC 110V-150V (± 20%)		 +60°C 10A 264V +70°C +70°C -25°C 85V 661.000h 100 - 240 V/AC
PULS CP10.242-R2 DIMENSION DIN Rail PSU 24V DC 240W 1 piece
PULS CP10.242-R2 DIMENSION DIN Rail PSU 24V DC 240W 1 piece
Extended range
Order code: 10-3189
MPN: CP10.242-R2

Available to back order
1+ £266.52
Price per unit Ex VAT 		24V DC 240W Screw terminal (L x W x H) 124 x 39 x 117 mm 95.2% 117mm 124mm +60°C 264V AC +70°C +70°C -25°C 85V AC 667000h AC 100-240V
PULS CP10.361 DIMENSION PSU Rail Mount DIN 6.7A 240W 1piece
PULS CP10.361 DIMENSION PSU Rail Mount DIN 6.7A 240W 1piece
Standard range
Order code: 10-3190
MPN: CP10.361

Despatched within 4 working days - 3 in stock
1+ £202.78
Price per unit Ex VAT 		36V 6.7A 240W (L x W x H) 117 x 39 x 124 mm 124mm 117mm DIMENSION 6.7A 70°C
PULS CP20.241-S1 DIMENSION Rail PSU 24V 20A 480W DIN Rail Mounted
PULS CP20.241-S1 DIMENSION Rail PSU 24V 20A 480W DIN Rail Mounted
Extended range
Order code: 10-3194
MPN: CP20.241-S1

Available to back orderBack order, lead time 3 weeks
1+ £278.80
Price per unit Ex VAT 		24V 20A 1 480W Spring-loaded terminal (L x W x H) 127 x 48 x 124 mm 95.6% 124mm 127mm AC 100-240V (-15%/+10%)
DC 110V-150V (± 20%)		 +60°C 20A 264V +70°C +70°C -25°C 85V 590.000h 100 - 240 V/AC
PULS CP20.242 DIMENSION Rail PSU 24V 20A 480W 1 Output Rail Mount
PULS CP20.242 DIMENSION Rail PSU 24V 20A 480W 1 Output Rail Mount
Standard range
Order code: 10-3195
MPN: CP20.242

Despatched within 4 working days - 4 in stock
1+ £263.96
Price per unit Ex VAT 		24V 20A 1 480W Screw terminal (L x W x H) 127 x 48 x 124 mm 95.6% 124mm 127mm AC 100-240V (± 15%)
DC 110V-300V (± 20%)		 +45°C 20A 264V +70°C +70°C -25°C 85V 590.000h 110 - 240 V/AC
PULS CP20.481 DIMENSION Rail PSU 48V 10A 480W 1 Output DIN Mount
PULS CP20.481 DIMENSION Rail PSU 48V 10A 480W 1 Output DIN Mount
Standard range
Order code: 10-3197
MPN: CP20.481

Despatched within 4 working days - 38 in stock
1+ £286.36
Price per unit Ex VAT 		48V 10A 1 480W Screw terminal (L x W x H) 127 x 48 x 124 mm 96.3% 124mm 127mm AC 100-240V (-15%/+10%)
DC 110V-150V (± 20%)		 +60°C 10A 264V +70°C +70°C -25°C 85V 100 - 240 V/AC
PULS CP5.121 DIMENSION Rail Mounted PSU 12V DC 120W DIN Rail 1 piece
PULS CP5.121 DIMENSION Rail Mounted PSU 12V DC 120W DIN Rail 1 piece
Standard range
Order code: 10-3198
MPN: CP5.121

Despatched within 4 working days - 9 in stock
1+ £145.00
Price per unit Ex VAT 		12V DC 120W Screw terminal (L x W x H) 124 x 32 x 102 mm 94% 102mm 124mm +60°C 264V AC +70°C +70°C -25°C 85V AC 732000h AC 100-240V
PULS CP5.241 DIMENSION DIN Rail PSU 5A 120W 1piece
PULS CP5.241 DIMENSION DIN Rail PSU 5A 120W 1piece
Standard range
Order code: 10-3199
MPN: CP5.241

Despatched within 4 working days - 58 in stock
1+ £137.81
Price per unit Ex VAT 		24V 5A 120W (L x W x H) 102 x 32 x 124 mm 124mm 102mm DIMENSION 5A 70°C
PULS CP5.242 DIMENSION PSU DIN Rail Mounted 24V DC 120W 1pieces
PULS CP5.242 DIMENSION PSU DIN Rail Mounted 24V DC 120W 1pieces
Standard range
Order code: 10-3201
MPN: CP5.242

Despatched within 4 working days - 12 in stock
1+ £145.54
Price per unit Ex VAT 		24V DC 120W Screw terminal (L x W x H) 124 x 32 x 102 mm 94.3% 102mm 124mm +60°C 264V AC +70°C +70°C -25°C 85V AC 867000h AC 100-240V
PULS CS10.241-S1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Rail Mount
PULS CS10.241-S1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Rail Mount
Extended range
Order code: 10-3203
MPN: CS10.241-S1

Available to back order
1+ £198.37
Price per unit Ex VAT 		24V 10A 1 240W Spring-loaded terminal (L x W x H) 117 x 60 x 124 mm 91.6% 124mm 117mm AC 100-120/200-240V (± 10%) +60°C 10A 264V +70°C +70°C -25°C 85V 821.000h 100 - 240 V/AC
PULS CS10.242 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Mounted
PULS CS10.242 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Mounted
Standard range
Order code: 10-3205
MPN: CS10.242

Despatched within 4 working days - 2 in stock
1+ £222.31
Price per unit Ex VAT 		24V 10A 1 240W Screw terminal (L x W x H) 117 x 60 x 124 mm 91.2% 124mm 117mm AC 100-120/200-240V (± 10%) +60°C 10A 264V +70°C +70°C -25°C 85V 821.000h 100 - 240 V/AC
PULS CS5.241-C1 DIMENSION Rail PSU 24V 5A 120W Single Output
PULS CS5.241-C1 DIMENSION Rail PSU 24V 5A 120W Single Output
Standard range
Order code: 10-3207
MPN: CS5.241-C1

Despatched within 4 working days - 7 in stock
1+ £177.64
Price per unit Ex VAT 		24V 5A 1 120W Screw terminal (L x W x H) 117 x 32 x 124 mm 90.2% 124mm 117mm AC 100-120/200-240V (± 10%) +60°C 5A 264V +70°C +70°C -25°C 85V 869.000h 100 - 240 V/AC
PULS CS5.241-S1 DIMENSION Rail PSU 24V 5A 120W 1 Output DIN Rail Mounted
PULS CS5.241-S1 DIMENSION Rail PSU 24V 5A 120W 1 Output DIN Rail Mounted
Standard range
Order code: 10-3209
MPN: CS5.241-S1

Despatched within 4 working days - 19 in stock
1+ £142.92
Price per unit Ex VAT 		24V 5A 1 120W Spring-loaded terminal (L x W x H) 117 x 32 x 124 mm 90.2% 124mm 117mm AC 100-120/200-240V (± 10%) +60°C 5A 90V +70°C +70°C -25°C 180V 869.000h 100 - 240 V/AC
PULS QS10.241-C1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Rail
PULS QS10.241-C1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Rail
Standard range
Order code: 10-3236
MPN: QS10.241-C1

Despatched within 4 working days - 1 in stock
1+ £318.21
Price per unit Ex VAT 		24V 10A 1 240W Spring-loaded terminal (L x W x H) 117 x 60 x 124 mm 93.5% 124mm 117mm AC 100-240V (± 15%)
DC 110V-150V (-20%/+25%)		 +60°C 10A 276V +70°C +70°C -25°C 85V 581.000h 100 - 240 V/AC
PULS QS10.301 DIMENSION Rail PSU 30V 8.6A 240W 1 Output Rail Mount
PULS QS10.301 DIMENSION Rail PSU 30V 8.6A 240W 1 Output Rail Mount
Standard range
Order code: 10-3237
MPN: QS10.301

Despatched within 4 working days - 6 in stock
1+ £290.77
Price per unit Ex VAT 		30V 8.6A 1 240W Spring-loaded terminal (L x W x H) 117 x 60 x 124 mm 93.5% 124mm 117mm AC 100-240V (± 15%)
DC 110V-150V (-20%/+25%)		 +60°C 8.6A 276V +70°C +70°C -25°C 85V 581.000h 100 - 240 V/AC
PULS QS40.361 DIMENSION PSU 36V DC 26.7A 960W 1 Output DIN Rail Mount
PULS QS40.361 DIMENSION PSU 36V DC 26.7A 960W 1 Output DIN Rail Mount
Standard range
Order code: 10-3239
MPN: QS40.361

Despatched within 4 working days - 5 in stock
1+ £603.62
Price per unit Ex VAT 		36V DC 26.7A 1 960W Screw terminal (L x W x H) 127 x 125 x 124 mm 94.6% 124mm 127mm AC 100-240V (-15%/+10%) +60°C 26.7A 240V +70°C +70°C -25°C 100V 300.000h 100 - 240 V/AC
PULS QT40.242 DIMENSION Rail PSU 40A 960W High Efficiency Compact Design
PULS QT40.242 DIMENSION Rail PSU 40A 960W High Efficiency Compact Design
Standard range
Order code: 10-3243
MPN: QT40.242

Despatched within 4 working days - 22 in stock
1+ £465.70
Price per unit Ex VAT 		24V 40A 960W (L x W x H) 127 x 110 x 124 mm 124mm 127mm DIMENSION 40A 480V AC 70°C 380V AC
PULS QT40.361 DIMENSION Rail PSU DIN 26.7A 960W 1 piece
PULS QT40.361 DIMENSION Rail PSU DIN 26.7A 960W 1 piece
Standard range
Order code: 10-3245
MPN: QT40.361

Despatched within 4 working days - 4 in stock
1+ £511.23
Price per unit Ex VAT 		36V 26.7A 960W (L x W x H) 127 x 110 x 124 mm 124mm 127mm DIMENSION 26.7A 480V AC 70°C 380V AC
PULS XT40.241 DIMENSION Power Supply 24.1V 40A 960W DIN Rail Mounted
PULS XT40.241 DIMENSION Power Supply 24.1V 40A 960W DIN Rail Mounted
Extended range
Order code: 10-3253
MPN: XT40.241

Available to back orderBack order, lead time 14 days
1+ £738.66
Price per unit Ex VAT 		24.1V 40A 1 960W Screw terminal (L x W x H) 159 x 96 x 124 mm 95.5% 124mm 159mm AC 400V (± 15%) +60°C 40A 475V +70°C +70°C -25°C 300V 529.000h 400 V/3AC
PULS XT40.361 DIMENSION Rail Mount PSU 36V 26.6A 960W 1 Output
PULS XT40.361 DIMENSION Rail Mount PSU 36V 26.6A 960W 1 Output
Standard range
Order code: 10-3257
MPN: XT40.361

Despatched within 4 working days - 3 in stock
1+ £366.99
Price per unit Ex VAT 		36V 26.6A 1 960W Screw terminal (L x W x H) 159 x 96 x 124 mm 95.5% 124mm 159mm AC 400V (± 15%) +60°C 26.6A 475V +70°C +70°C -25°C 300V 529.000h 400 V/3AC
PULS XT40.481 DIMENSION DIN Rail PSU 48V 20A 960W 1 Output 1piece
PULS XT40.481 DIMENSION DIN Rail PSU 48V 20A 960W 1 Output 1piece
Standard range
Order code: 10-3259
MPN: XT40.481

Available to back orderBack order, lead time 12 weeks
1+ £333.45
Price per unit Ex VAT 		48V 20A 1 960W Screw terminal (L x W x H) 159 x 96 x 124 mm 96.0% 124mm 159mm AC 400V (± 15%) +60°C 20A 475V +70°C +70°C -25°C 300V 540.000h 400 V/3AC
PULS XT40.482 DIMENSION Rail PSU DIN 48V 20A 40W 1 Output
PULS XT40.482 DIMENSION Rail PSU DIN 48V 20A 40W 1 Output
Standard range
Order code: 10-3261
MPN: XT40.482

Despatched within 4 working days - 1 in stock
1+ £333.45
Price per unit Ex VAT 		48V 20A 1 40W Screw terminal (L x W x H) 159 x 96 x 124 mm 96.0% 124mm 159mm AC 480V (± 15%) +60°C 20A 565V +70°C +70°C -25°C 360V 540.000h
PULS XT40.721 DIMENSION Rail PSU 72V 13.3A 960W 1 Output Rail-Mounted
PULS XT40.721 DIMENSION Rail PSU 72V 13.3A 960W 1 Output Rail-Mounted
Extended range
Order code: 10-3263
MPN: XT40.721

Available to back orderBack order, lead time 4 weeks
1+ £366.99
Price per unit Ex VAT 		72V 13.3A 1 960W Screw terminal (L x W x H) 159 x 96 x 124 mm 95.5% 124mm 159mm AC 400V (± 15%) +60°C 13.3A 475V +70°C +70°C -25°C 300V 539.000h 400 V/3AC
PULS XT40.722 DIMENSION Rail PSU 72V DC 13.3A 960W 1 Output 1piece
PULS XT40.722 DIMENSION Rail PSU 72V DC 13.3A 960W 1 Output 1piece
Extended range
Order code: 10-3265
MPN: XT40.722

Available to back orderBack order, lead time 4 weeks
1+ £366.99
Price per unit Ex VAT 		72V DC 13.3A 1 960W Screw terminal (L x W x H) 159 x 96 x 124 mm 95.5% 124mm 159mm AC 480V (± 15%) +60°C 13.3A 565V +70°C +70°C -25°C 360V 539.000h
