PULS XT40.482 DIMENSION Rail PSU DIN 48V 20A 40W 1 Output

PULS
Order Code:

10-3261

Brand: PULS MPN: XT40.482 EAN-13: 0875404000914
Qty Unit Price (Ex VAT)
1+ £336.68
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

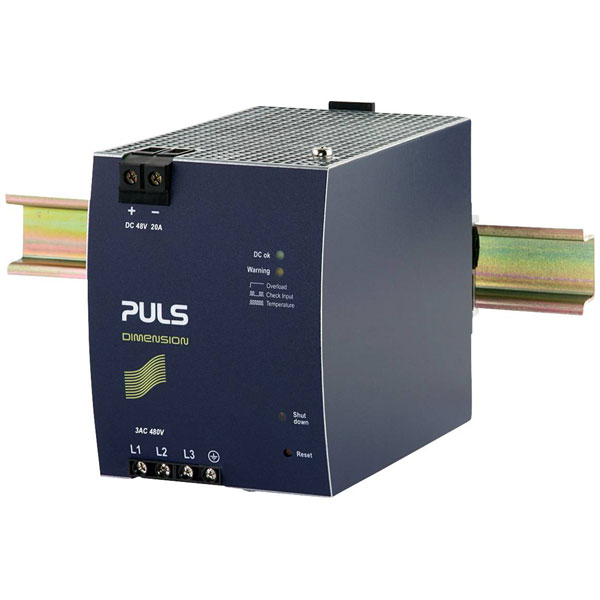

The PULS XT40.482 is a rail-mounted power supply unit providing 48 V at 20 A with a single output. This industrial-grade power supply is ideal for use in control cabinets and factory automation due to its reliable performance and compact DIN rail design. It delivers 40 watts of power, making it suitable for various industrial applications.
Type Rail mounted PSU (DIN)
Output Voltage 48V
Output Current 20A
Number of Outputs 1
Power Rating 40W
Connection Screw terminal
Dim (L x W x H) 159 x 96 x 124 mm
Efficiency 96.0%
Height 124mm
Input Voltage AC 480V (± 15%)
Input voltage (max.) 565V
Length 159mm
Max. operating temperature (derating) +60°C
Max. output current 20A
Max. temperature +70°C
Min. input voltage 360V
Min. temperature -25°C
MTBF 540.000h
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output type (power supply units) Fixed voltage
Phases 3
Width 96mm
