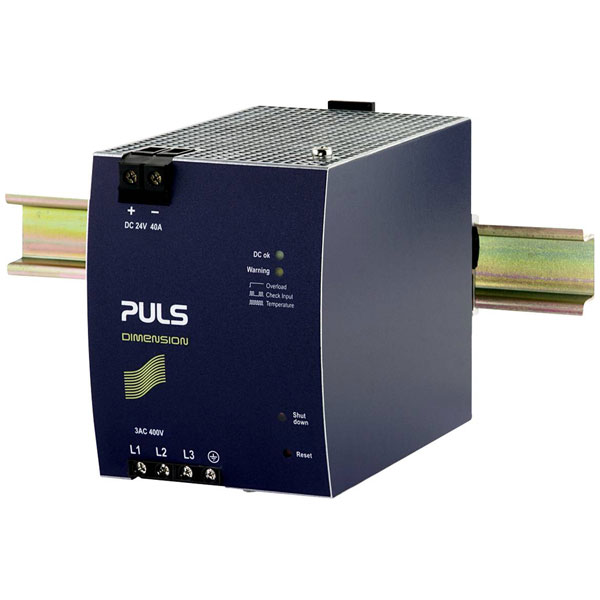

PULS XT40.241 DIMENSION Power Supply 24.1V 40A 960W DIN Rail Mounted

PULS
Order Code:

10-3253

Brand: PULS MPN: XT40.241 EAN-13: 0875404000884
Qty Unit Price (Ex VAT)
1+ £527.39
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The PULS XT40.241 is a rail-mounted power supply unit with a single output of 24.1 V at 40 A, providing 960 W of power. It is designed for industrial applications that require reliable power integration on DIN rails. The unit is ideal for use in automation systems, control panels, and other industrial power supply needs.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 159 x 96 x 124 mm
Efficiency 95.5%
Height 124mm
Input Voltage AC 400V (± 15%)
Input voltage (max.) 475V
Length 159mm
Max. operating temperature (derating) +60°C
Max. output current 40A
Max. temperature +70°C
Min. input voltage 300V
Min. temperature -25°C
MTBF 529.000h
Nominal Input Voltage 400 V/3AC
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 40A
Output type (power supply units) Fixed voltage
Output voltage (nominal) 24.1V
Phases 3
Power 960W
Width 96mm
