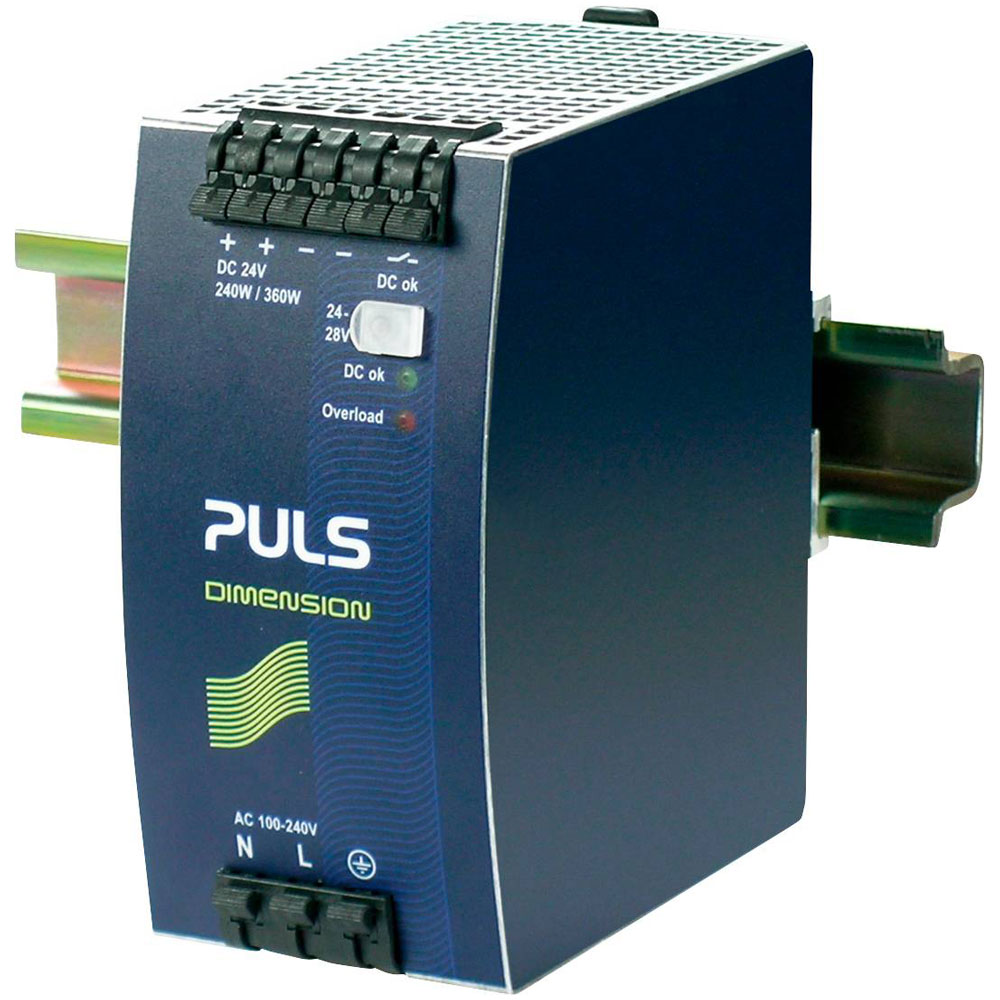

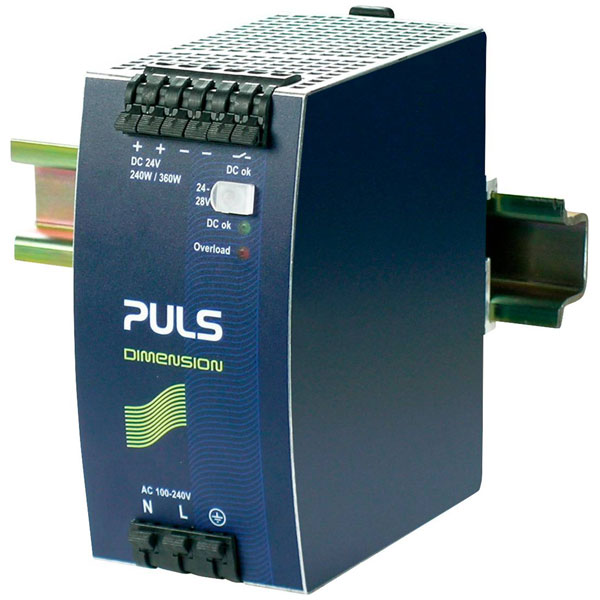

PULS QS10.241-C1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Rail

PULS
Standard range
Order Code:

10-3236

Brand: PULS MPN: QS10.241-C1 EAN-13: 0875404001010
Qty Unit Price (Ex VAT)
1+ £282.37
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The PULS QS10.241-C1 is a rail-mounted power supply unit manufactured by PULS, offering 24 V and 10 A output with a power rating of 240 W. Designed for industrial applications, this DIN rail PSU ensures reliable and stable power distribution in automation and control systems. Suitable for installation in various industrial environments, it is ideal for powering equipment with a single output requirement.
Type Rail mounted PSU (DIN)
Connection Spring-loaded terminal
Dim (L x W x H) 117 x 60 x 124 mm
Efficiency 93.5%
Height 124mm
Input Voltage AC 100-240V (± 15%)
DC 110V-150V (-20%/+25%)
Input voltage (max.) 276V
Length 117mm
Manufacturer part # QS10.241-C1
Max. operating temperature (derating) +60°C
Max. output current 10A
Max. temperature +70°C
Min. input voltage 85V
Min. temperature -25°C
Misc Attribute Puls
MTBF 581.000h
No. of outputs 1
Nominal input voltage 100 - 240 V/AC
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 10A
Output type (power supply units) Adjustable
Output voltage (max.) 30V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 240W
Weight 900g
Width 60mm
