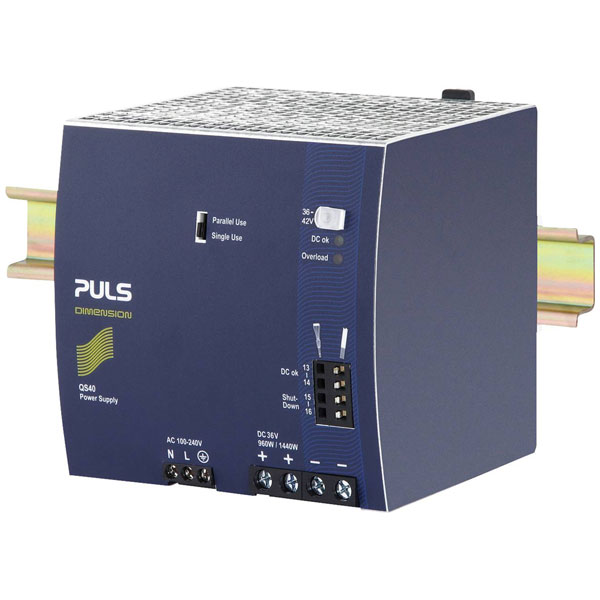

PULS QS40.361 DIMENSION PSU 36V DC 26.7A 960W 1 Output DIN Rail Mount

PULS
Order Code:

10-3239

Brand: PULS MPN: QS40.361 EAN-13: 0875404002093
Qty Unit Price (Ex VAT)
1+ £609.49
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The PULS QS40.361 is a rail mounted PSU designed for industrial applications, offering 36 V DC at 26.7 A with a power output of 960 W. This din rail power supply unit features a single output, making it suitable for streamlined power distribution within industrial settings. It is ideal for use in environments where reliability and efficiency are critical, such as automation systems and control panels.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 127 x 125 x 124 mm
Efficiency 94.6%
Height 124mm
Input Voltage AC 100-240V (-15%/+10%)
Input voltage (max.) 240V
Length 127mm
Max. operating temperature (derating) +60°C
Max. output current 26.7A
Max. temperature +70°C
Min. input voltage 100V
Min. temperature -25°C
MTBF 300.000h
Nominal Input Voltage 100 - 240 V/AC
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 26.7A
Output type (power supply units) Adjustable
Output voltage (max.) 43V DC
Output voltage (min.) 36V DC
Output voltage (nominal) 36V DC
Phases 1
Power 960W
Width 125mm
