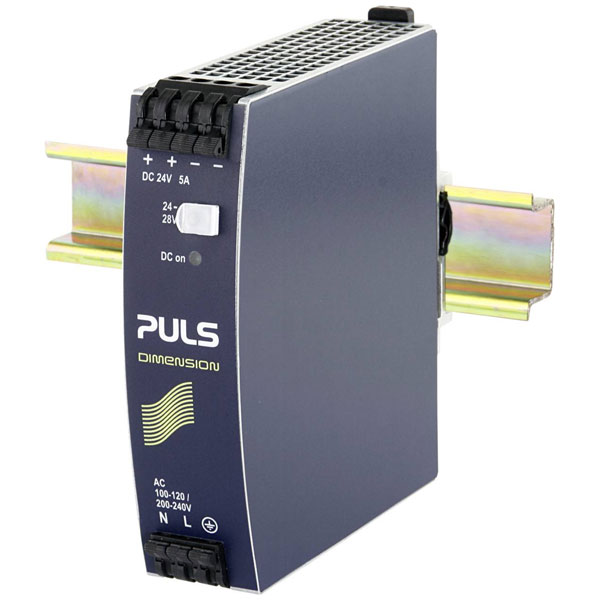

PULS CS5.241-S1 DIMENSION Rail PSU 24V 5A 120W 1 Output DIN Rail Mounted

PULS
Order Code:

10-3209

Brand: PULS MPN: CS5.241-S1 EAN-13: 0875404001065
Qty Unit Price (Ex VAT)
1+ £144.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
68 in stock, despatched in 4 working days

PULS manufactures the CS5.241-S1 rail mounted PSU (DIN), offering a 24 V, 5 A output with a power rating of 120 W. This power supply unit is designed for industrial applications and features a single output for efficient and reliable performance. It is ideal for use in control panel assemblies and automation systems.
Type Rail mounted PSU (DIN)
Connection Spring-loaded terminal
Dim (L x W x H) 117 x 32 x 124 mm
Efficiency 90.2%
Height 124mm
Input Voltage AC 100-120/200-240V (± 10%)
Input voltage (max.) 90V
Length 117mm
Max. operating temperature (derating) +60°C
Max. output current 5A
Max. temperature +70°C
Min. input voltage 180V
Min. temperature -25°C
MTBF 869.000h
Nominal Input Voltage 100 - 240 V/AC
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 5A
Output type (power supply units) Adjustable
Output voltage (max.) 30V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 120W
Width 32mm
