PULS CS10.242 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Mounted

PULS
Order Code:

10-3205

Brand: PULS MPN: CS10.242 EAN-13: 0875404000945
Qty Unit Price (Ex VAT)
1+ £222.30
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

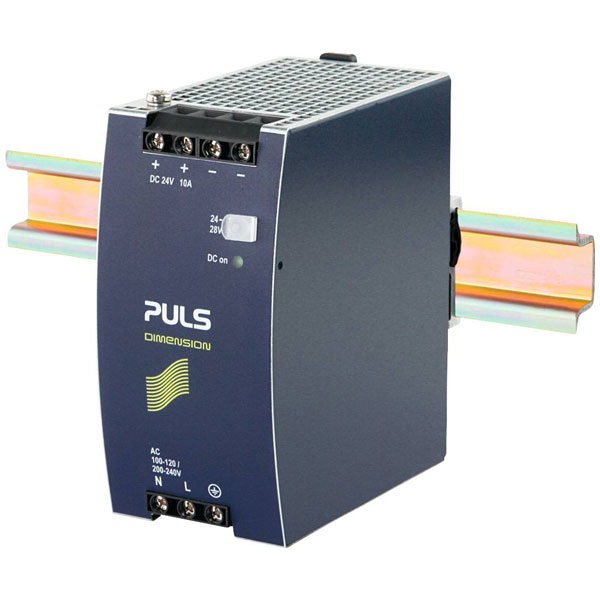

The PULS CS10.242 is a rail-mounted power supply unit that outputs 24 V at 10 A with a total power of 240 W. It is designed for industrial applications and provides reliable and efficient power distribution. Suitable for use in automation systems and industrial control panels, the unit is compact and easily mounts on a DIN rail.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 117 x 60 x 124 mm
Efficiency 91.2%
Height 124mm
Input Voltage AC 100-120/200-240V (± 10%)
Input voltage (max.) 264V
Length 117mm
Max. operating temperature (derating) +60°C
Max. output current 10A
Max. temperature +70°C
Min. input voltage 85V
Min. temperature -25°C
MTBF 821.000h
Nominal Input Voltage 100 - 240 V/AC
Number of Outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 10A
Output type (power supply units) Adjustable
Output voltage (max.) 30V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 240W
Width 60mm
