PULS CP10.241-M1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Mounted

PULS
Standard range
Order Code:

10-3185

Brand: PULS MPN: CP10.241-M1 EAN-13: 0875404002550
Qty Unit Price (Ex VAT)
1+ £188.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 1 day

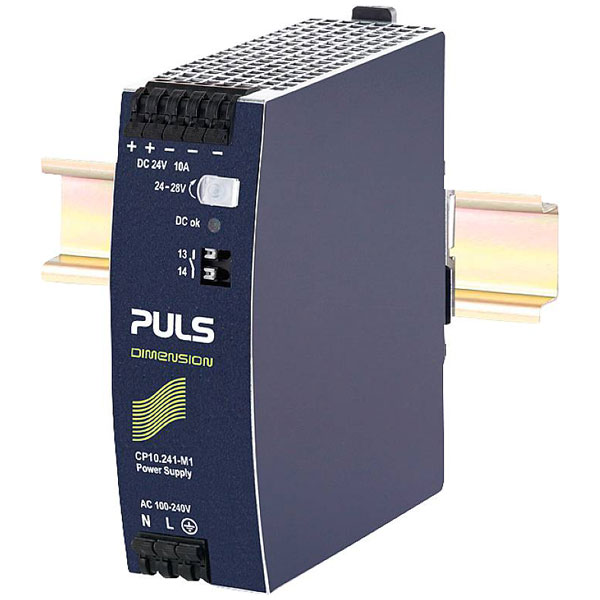

The PULS CP10.241-M1 is a rail mounted PSU (DIN) with a rating of 24 V, 10 A, and 240 W, featuring one output for reliable power delivery. Manufactured by PULS, this industrial power supply unit is designed for efficient and compact installation on DIN rails. It's typically used in industrial environments for powering control panels, automation systems, and other electrical devices.
Type Rail mounted PSU (DIN)
Connection Spring-loaded terminal
Dim (L x W x H) 117 x 39 x 124 mm
Efficiency 95.2%
Height 124mm
Input Voltage AC 100-240V (-15%/+10%)
DC 110V-150V (± 20%)
Input voltage (max.) 264V
Length 117mm
Manufacturer part # CP10.241-M1
Max. operating temperature (derating) +60°C
Max. output current 10A
Max. temperature +70°C
Min. input voltage 85V
Min. temperature -25°C
Misc Attribute Puls
MTBF 661.000h
No. of outputs 1
Nominal input voltage 100 - 240 V/AC
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 10A
Output type (power supply units) Adjustable
Output voltage (max.) 30V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 240W
Weight 620g
Width 39mm
