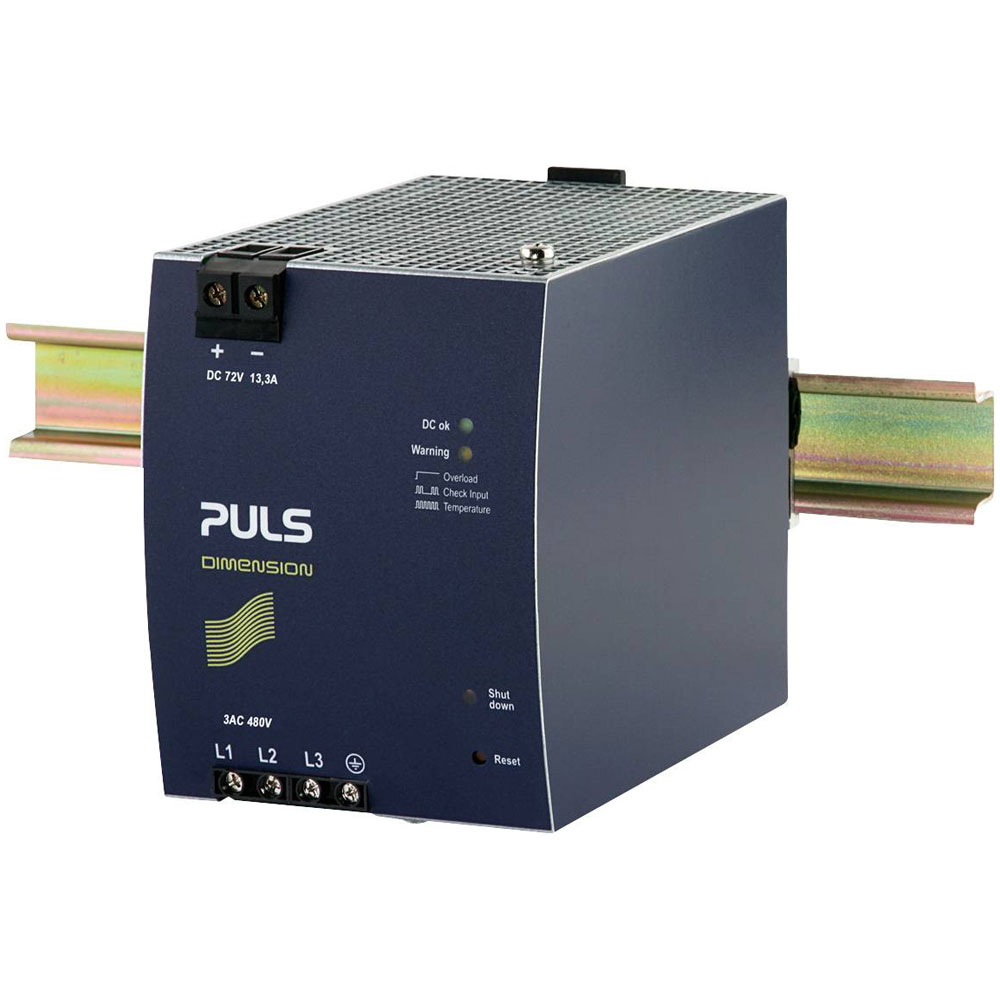

PULS XT40.722 DIMENSION Rail PSU 72V DC 13.3A 960W 1 Output 1piece

PULS
Standard range
Order Code:

10-3265

Brand: PULS MPN: XT40.722 EAN-13: 0875404001119
Qty Unit Price (Ex VAT)
1+ £356.09
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The PULS XT40.722 is a rail-mounted power supply unit providing a 72 V DC output at 13.3 A with a total power of 960 W. Designed for industrial use, it features a single output and is ideal for applications that require reliable power distribution. This DIN rail PSU is suitable for integration into control panels and automation systems.
Type Rail mounted PSU (DIN)
Connection Screw terminal
Dim (L x W x H) 159 x 96 x 124 mm
Efficiency 95.5%
Height 124mm
Input voltage AC 480V (± 15%)
Input voltage (max.) 565V
Length 159mm
Manufacturer part # XT40.722
Max. operating temperature (derating) +60°C
Max. output current 13.3A
Max. temperature +70°C
Min. input voltage 360V
Min. temperature -25°C
Misc Attribute Puls
MTBF 539.000h
No. of outputs 1
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 13.3A
Output type (power supply units) Fixed voltage
Output voltage (nominal) 72V DC
Phases 3
Power 960W
Weight 1400g
Width 96mm
