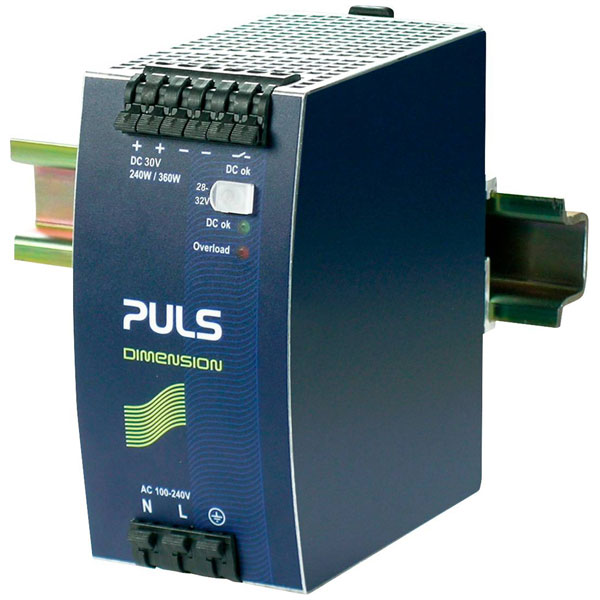

PULS QS10.301 DIMENSION Rail PSU 30V 8.6A 240W 1 Output Rail Mount

The PULS QS10.301 is a rail mounted PSU (DIN) that delivers 30 V and 8.6 A, totalling 240 W, with a single output. This industrial power supply unit is robust and reliable, ideal for powering critical applications in industrial environments. Designed to be mounted on a DIN rail, it is well-suited for use in control cabinets and automation systems.

Type	Rail mounted PSU (DIN)
Output Voltage	30V
Output Current	8.6A
Number of Outputs	1
Power Rating	240W
Connection	Spring-loaded terminal
Dim	(L x W x H) 117 x 60 x 124 mm
Efficiency	93.5%
Height	124mm
Input Voltage	AC 100-240V (± 15%) DC 110V-150V (-20%/+25%)
Length	117mm
Max. operating temperature (derating)	+60°C
Max. output current	8.6A
Maximum Input Volage	276V
Maximum Operating Temperature	+70°C
Maximum Temperature	+70°C
Min. temperature	-25°C
Minimum Input Volage	85V
MTBF	581.000h
Nominal Input Voltage	100 - 240 V/AC
Operating temperature (min.)	-25°C
Output type (power supply units)	Adjustable
Phases	1
Weight	900g
Width	60mm
