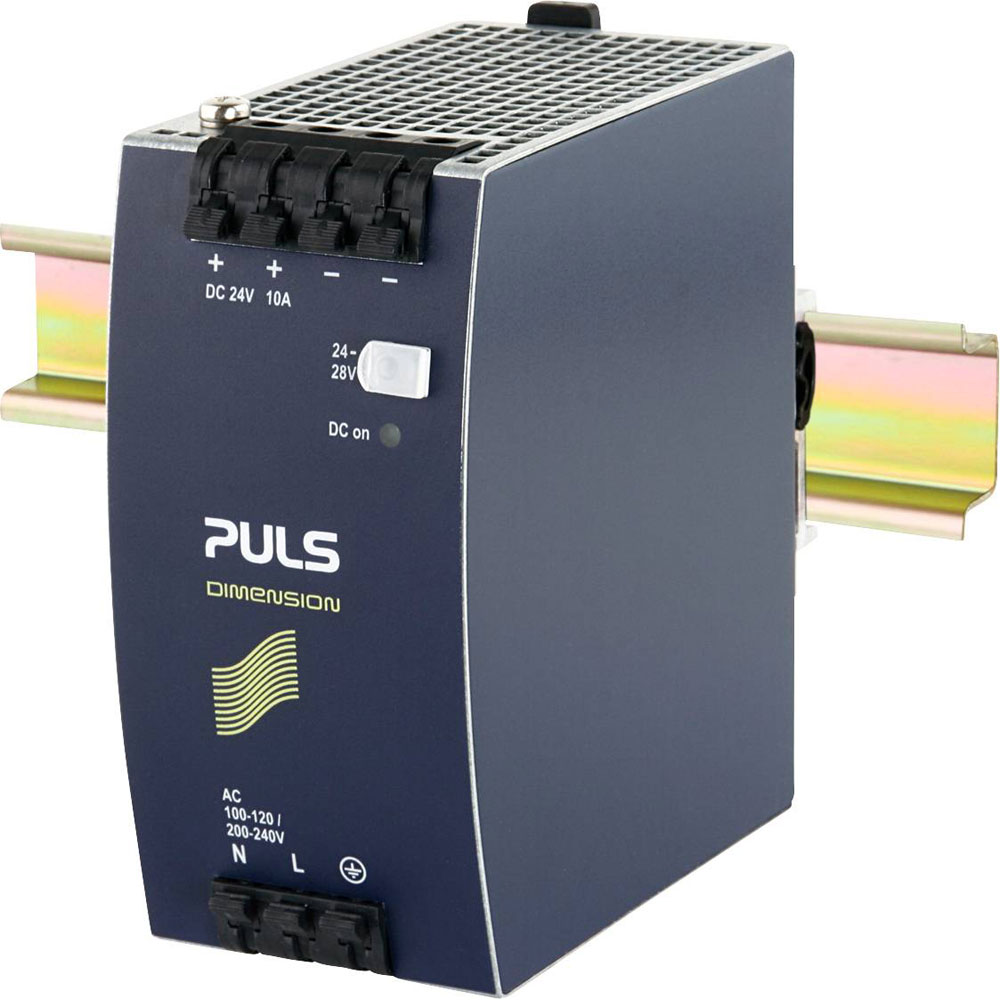

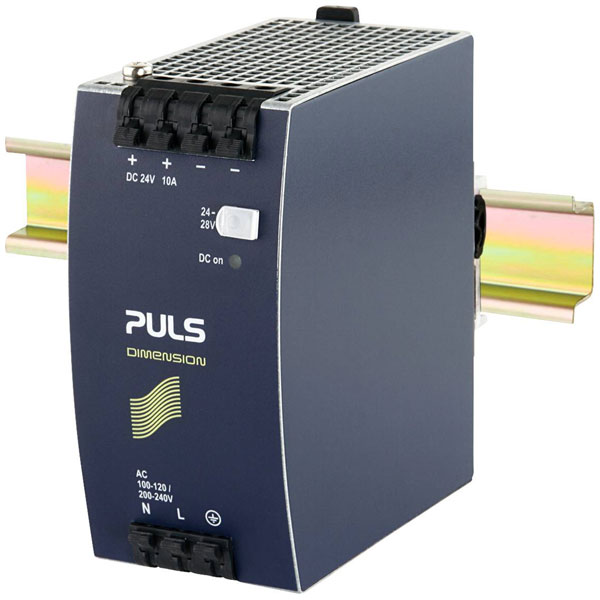

PULS CS10.241-S1 DIMENSION Rail PSU 24V 10A 240W 1 Output DIN Rail Mount

PULS
Standard range
Order Code:

10-3203

Brand: PULS MPN: CS10.241-S1 EAN-13: 0875404001072
Qty Unit Price (Ex VAT)
1+ £188.24
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

The PULS CS10.241-S1 is a rail-mounted power supply unit providing 24 V at 10 A with a total power output of 240 W and a single output. Manufactured by PULS, this DIN rail PSU is ideal for industrial applications requiring reliable and efficient power distribution. Common applications include automation systems and industrial control panels.
Type Rail mounted PSU (DIN)
Connection Spring-loaded terminal
Dim (L x W x H) 117 x 60 x 124 mm
Efficiency 91.6%
Height 124mm
Input voltage AC 100-120/200-240V (± 10%)
Input voltage (max.) 264V
Length 117mm
Manufacturer part # CS10.241-S1
Max. operating temperature (derating) +60°C
Max. output current 10A
Max. temperature +70°C
Min. input voltage 85V
Min. temperature -25°C
Misc Attribute Puls
MTBF 821.000h
No. of outputs 1
Nominal input voltage 100 - 240 V/AC
Operating temperature (max.) +70°C
Operating temperature (min.) -25°C
Output current (max.) - rounded 10A
Output type (power supply units) Adjustable
Output voltage (max.) 30V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 240W
Weight 700g
Width 60mm
