Mean Well DC-DC converters DC/DC converter (module) 608131

Mean Well Brand: Mean Well
The Mean Well DC/DC converters are compact, high-efficiency power solutions featuring dual outputs suitable for a wide temperature range.
Description Image Product Buy Pricing (Ex VAT) Input Voltage Range Output Current Efficiency (max.) Max. output current Min. input voltage Operating temperature (max.) Power Number of Outputs Connection Dim Height Insulation Voltage Length Operating temperature (min.) PSU features Type Width
Mean Well DETN01L-05 DC/DC converter 100mA 1W dual output 2 pcs
Mean Well DETN01L-05 DC/DC converter 100mA 1W dual output 2 pcs
Standard range
Order code: 05-0317
MPN: DETN01L-05

Available to back orderBack-order availability date - 31/12/2025
1+ £5.99
Price per unit Ex VAT 		5.5V DC 10mA 78% 100mA 4.5V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01L-12 DETN01 DC/DC converter 1W 42mA 2 outputs -40°C to +90°C
Mean Well DETN01L-12 DETN01 DC/DC converter 1W 42mA 2 outputs -40°C to +90°C
Extended range
Order code: 05-0318
MPN: DETN01L-12

2 available to back orderBack-order availability date - 14/01/2026
1+ £5.18
Price per unit Ex VAT 		5.5V DC 4.2mA 78% 42mA 4.5V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01L-15 DC/DC converter 1W dual output high efficiency
Mean Well DETN01L-15 DC/DC converter 1W dual output high efficiency
Extended range
Order code: 05-0319
MPN: DETN01L-15

49 available to back orderBack-order availability date - 14/01/2026
1+ £4.93
Price per unit Ex VAT 		5.5V DC 3.4mA 80% 34mA 4.5V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm

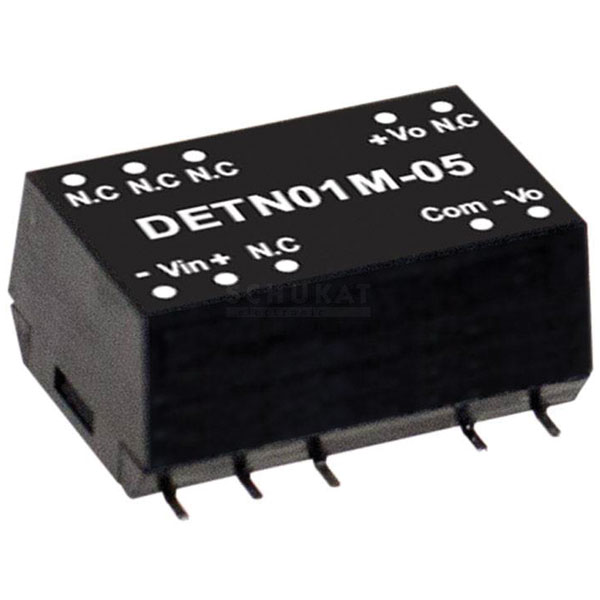

Mean Well DETN01M-05 DC/DC converter 1W 100mA dual output -40°C to 90°C
Mean Well DETN01M-05 DC/DC converter 1W 100mA dual output -40°C to 90°C
Extended range
Order code: 05-0321
MPN: DETN01M-05

Out of stockBack order, lead time 14 days
1+ £5.18
Price per unit Ex VAT 		13.2V DC 10mA 82% 100mA 10.8V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01M-12 DC/DC converter 1W 42 mA 2 outputs -40 to +90°C
Mean Well DETN01M-12 DC/DC converter 1W 42 mA 2 outputs -40 to +90°C
Extended range
Order code: 05-0322
MPN: DETN01M-12

1 available to back orderBack-order availability date - 14/01/2026
1+ £4.17
Price per unit Ex VAT 		13.2V DC 4.2mA 82% 42mA 10.8V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01M-15 DC/DC Converter 1W 34mA 2 Outputs -40/+90°C
Mean Well DETN01M-15 DC/DC Converter 1W 34mA 2 Outputs -40/+90°C
Extended range
Order code: 05-0323
MPN: DETN01M-15

44 available to back orderBack-order availability date - 14/01/2026
1+ £4.98
Price per unit Ex VAT 		13.2V DC 3.4mA 83% 34mA 10.8V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01N-05 DC/DC converter 2 outputs 100mA 1W -40°C to 90°C
Mean Well DETN01N-05 DC/DC converter 2 outputs 100mA 1W -40°C to 90°C
Extended range
Order code: 05-0324
MPN: DETN01N-05

1 available to back orderBack-order availability date - 14/01/2026
1+ £4.17
Price per unit Ex VAT 		26.4V DC 10mA 76% 100mA 21.6V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01N-12 SMD DC/DC converter 1W 2 outputs -40 to +90°C 83% eff.
Mean Well DETN01N-12 SMD DC/DC converter 1W 2 outputs -40 to +90°C 83% eff.
Extended range
Order code: 05-0326
MPN: DETN01N-12

1 available to back orderBack-order availability date - 14/01/2026
1+ £4.17
Price per unit Ex VAT 		26.4V DC 4.2mA 77% 42mA 21.6V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN01N-15 converter 34mA 1W 2 outputs -40 to +90°C range
Mean Well DETN01N-15 converter 34mA 1W 2 outputs -40 to +90°C range
Extended range
Order code: 05-0327
MPN: DETN01N-15

1 available to back orderBack-order availability date - 14/01/2026
1+ £4.17
Price per unit Ex VAT 		26.4V DC 3.4mA 78% 34mA 21.6V DC +90°C 1W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02L-05 DC/DC converter 2W 200mA 2 outputs 1pc
Mean Well DETN02L-05 DC/DC converter 2W 200mA 2 outputs 1pc
Extended range
Order code: 05-0328
MPN: DETN02L-05

2 available to back orderBack-order availability date - 14/01/2026
1+ £5.58
Price per unit Ex VAT 		5.5V DC 20mA 78% 200mA 4.5V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02L-12 DC/DC converter 2W dual output 84mA 1pc
Mean Well DETN02L-12 DC/DC converter 2W dual output 84mA 1pc
Extended range
Order code: 05-0329
MPN: DETN02L-12

2 available to back orderBack-order availability date - 14/01/2026
1+ £3.73
Price per unit Ex VAT 		5.5V DC 8mA 80% 84mA 4.5V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02L-15 DC/DC converter 2 W 67 mA 2 outputs 1 pc
Mean Well DETN02L-15 DC/DC converter 2 W 67 mA 2 outputs 1 pc
Extended range
Order code: 05-0331
MPN: DETN02L-15

5 available to back orderBack-order availability date - 14/01/2026
1+ £4.87
Price per unit Ex VAT 		5.5V DC 6mA 81% 67mA 4.5V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02M-05 DC/DC converter 2W 200mA dual output 1 piece
Mean Well DETN02M-05 DC/DC converter 2W 200mA dual output 1 piece
Extended range
Order code: 05-0332
MPN: DETN02M-05

6 available to back orderBack-order availability date - 14/01/2026
1+ £4.87
Price per unit Ex VAT 		13.2V DC 20mA 80% 200mA 10.8V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02M-12 Converter 2W 84mA 2 Outputs DC/DC Module 1pc
Mean Well DETN02M-12 Converter 2W 84mA 2 Outputs DC/DC Module 1pc
Standard range
Order code: 05-0333
MPN: DETN02M-12

Available to back orderBack-order availability date - 31/12/2025
1+ £6.74
Price per unit Ex VAT 		13.2V DC 8mA 82% 84mA 10.8V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02M-15 DC/DC converter 67mA 2W 2 outputs 1 piece
Mean Well DETN02M-15 DC/DC converter 67mA 2W 2 outputs 1 piece
Extended range
Order code: 05-0334
MPN: DETN02M-15

1 available to back orderBack-order availability date - 14/01/2026
1+ £3.95
Price per unit Ex VAT 		13.2V DC 6mA 83% 67mA 10.8V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02N-05 DC/DC converter 200 mA 2W 2 outputs module
Mean Well DETN02N-05 DC/DC converter 200 mA 2W 2 outputs module
Extended range
Order code: 05-0336
MPN: DETN02N-05

5 available to back orderBack-order availability date - 14/01/2026
1+ £4.65
Price per unit Ex VAT 		26.4V DC 20mA 78% 200mA 21.6V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02N-12 DC/DC converter 84mA 2W 2 outputs 1pc
Mean Well DETN02N-12 DC/DC converter 84mA 2W 2 outputs 1pc
Standard range
Order code: 05-0337
MPN: DETN02N-12

Available to back orderBack-order availability date - 31/12/2025
1+ £7.68
Price per unit Ex VAT 		26.4V DC 4mA 80% 84mA 21.6V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
Mean Well DETN02N-15 DC/DC converter 67mA 2W 2 outputs 1pc
Mean Well DETN02N-15 DC/DC converter 67mA 2W 2 outputs 1pc
Extended range
Order code: 05-0338
MPN: DETN02N-15

60 available to back orderBack-order availability date - 14/01/2026
1+ £4.58
Price per unit Ex VAT 		26.4V DC 6mA 80% 67mA 21.6V DC +100°C 2W 2 Pins (L x W x H) 15.24 x 10.9 x 7.1 mm 7.1mm 3000V DC 15.24mm -40°C DC-to-DC converter DC/DC converter (module) 10.9mm
