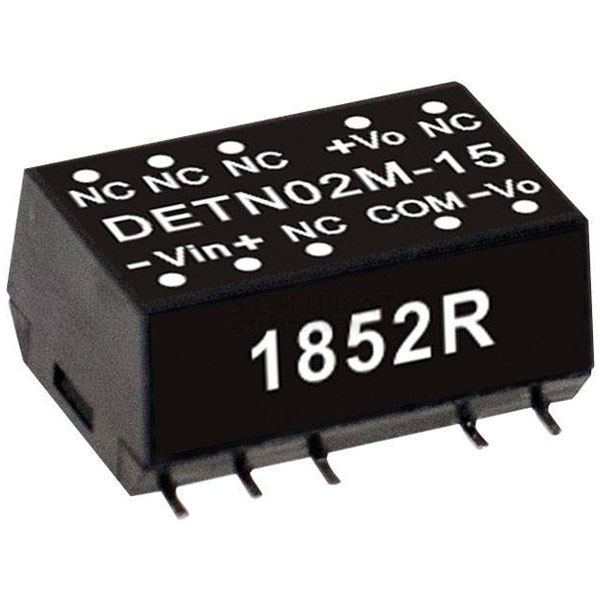

Mean Well DETN02M-15 DC/DC converter 67mA 2W 2 outputs 1 piece

Mean Well
Standard range
Order Code:

05-0334

Brand: Mean Well MPN: DETN02M-15
Qty Unit Price (Ex VAT)
1+ £4.76
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

The Mean Well DETN02M-15 is a DC/DC converter module with a power output of 2 W and a current rating of 67 mA. It features two outputs, making it suitable for dual-output applications including industrial control and telecommunications. This module is ideal for systems requiring isolated power conversion without illumination components.
Type DC/DC converter (module)
Connection Pins
Dim (L x W x H) 15.24 x 10.9 x 7.1 mm
Efficiency (max.) 83%
Height 7.1mm
Input voltage (max.) 13.2V DC
Insulation voltage 3000V DC
Length 15.24mm
Max. output current 67mA
Min. input voltage 10.8V DC
Misc Attribute DETN02M-15
No. of outputs 2
Operating temperature (max.) +100°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 67mA
Output current (min.) 6mA
Power 2W
PSU features DC-to-DC converter
Weight 1.2g
Width 10.9mm
