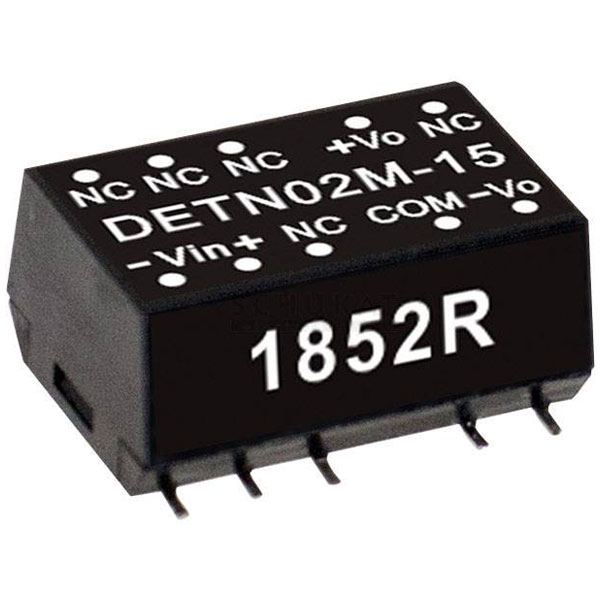

Mean Well DETN02N-15 DC/DC converter 67mA 2W 2 outputs 1pc

Mean Well
Order Code:

05-0338

Brand: Mean Well MPN: DETN02N-15 EAN-13: 4021087052672
Qty Unit Price (Ex VAT)
1+ £4.58
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
60 available to back orderBack-order availability date - 11/01/2026

The Mean Well DETN02N-15 is a DC/DC converter module designed to deliver 67 mA and 2 W with two output channels. It is suitable for applications requiring efficient power conversion, often used in industrial and electronic systems. This compact module provides reliable performance for stabilising and converting direct current in various circuits.
Input Voltage Range 26.4V DC
Output Current 6mA
Number of Outputs 2
Connection Pins
Dim (L x W x H) 15.24 x 10.9 x 7.1 mm
Efficiency (max.) 80%
Height 7.1mm
Insulation Voltage 3000V DC
Length 15.24mm
Max. output current 67mA
Min. input voltage 21.6V DC
Operating temperature (max.) +100°C
Operating temperature (min.) -40°C
Power 2W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 10.9mm
