Mean Well DETN01N-05 DC/DC converter 2 outputs 100mA 1W -40°C to 90°C

Mean Well
Order Code:

05-0324

Brand: Mean Well MPN: DETN01N-05 EAN-13: 4021087046787
Qty Unit Price (Ex VAT)
1+ £4.17
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
1 in stock, despatched in 4 working days

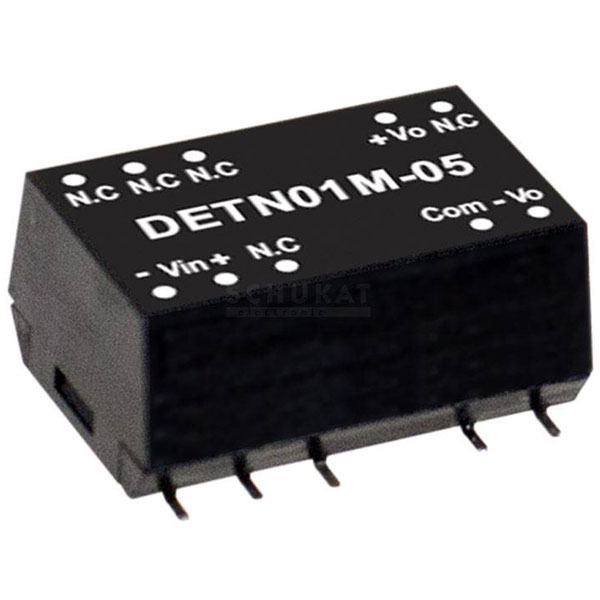

The Mean Well DETN01N-05 is a DC/DC converter module with two outputs, providing 100 mA and 1 W of power. Its compact design makes it ideal for applications requiring reliable voltage conversion in electronic circuits. Typical applications include powering small electronic devices and providing isolated power supply solutions.
Connection Pins
Dim (L x W x H) 15.24 x 10.9 x 7.1 mm
Efficiency (max.) 76%
Height 7.1mm
Input voltage (max.) 26.4V DC
Insulation Voltage 3000V DC
Length 15.24mm
Max. output current 100mA
Min. input voltage 21.6V DC
Number of Outputs 2
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 100mA
Output current (min.) 10mA
Power 1W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 10.9mm
