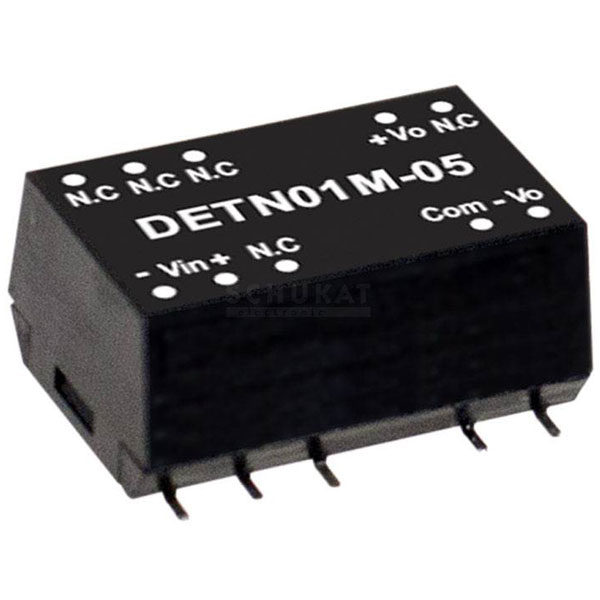

Mean Well DETN01M-05 DC/DC converter 1W 100mA dual output -40°C to 90°C

Mean Well
Order Code:

05-0321

Brand: Mean Well MPN: DETN01M-05 EAN-13: 4021087046817
Qty Unit Price (Ex VAT)
1+ £5.18
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Mean Well DETN01M-05 is a DC/DC converter module providing dual outputs with a current capacity of 100 mA and a power rating of 1 W. It is commonly used in electronic applications requiring reliable and efficient voltage conversion. Typical applications include powering microcontrollers and other low-power devices where isolation and regulation are needed.
Connection Pins
Dim (L x W x H) 15.24 x 10.9 x 7.1 mm
Efficiency (max.) 82%
Height 7.1mm
Input voltage (max.) 13.2V DC
Insulation Voltage 3000V DC
Length 15.24mm
Max. output current 100mA
Min. input voltage 10.8V DC
Number of Outputs 2
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 100mA
Output current (min.) 10mA
Power 1W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 10.9mm
