WAGO DIN Rail Mount Transfer module 630821

WAGO Brand: WAGO

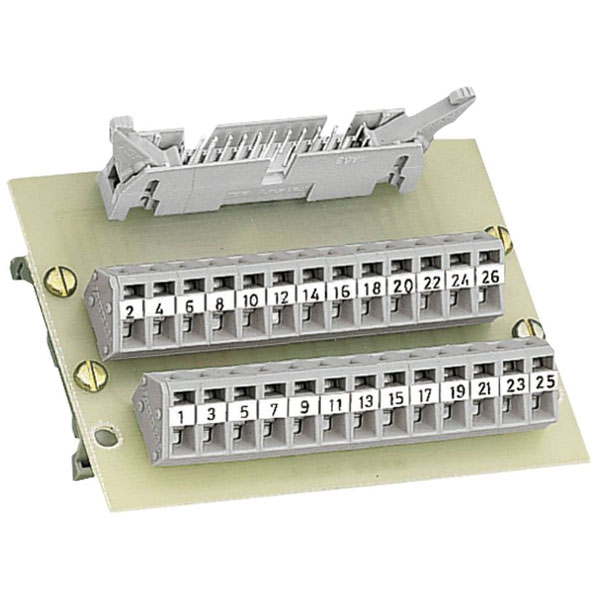

The WAGO interface modules are multi-pin connectors designed for use with a TS 35 base, compliant with DIN 41651 standards.
Description Image Product Buy Qty Pricing (Ex VAT) Width Depth Connector cross section Dim Height Material (details) Max. temperature Number of pins Operating current Misc Attribute Series Total no. of pins Suitable for Temperature range Type Connection max. cross section Min. cross section Min. temperature Operating voltage
WAGO 289-401 Interface Module Multi-Pin Connector DIN 41 651 TS 35 Base
WAGO 289-401 Interface Module Multi-Pin Connector DIN 41 651 TS 35 Base
Standard range
Order code: 13-4357
MPN: 289-401

7 in stock, despatched in 4 working days
1+ £30.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		41mm 63.5mm (W x H x D) 41 x 28 x 63.5 mm 28mm +55°C 10 1A CAGE CLAMP® Serie 236 10 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-405 Interface Module Multi-Pin Connector DIN 41 651 TS 35 Base
WAGO 289-405 Interface Module Multi-Pin Connector DIN 41 651 TS 35 Base
Standard range
Order code: 13-4358
MPN: 289-405

1 in stock, despatched in 4 working days
1+ £46.03
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		81mm 63.5mm (W x H x D) 81 x 28 x 63.5 mm 28mm +55°C 26 1A CAGE CLAMP® Serie 236 26 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-406 Interface Module Multi-Pin Connector for TS 35 DIN 41651
WAGO 289-406 Interface Module Multi-Pin Connector for TS 35 DIN 41651
Standard range
Order code: 13-4359
MPN: 289-406

3 in stock, despatched in 4 working days
1+ £47.78
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		102mm 63.5mm (W x H x D) 102 x 28 x 63.5 mm 28mm +55°C 34 1A CAGE CLAMP® Serie 236 34 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-501 Interface Module Multi-Pin Connector DIN 41 651 TS 35 Mount
WAGO 289-501 Interface Module Multi-Pin Connector DIN 41 651 TS 35 Mount
Standard range
Order code: 13-4360
MPN: 289-501

2 in stock, despatched in 4 working days
1+ £31.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		38mm 85mm (W x H x D) 38 x 36 x 85 mm 36mm +55°C 10 1A CAGE CLAMP® Serie 236 10 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-504 Interface Module Multi-Pin DIN 41651 TS 35 Mount.
WAGO 289-504 Interface Module Multi-Pin DIN 41651 TS 35 Mount.
Extended range
Order code: 13-4361
MPN: 289-504

Available to back orderBack order, lead time 6 weeks
1+ £44.36
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		53.5mm 85mm (W x H x D) 53.5 x 36 x 85 mm 36mm +55°C 20 1A CAGE CLAMP® Serie 236 20 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-506 Interface Module Multi-Pin Connector TS 35 Mounting
WAGO 289-506 Interface Module Multi-Pin Connector TS 35 Mounting
Standard range
Order code: 13-4362
MPN: 289-506

8 in stock, despatched in 4 working days
1+ £66.49
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		94mm 85mm (W x H x D) 94 x 36 x 85 mm 36mm +55°C 34 1A CAGE CLAMP® Serie 236 34 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-507 Interface Module Multi-pin Connector TS 35 Mounting Base
WAGO 289-507 Interface Module Multi-pin Connector TS 35 Mounting Base
Standard range
Order code: 13-4363
MPN: 289-507

2 in stock, despatched in 4 working days
1+ £72.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		114mm 85mm (W x H x D) 114 x 36 x 85 mm 36mm +55°C 40 1A CAGE CLAMP® Serie 236 40 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-540 Compact Connector 0.08-2.5mm² TS 35 Mount Vertical Plug
WAGO 289-540 Compact Connector 0.08-2.5mm² TS 35 Mount Vertical Plug
Extended range
Order code: 13-4364
MPN: 289-540

Available to back orderBack order, lead time 3 weeks
1+ £34.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		38mm 85mm 0.08 - 2.5mm² (W x H x D) 38 x 34 x 85 mm 34mm Connector contact: Au over 2 µm Ni +50°C 9 2A D-SUB header CAGE CLAMP® Serie 236 9 Mating connector (Cut & Clip) -20 - +50°C Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-551 Electrical Connector 0.08-2.5 mm² TS 35 Mounting
WAGO 289-551 Electrical Connector 0.08-2.5 mm² TS 35 Mounting
Standard range
Order code: 13-4365
MPN: 289-551

2 in stock, despatched in 4 working days
1+ £44.52
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		46mm 85mm 0.08 - 2.5mm² (W x H x D) 46 x 34 x 85 mm 34mm Connector contact: Au over 2 µm Ni +50°C 15 2A D-SUB header CAGE CLAMP® Serie 236 15 Mating connector (Cut & Clip) -20 - +50°C Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-611 Interface Module DIN 41 651 Fits Flat Band Cable TS 35
WAGO 289-611 Interface Module DIN 41 651 Fits Flat Band Cable TS 35
Standard range
Order code: 13-4366
MPN: 289-611

23 in stock, despatched in 4 working days
1+ £32.88
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		35mm 85mm (W x H x D) 35 x 48 x 85 mm 48mm +55°C 10 1A CAGE CLAMP® Serie 236 10 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-613 Interface Module for Flat Band Cable DIN 41 651 TS 35
WAGO 289-613 Interface Module for Flat Band Cable DIN 41 651 TS 35
Standard range
Order code: 13-4367
MPN: 289-613

16 in stock, despatched in 4 working days
1+ £39.25
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		45mm 85mm (W x H x D) 45 x 48 x 85 mm 48mm +55°C 16 1A CAGE CLAMP® Serie 236 16 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-615 Interface Module DIN 41 651 TS 35 Mounting Base 1 piece.
WAGO 289-615 Interface Module DIN 41 651 TS 35 Mounting Base 1 piece.
Standard range
Order code: 13-4368
MPN: 289-615

2 in stock, despatched in 4 working days
1+ £56.84
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		55mm 85mm (W x H x D) 55 x 62 x 85 mm 62mm +55°C 26 1A CAGE CLAMP® Serie 237 26 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-616 Interface Module for Flat Band Cable Fits TS 35 Rails
WAGO 289-616 Interface Module for Flat Band Cable Fits TS 35 Rails
Standard range
Order code: 13-4369
MPN: 289-616

2 in stock, despatched in 4 working days
1+ £70.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		65mm 85mm (W x H x D) 65 x 62 x 85 mm 62mm +55°C 34 1A CAGE CLAMP® Serie 237 34 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-617 Interface Module Flat Band Cable DIN 41 651 TS 35 Mounting
WAGO 289-617 Interface Module Flat Band Cable DIN 41 651 TS 35 Mounting
Standard range
Order code: 13-4370
MPN: 289-617

9 in stock, despatched in 4 working days
1+ £75.54
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		74mm 85mm (W x H x D) 74 x 62 x 85 mm 62mm +55°C 40 1A CAGE CLAMP® Serie 237 40 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
WAGO 289-618 Interface Module for Flat Band Cable DIN 41 651 TS 35 Mount
WAGO 289-618 Interface Module for Flat Band Cable DIN 41 651 TS 35 Mount
Standard range
Order code: 13-4371
MPN: 289-618

3 in stock, despatched in 4 working days
1+ £88.62
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		88mm 85mm (W x H x D) 88 x 62 x 85 mm 62mm +55°C 50 1A CAGE CLAMP® Serie 237 50 Transfer module Pull spring 2.5mm² 0.08mm² -20°C 125 V AC/DC
