WAGO 289-540 Compact Connector 0.08-2.5mm² TS 35 Mount Vertical Plug

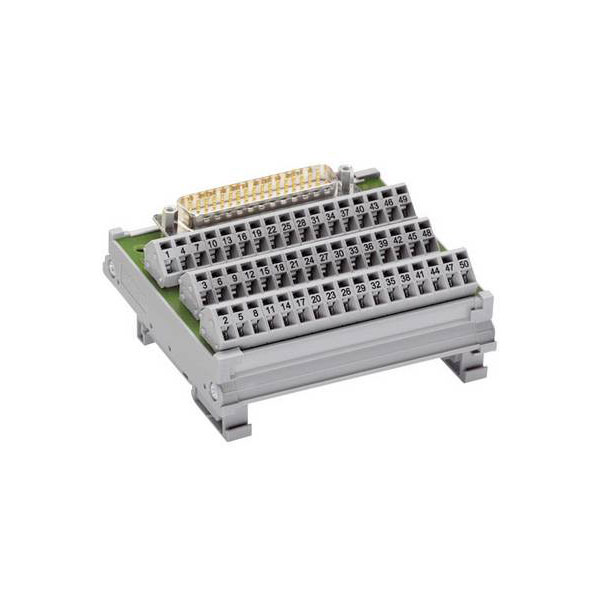

Image Representative of Range

WAGO 289-540 Compact Connector 0.08-2.5mm² TS 35 Mount Vertical Plug

WAGO
Standard range
Order Code:

13-4364

Brand: WAGO MPN: 289-540 EAN-13: 4064161264691
Qty Unit Price (Ex VAT)
1+ £34.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
4 in stock, despatched in 4 working days

WAGO manufactures the 289-540 transfer module, designed for wire sizes ranging from 0.08 to 2.5 mm². This component is known for its reliability and precision in electrical connections. It is typically used in industrial and automation systems for efficient and secure wire management.
Type Transfer module
Width 38mm
Connection Pull spring
Connector cross section 0.08 - 2.5mm²
Depth 85mm
Dim (W x H x D) 38 x 34 x 85 mm
Height 34mm
Material (details) Connector contact: Au over 2 µm Ni
max. cross section 2.5mm²
Max. temperature +50°C
Min. cross section 0.08mm²
Min. temperature -20°C
Misc Attribute D-SUB header
Number of pins 9
Operating current 2A
Operating voltage 125 V AC/DC
Series CAGE CLAMP® Serie 236
Suitable for Mating connector (Cut & Clip)
Temperature range -20 - +50°C
Total no. of pins 9
