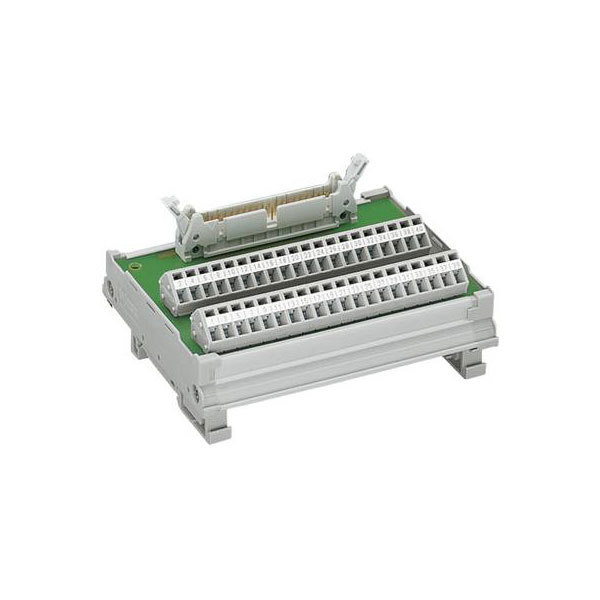

WAGO 289-504 Interface Module Multi-Pin DIN 41651 TS 35 Mount.

The WAGO 289-504 interface module features a multi-pin connector designed for efficient signal transfer. Manufactured by WAGO, this transfer module is ideal for use in automation and control applications. It ensures reliable connectivity in various industrial systems.

Type	Transfer module
Termination	DIN 41651, Cage Clamp
No of Ways	20
Wire Gauge	4mm²
Category	Interface Modules and System Wiring
Connection	Pull spring
Depth	85mm
Dim	(W x H x D) 53.5 x 36 x 85 mm
Height	36mm
Height inch	3.346inches
Height mm	85mm
max. cross section	2.5mm²
Max. temperature	+55°C
Min. cross section	0.08mm²
Min. temperature	-20°C
Number of Pins	20
Operating Current	1A
Operating Voltage	125 V AC/DC
Product Main Function	Interface module
Series	CAGE CLAMP® Serie 236
Unit Weight	KGM
Weight	61.900g
Width	53.5mm
Width inch	2.106inches
Width mm	53.5mm
