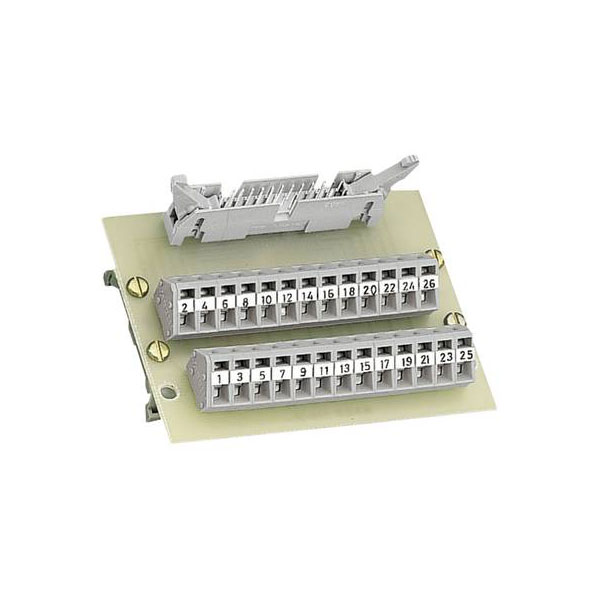

WAGO 289-406 Interface Module Multi-Pin Connector for TS 35 DIN 41651

The WAGO 289-406 transfer module features a multi-pin connector for efficient signal transfer. This interface module is used in industrial automation for connecting control units. Its robust design ensures reliable performance in various engineering applications.

Type	Transfer module
Termination	DIN 41651, Cage Clamp
No of Ways	34
Wire Gauge	4mm²
Category	Interface Modules and System Wiring
Connection	Pull spring
Depth	63.5mm
Dim	(W x H x D) 102 x 28 x 63.5 mm
Height	28mm
Height inch	2.5inches
Height mm	63.5mm
max. cross section	2.5mm²
Max. temperature	+55°C
Min. cross section	0.08mm²
Min. temperature	-20°C
Number of Pins	34
Operating Current	1A
Operating Voltage	125 V AC/DC
Product Main Function	Interface module
Series	CAGE CLAMP® Serie 236
Unit Weight	KGM
Weight	61.800g
Width	102mm
Width inch	4.016inches
Width mm	102mm
