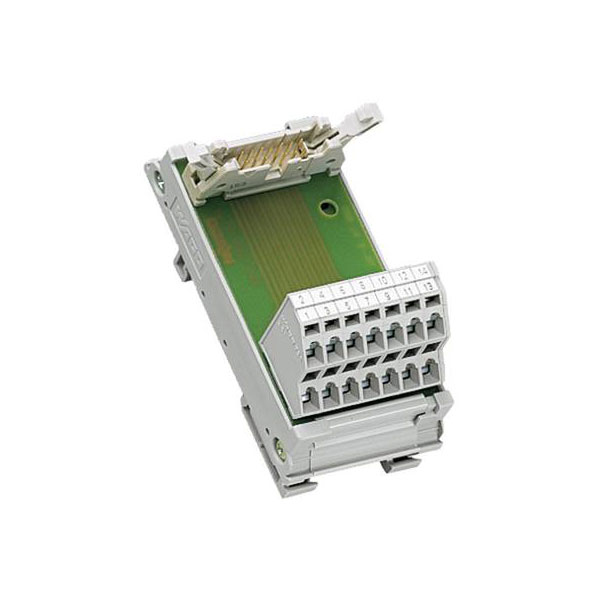

WAGO 289-613 Interface Module for Flat Band Cable DIN 41 651 TS 35

WAGO's 289-613 interface module is designed for flat band cable plugs and comes as a single piece. It serves as a transfer module, facilitating efficient data and power transfer across systems. Typically used in industrial automation, it ensures reliable connectivity between components.

Type	Transfer module
Termination	Plugable/ Cage Clamp
No of Ways	16
Wire Gauge	4mm²
Category	Interface Modules and System Wiring
Connection	Pull spring
Depth	85mm
Dim	(W x H x D) 45 x 48 x 85 mm
Height	48mm
Height inch	3.346inches
Height mm	85mm
max. cross section	2.5mm²
Max. temperature	+55°C
Min. cross section	0.08mm²
Min. temperature	-20°C
Number of Pins	16
Operating Current	1A
Operating Voltage	125 V AC/DC
Product Main Function	Interface module
Series	CAGE CLAMP® Serie 236
Unit Weight	KGM
Weight	58.728g
Width	45mm
Width inch	1.772inches
Width mm	45mm
