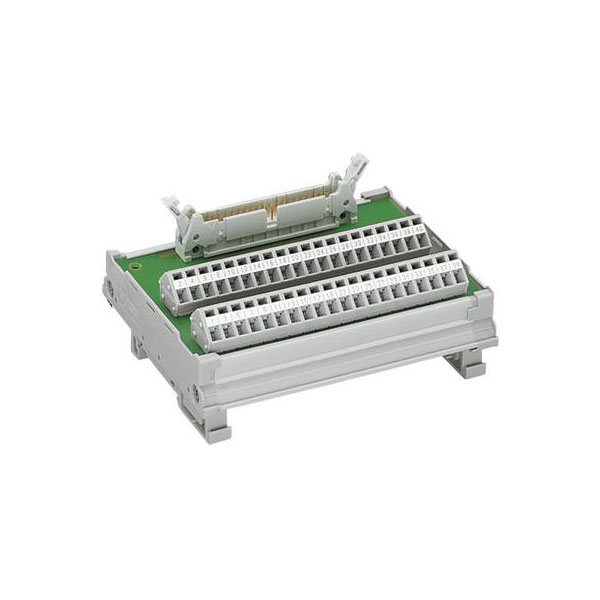

WAGO 289-507 Interface Module Multi-pin Connector TS 35 Mounting Base

The WAGO 289-507 is an interface module with a multi-pin connector designed for efficient signal transfer in electrical systems. It serves as a transfer module ideal for connecting control cabinets to other components. Typical applications include industrial automation and process control environments.

Type	Transfer module
Termination	DIN 41651, Cage Clamp
No of Ways	40
Wire Gauge	4mm²
Category	Interface Modules and System Wiring
Connection	Pull spring
Depth	85mm
Dim	(W x H x D) 114 x 36 x 85 mm
Height	36mm
Height inch	3.346inches
Height mm	85mm
max. cross section	2.5mm²
Max. temperature	+55°C
Min. cross section	0.08mm²
Min. temperature	-20°C
Number of Pins	40
Operating Current	1A
Operating Voltage	125 V AC/DC
Product Main Function	Interface module
Series	CAGE CLAMP® Serie 236
Unit Weight	KGM
Weight	92.066g
Width	114mm
Width inch	4.488inches
Width mm	114mm
