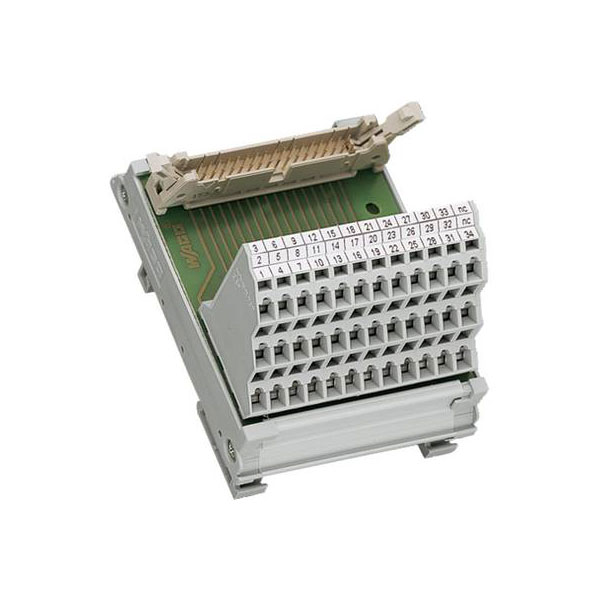

WAGO 289-617 Interface Module Flat Band Cable DIN 41 651 TS 35 Mounting

WAGO 289-617 is an interface module designed for flat band cable plugs. It serves as a transfer module for seamless connectivity in industrial automation systems. This product is typically used to facilitate communication between various control and signal systems.

Type	Transfer module
Termination	Plugable/ Cage Clamp
No of Ways	40
Wire Gauge	4mm²
Category	Interface Modules and System Wiring
Connection	Pull spring
Depth	85mm
Dim	(W x H x D) 74 x 62 x 85 mm
Height	62mm
Height inch	3.346inches
Height mm	85mm
max. cross section	2.5mm²
Max. temperature	+55°C
Min. cross section	0.08mm²
Min. temperature	-20°C
Number of Pins	40
Operating Current	1A
Operating Voltage	125 V AC/DC
Product Main Function	Interface module
Series	CAGE CLAMP® Serie 237
Unit Weight	KGM
Weight	114.000g
Width	74mm
Width inch	2.913inches
Width mm	74mm
