Mean Well DC-DC converters DC/DC converter (module) 608139

Mean Well Brand: Mean Well
The Mean Well MDS01L series consists of compact and efficient medical-grade DC/DC converters designed for various power applications, offering a single output and ensuring reliable performance in professional medical environments.
Description Image Product Buy Pricing (Ex VAT) Efficiency (max.) Input voltage (max.) Max. output current Min. input voltage Output current (max.) - rounded Output current (min.) Output voltage (max.) Power Connection Dim Height Length Number of Outputs Operating temperature (max.) Operating temperature (min.) PSU features Type Width
Mean Well MDS01L-03 dc/dc converter 303mA 1W 1 output medical-grade
Mean Well MDS01L-03 dc/dc converter 303mA 1W 1 output medical-grade
Standard range
Order code: 05-1128
MPN: MDS01L-03

Available to back orderBack-order availability date - 15/12/2025
1+ £6.16
Price per unit Ex VAT 		73% 5.5V DC 303mA 4.5V DC 303mA 31mA 3.3V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01L-05 DC/DC converter 200mA 1W 1 output 1pc - medical use
Mean Well MDS01L-05 DC/DC converter 200mA 1W 1 output 1pc - medical use
Standard range
Order code: 05-1129
MPN: MDS01L-05

Available to back orderBack-order availability date - 15/12/2025
1+ £5.91
Price per unit Ex VAT 		78% 5.5V DC 200mA 4.5V DC 200mA 20mA 5V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01L-12 DC/DC converter 84mA 1W 1 output SIP standard 1pc
Mean Well MDS01L-12 DC/DC converter 84mA 1W 1 output SIP standard 1pc
Standard range
Order code: 05-1130
MPN: MDS01L-12

Available to back orderBack-order availability date - 15/12/2025
1+ £6.61
Price per unit Ex VAT 		77% 5.5V DC 84mA 4.5V DC 84mA 9mA 12V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01L-15 MDS01 DC/DC converter 67 mA 1 W -40 to 85°C
Mean Well MDS01L-15 MDS01 DC/DC converter 67 mA 1 W -40 to 85°C
Standard range
Order code: 05-1131
MPN: MDS01L-15

Available to back orderBack-order availability date - 15/12/2025
1+ £5.74
Price per unit Ex VAT 		75% 5.5V DC 67mA 4.5V DC 67mA 7mA 15V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01M-05 MDS01 DC/DC converter 1 W 200 mA 1 output med compliant
Mean Well MDS01M-05 MDS01 DC/DC converter 1 W 200 mA 1 output med compliant
Standard range
Order code: 05-1132
MPN: MDS01M-05

Available to back orderBack-order availability date - 15/12/2025
1+ £5.77
Price per unit Ex VAT 		78% 13.2V DC 200mA 10.8V DC 200mA 20mA 5V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm

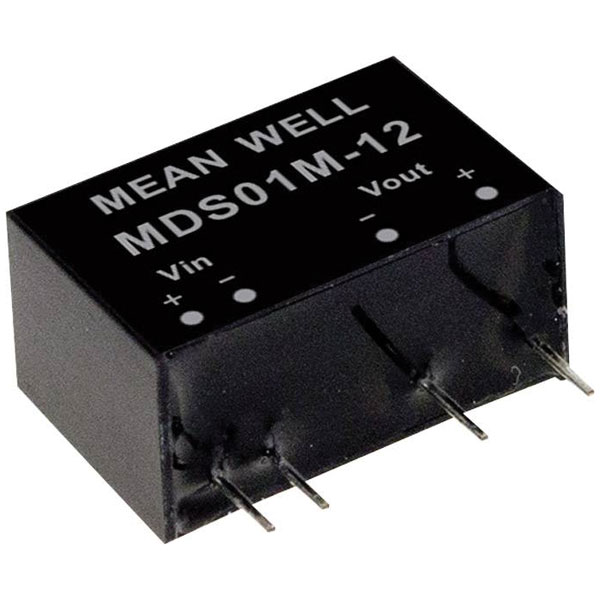

Mean Well MDS01M-12 DC/DC converter 1W 84mA 1 output medical use
Mean Well MDS01M-12 DC/DC converter 1W 84mA 1 output medical use
Standard range
Order code: 05-1133
MPN: MDS01M-12

12 in stock, despatched in 4 working days
1+ £5.16
Price per unit Ex VAT 		82% 13.2V DC 84mA 10.8V DC 84mA 9mA 12V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01M-15 MDS01 DC/DC converter 67mA 1W 1 output -40°C to 85°C
Mean Well MDS01M-15 MDS01 DC/DC converter 67mA 1W 1 output -40°C to 85°C
Standard range
Order code: 05-1134
MPN: MDS01M-15

Available to back orderBack-order availability date - 15/12/2025
1+ £6.05
Price per unit Ex VAT 		83% 13.2V DC 67mA 10.8V DC 67mA 7mA 15V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01N-05 MDS01 dc/dc converter 200mA 1W 1 output 1 pc
Mean Well MDS01N-05 MDS01 dc/dc converter 200mA 1W 1 output 1 pc
Standard range
Order code: 05-1135
MPN: MDS01N-05

Available to back orderBack-order availability date - 15/12/2025
1+ £6.84
Price per unit Ex VAT 		77% 26.4V DC 200mA 21.6V DC 200mA 20mA 5V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01N-12 DC/DC converter 84 mA 1 W 1 output medical-grade
Mean Well MDS01N-12 DC/DC converter 84 mA 1 W 1 output medical-grade
Standard range
Order code: 05-1136
MPN: MDS01N-12

Available to back orderBack-order availability date - 15/12/2025
1+ £5.86
Price per unit Ex VAT 		79% 26.4V DC 84mA 21.6V DC 84mA 9mA 12V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS01N-15 DC/DC converter 67mA 1W 1output 6kVDC insulation
Mean Well MDS01N-15 DC/DC converter 67mA 1W 1output 6kVDC insulation
Standard range
Order code: 05-1137
MPN: MDS01N-15

Available to back orderBack-order availability date - 15/12/2025
1+ £5.83
Price per unit Ex VAT 		79% 26.4V DC 67mA 21.6V DC 67mA 7mA 15V DC 1W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS02L-05 2W 400mA medical DC/DC converter 1 output -40 to 85°C
Mean Well MDS02L-05 2W 400mA medical DC/DC converter 1 output -40 to 85°C
Standard range
Order code: 05-1138
MPN: MDS02L-05

Available to back orderBack-order availability date - 15/12/2025
1+ £6.08
Price per unit Ex VAT 		77% 5.5V DC 400mA 4.5V DC 400mA 40mA 5V DC 2W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS02L-12 DC/DC converter 167mA 2W 1 output medical grade wide temp
Mean Well MDS02L-12 DC/DC converter 167mA 2W 1 output medical grade wide temp
Standard range
Order code: 05-1139
MPN: MDS02L-12

Available to back orderBack-order availability date - 15/12/2025
1+ £6.53
Price per unit Ex VAT 		80% 5.5V DC 167mA 4.5V DC 167mA 17mA 12V DC 2W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS02L-15 MDS DC/DC converter 133mA 2W 1 output 6KVDC insulation
Mean Well MDS02L-15 MDS DC/DC converter 133mA 2W 1 output 6KVDC insulation
Standard range
Order code: 05-1140
MPN: MDS02L-15

Available to back orderBack-order availability date - 15/12/2025
1+ £6.59
Price per unit Ex VAT 		79% 5.5V DC 133mA 4.5V DC 133mA 13mA 15V DC 2W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS02N-05 MDS DC/DC converter single output 400mA 2W
Mean Well MDS02N-05 MDS DC/DC converter single output 400mA 2W
Standard range
Order code: 05-1141
MPN: MDS02N-05

Available to back orderBack-order availability date - 15/12/2025
1+ £6.31
Price per unit Ex VAT 		80% 26.4V DC 400mA 21.6V DC 400mA 40mA 5V DC 2W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS02N-12 MDS DC/DC converter 167mA 2W 1 output 6KVDC insulation
Mean Well MDS02N-12 MDS DC/DC converter 167mA 2W 1 output 6KVDC insulation
Standard range
Order code: 05-1142
MPN: MDS02N-12

Available to back orderBack-order availability date - 15/12/2025
1+ £6.75
Price per unit Ex VAT 		83% 26.4V DC 167mA 21.6V DC 167mA 17mA 12V DC 2W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
Mean Well MDS02N-15 MDS Series DC/DC converter 2W 133mA 1 output
Mean Well MDS02N-15 MDS Series DC/DC converter 2W 133mA 1 output
Standard range
Order code: 05-1143
MPN: MDS02N-15

Available to back orderBack-order availability date - 15/12/2025
1+ £7.44
Price per unit Ex VAT 		85% 26.4V DC 133mA 21.6V DC 133mA 13mA 15V DC 2W Pins (L x W x H) 19.5 x 9.8 x 12.5 mm 12.5mm 19.5mm 1 +85°C -40°C DC-to-DC converter DC/DC converter (module) 9.8mm
