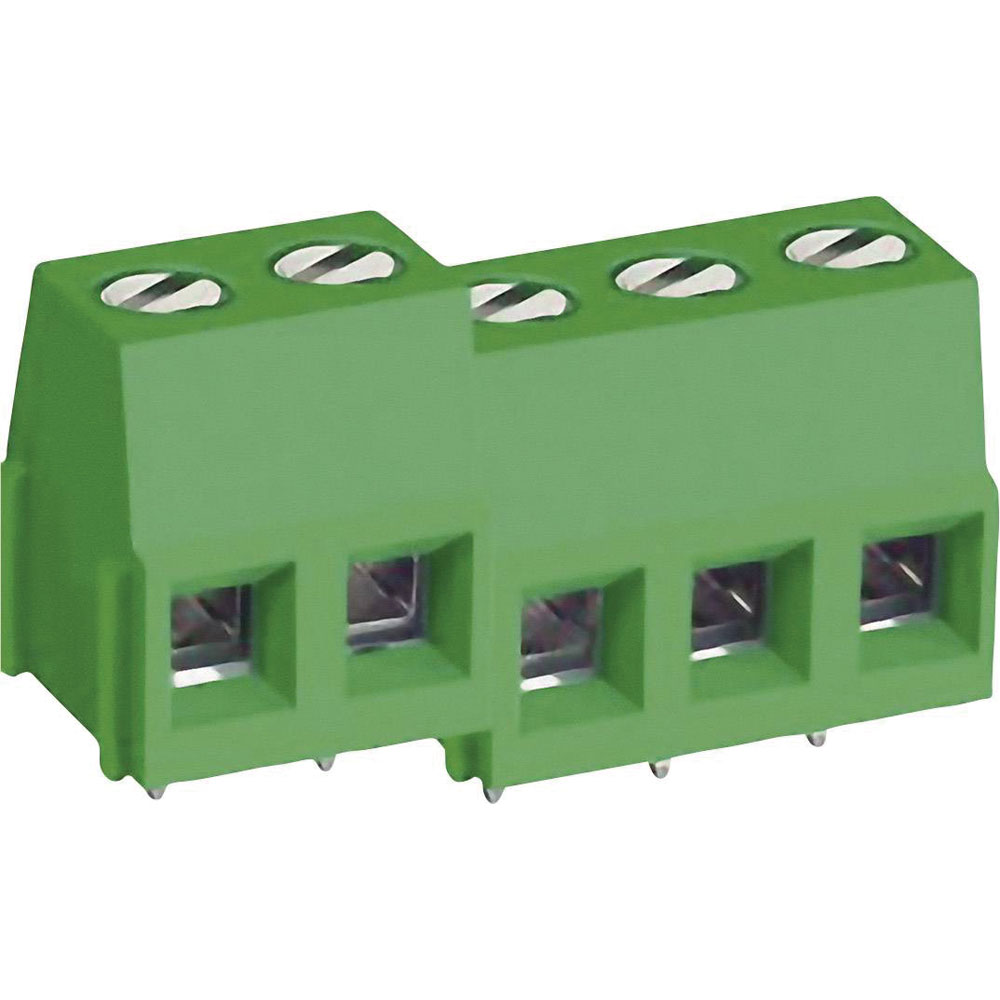

DECA PCB Mount Screw terminal 623821

Deca Brand: Deca
Deca screw terminals are versatile electrical components designed for secure wire connections, available in various configurations such as different pin numbers and accommodating wire sizes, all commonly finished in a green colour.
Description Image Product Buy Pricing (Ex VAT) Pitch No. of Ways Mounting Direction Wire Gauge (AWG) AWG (min.) Actuation direction Colour Contact Material Cross section (flexible) (max.) Cross section (flexible) (min.) Cross section (inflexible) (max.) Cross section (inflexible) (min.) CS Current Rating Enclosure material Factory colour Height Length Maximum Wire Size AWG Min. stripping length
Deca 1188442 Screw Terminal 3.30mm² 2 Pins Green 1 piece
Deca 1188442 Screw Terminal 3.30mm² 2 Pins Green 1 piece
Standard range
Order code: 08-8756
MPN: 1188442

Despatched within 4 working days - 3 in stock
10+ £0.458
Price per unit Ex VAT 		5.08mm 2 Horizontal 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 5mm 16A Green 10.10mm 10.00mm 12 4mm
Deca 1188443 Screw Terminal 3 Pins 3.30mm² Green 1 piece
Deca 1188443 Screw Terminal 3 Pins 3.30mm² Green 1 piece
Standard range
Order code: 08-8757
MPN: 1188443

Despatched within 4 working days - 479 in stock
10+ £0.537
Price per unit Ex VAT 		5.08mm 3 Horizontal 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 5mm 16A Green 12.60mm 10.20mm 12 4mm
Deca 1188444 Screw Terminal 3.30mm² 2 Pins Green 1piece
Deca 1188444 Screw Terminal 3.30mm² 2 Pins Green 1piece
Standard range
Order code: 08-8758
MPN: 1188444

Despatched within 4 working days - 226 in stock
20+ £0.358
Price per unit Ex VAT 		5.08mm 2 Horizontal 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 5.08mm 16A Green 10.10mm 10.00mm 12 4mm
Deca 1188445 Screw Terminal 3.30 mm² 3 Pins Green 1 piece
Deca 1188445 Screw Terminal 3.30 mm² 3 Pins Green 1 piece
Standard range
Order code: 08-8759
MPN: 1188445

Despatched within 4 working days - 1,647 in stock
10+ £0.438
Price per unit Ex VAT 		5.08mm 3 Horizontal 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 5.08mm 16A Green 12.60mm 10.20mm 12 4mm
Deca 1188448 Screw Terminal 3.30 mm² 2 Pins Green 1 piece
Deca 1188448 Screw Terminal 3.30 mm² 2 Pins Green 1 piece
Standard range
Order code: 08-8760
MPN: 1188448

Despatched within 4 working days - 730 in stock
10+ £0.418
Price per unit Ex VAT 		5.08mm 2 Vertical 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 7.62mm 16A Green 10.10mm 10.00mm 12 4mm
Deca 1188449 Screw Terminal 3.30mm² Pins:3 Green 1piece
Deca 1188449 Screw Terminal 3.30mm² Pins:3 Green 1piece
Standard range
Order code: 08-8761
MPN: 1188449

Despatched within 4 working days - 326 in stock
10+ £0.676
Price per unit Ex VAT 		5.08mm 3 Vertical 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 7.62mm 16A Green 12.60mm 10.20mm 12 4mm
Deca 1192188 Screw Terminal 1.31 mm² Black 2 Pins 1 Piece
Deca 1192188 Screw Terminal 1.31 mm² Black 2 Pins 1 Piece
Standard range
Order code: 08-8767
MPN: 1192188

Despatched within 4 working days - 963 in stock
10+ £0.477
Price per unit Ex VAT 		3.5mm 2 Horizontal 30 - 16 AWG 26 Green Brass tin plated 1.31mm² 0.16mm² 1.31mm² 0.16mm² 3.50mm 6A Polyamide 6.6 Black 7.00mm 7.00mm 16 4mm
Deca 1192189 Screw Terminal 1.31mm² 3 Pins Black 1piece
Deca 1192189 Screw Terminal 1.31mm² 3 Pins Black 1piece
Standard range
Order code: 08-8768
MPN: 1192189

Despatched within 4 working days - 351 in stock
10+ £0.716
Price per unit Ex VAT 		3.5mm 3 Horizontal 30 - 16 AWG 26 Green Brass tin plated 1.31mm² 0.16mm² 1.31mm² 0.16mm² 3.50mm 6A Polyamide 6.6 Black 10.50mm 7.00mm 16 4mm
Deca 1216197 Screw Terminal 1.50 mm² 3 Pins Blue 1 piece
Deca 1216197 Screw Terminal 1.50 mm² 3 Pins Blue 1 piece
Standard range
Order code: 08-8772
MPN: 1216197

Despatched within 4 working days - 2,700 in stock
20+ £0.318
Price per unit Ex VAT 		5mm 3 Horizontal 26 to 12AWG 26 Perpendicular (to the PCB) Blue 1.50mm² 1.50mm² 5mm 16A Polyamide 6.6 Blue 14.20mm 7.50mm 12 10mm
Deca 1216198 Screw Terminal 2-Pin 2.50mm² Blue 1piece
Deca 1216198 Screw Terminal 2-Pin 2.50mm² Blue 1piece
Standard range
Order code: 08-8773
MPN: 1216198

Despatched within 4 working days - 2,223 in stock
20+ £0.338
Price per unit Ex VAT 		5mm 2 Horizontal 26 - 14 AWG 22 Blue Brass tin plated 2.50mm² 0.13mm² 2.50mm² 0.13mm² 5mm 16A Polyamide 6.6 Blue 10.00mm 9.00mm 14 4mm
Deca 1216199 Series Screw Terminal 3 Pin 2.50 mm² Blue 1 piece
Deca 1216199 Series Screw Terminal 3 Pin 2.50 mm² Blue 1 piece
Standard range
Order code: 08-8774
MPN: 1216199

Despatched within 4 working days - 1,206 in stock
10+ £0.537
Price per unit Ex VAT 		5mm 3 Horizontal 26 - 14 AWG 22 Blue Brass tin plated 2.50mm² 0.13mm² 2.50mm² 0.13mm² 5mm 16A Polyamide 6.6 Blue 15.00mm 9.00mm 14 4mm
Deca 1267897 Screw Terminal 2.50 mm² 3 Pins Green 1 piece
Deca 1267897 Screw Terminal 2.50 mm² 3 Pins Green 1 piece
Standard range
Order code: 08-8790
MPN: 1267897

Despatched within 4 working days - 179 in stock
10+ £0.577
Price per unit Ex VAT 		5mm 3 At an angle (to the PCB) 26 to 12AWG 26 Green Brass tin plated 2.50mm² 0.13mm² 2.50mm² 0.13mm² 5mm 16A Polyamide 6.6 Green 15.00mm 13.30mm 12 4mm
Deca 1267898 Screw Terminal 2-Pin 2.50mm² Green 1 Piece
Deca 1267898 Screw Terminal 2-Pin 2.50mm² Green 1 Piece
Extended range
Order code: 08-8791
MPN: 1267898

Available to back orderBack order, lead time 8 weeks
10+ £0.696
Price per unit Ex VAT 		5mm 2 At an angle (to the PCB) 26 to 12AWG 26 Green Brass tin plated 2.50mm² 0.13mm² 2.50mm² 0.13mm² 5.08mm 16A Polyamide 6.6 Green 13.30mm 10.16mm 12 4mm
Deca 1267899 Screw Terminal 3-Pin 2.50mm² Green 1 piece
Deca 1267899 Screw Terminal 3-Pin 2.50mm² Green 1 piece
Standard range
Order code: 08-8792
MPN: 1267899

Despatched within 4 working days - 56 in stock
5+ £0.875
Price per unit Ex VAT 		5mm 3 At an angle (to the PCB) 26 to 12AWG 26 Green Brass tin plated 2.50mm² 0.13mm² 2.50mm² 0.13mm² 5.08mm 16A Polyamide 6.6 Green 15.24mm 13.30mm 12 4mm
Deca 1267904 Screw Terminal 3.30mm² 2 Pins Green 1 Piece
Deca 1267904 Screw Terminal 3.30mm² 2 Pins Green 1 Piece
Standard range
Order code: 08-8793
MPN: 1267904

Despatched within 4 working days - 570 in stock
20+ £0.358
Price per unit Ex VAT 		5mm 2 At an angle (to the PCB) 26 to 12AWG 26 Green Brass tin plated 3.30mm² 0.13mm² 3.30mm² 0.13mm² 5mm 16A Green 12 4mm
Deca 1282826 Screw Terminal 1.50 mm² 2 Pins Blue 1 piece
Deca 1282826 Screw Terminal 1.50 mm² 2 Pins Blue 1 piece
Standard range
Order code: 08-8795
MPN: 1282826

Despatched within 4 working days - 7,908 in stock
20+ £0.358
Price per unit Ex VAT 		5mm 2 Horizontal 26 to 12AWG 26 Perpendicular (to the PCB) Blue 1.50mm² 1.50mm² 5mm 16A Polyamide 6.6 Blue 10.00mm 7.50mm 12 10mm
