Cimco Circular Contacts Pin terminal 629671

Cimco Brand: Cimco
Cimco manufactures a range of partially insulated pin terminals designed to accommodate various wire sizes, providing reliable electrical connections for different applications.
Description Image Product Buy Qty Pricing (Ex VAT) Crimp area (max.) Cross section Cross-section range Factory colour Insulation Insulation type Insulation material Manufacturer part # max. cross section Min. cross section Misc Attribute Pin length Pin Ø Width Temperature range Type Contact material Material (details) RoHS-compliant Support sleeve

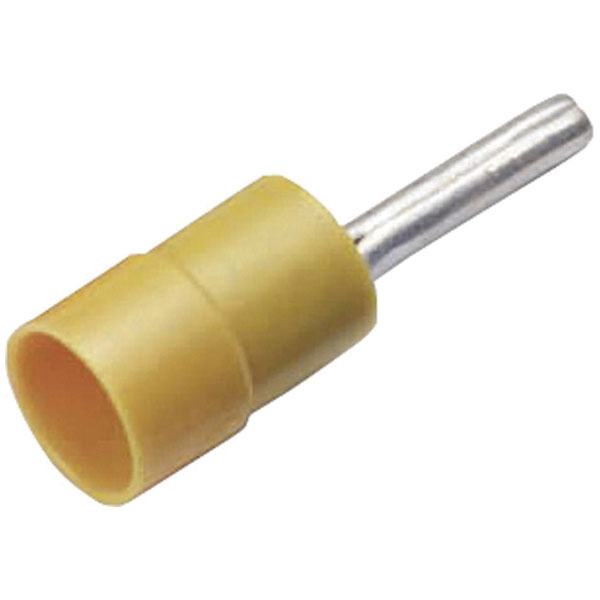

Cimco 180220 Pin Terminal Partially Insulated Yellow 0.10-0.40mm²
Cimco 180220 Pin Terminal Partially Insulated Yellow 0.10-0.40mm²
Standard range
Order code: 11-5930
MPN: 180220

170 in stock, despatched in 4 working days
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		0.40mm² 0,1 - 0,4mm² 0.10 - 0.40 mm² Yellow PA (polyamide, nylon), halogen free Partially insulated PA 180220 0.40mm² 0.10mm² 180220 9mm 1mm -60 - +105°C Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180222 Pin Terminal 0.50-1 mm² Partially Insulated Red
Cimco 180222 Pin Terminal 0.50-1 mm² Partially Insulated Red
Standard range
Order code: 11-5931
MPN: 180222

395 in stock, despatched in 4 working days
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		1mm² 0,5 - 1mm² 0.50 - 1 mm² Red PA (polyamide, nylon), halogen free Partially insulated PA 180222 1mm² 0.50mm² 180222 10mm 1.9mm -60 - +105°C Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180224 Pin Terminal 1.50-2.50mm² Partially Insulated Blue
Cimco 180224 Pin Terminal 1.50-2.50mm² Partially Insulated Blue
Standard range
Order code: 11-5932
MPN: 180224

332 in stock, despatched in 4 working days
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		2.50mm² 1,5 - 2,5mm² 1.50 - 2.50 mm² Blue PA (polyamide, nylon), halogen free Partially insulated PA 180224 2.50mm² 1.50mm² 180224 10mm 1.9mm -60 - +105°C Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180226 Pin Terminal 4/6 mm² Partially Insulated Yellow
Cimco 180226 Pin Terminal 4/6 mm² Partially Insulated Yellow
Standard range
Order code: 11-5933
MPN: 180226

62 in stock, despatched in 4 working days
1+ £0.178
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		6mm² 4 - 6mm² 4 - 6 mm² Yellow PA (polyamide, nylon), halogen free Partially insulated PA 180226 6mm² 4mm² 180226 11mm 2.7mm -60 - +105°C Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180227 Pin Terminal 10mm² Partially Insulated Red 1 piece
Cimco 180227 Pin Terminal 10mm² Partially Insulated Red 1 piece
Standard range
Order code: 11-5934
MPN: 180227

48 in stock, despatched in 4 working days
1+ £0.692
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		10mm² 10mm² 10 mm² (max) Red PA (polyamide, nylon), halogen free Partially insulated PA 180227 10mm² 180227 11mm 4.3mm -60 - +105°C Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180228 Pin Terminal 16mm² Partially Insulated Blue 1 piece
Cimco 180228 Pin Terminal 16mm² Partially Insulated Blue 1 piece
Standard range
Order code: 11-5935
MPN: 180228

159 in stock, despatched in 4 working days
1+ £0.751
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		16mm² 16mm² 16 mm² (max) Blue PA (polyamide, nylon), halogen free Partially insulated PA 180228 16mm² 180228 15mm 5.5mm -60 - +105°C Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180590 Pin Terminal Not Insulated Metal 0.50-1 mm² 1 piece
Cimco 180590 Pin Terminal Not Insulated Metal 0.50-1 mm² 1 piece
Standard range
Order code: 11-6043
MPN: 180590

155 in stock, despatched in 4 working days
1+ £0.119
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		1mm² 0.5 - 1mm² 0.50 - 1 mm² Metal Not insulated 180590 1mm² 0.50mm² 180590 10mm 1.8mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180592 Pin Terminal 1.50-2.50 mm² Metal Not Insulated
Cimco 180592 Pin Terminal 1.50-2.50 mm² Metal Not Insulated
Standard range
Order code: 11-6044
MPN: 180592

247 in stock, despatched in 4 working days
1+ £0.139
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		2.50mm² 1.5 - 2.5mm² 1.50 - 2.50 mm² Metal Not insulated 180592 2.50mm² 1.50mm² 180592 10mm 2.3mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180594 Pin Terminal 4mm²-6mm² Metal Not Insulated 1 piece
Cimco 180594 Pin Terminal 4mm²-6mm² Metal Not Insulated 1 piece
Standard range
Order code: 11-6045
MPN: 180594

75 in stock, despatched in 4 working days
1+ £0.222
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		6mm² 4 - 6mm² 4 - 6 mm² Metal Not insulated 180594 6mm² 4mm² 180594 11mm 3.4mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180600 Pin Terminal 10mm² Non-Insulated Metal Connector 1 piece
Cimco 180600 Pin Terminal 10mm² Non-Insulated Metal Connector 1 piece
Standard range
Order code: 11-6046
MPN: 180600

276 in stock, despatched in 4 working days
1+ £0.297
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		10mm² 10mm² 10 mm² (max) Metal Not insulated 180600 10mm² 180600 11mm 4.5mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180602 Pin Terminal 16 mm² Metal Non-Insulated DIN 46230 1 piece
Cimco 180602 Pin Terminal 16 mm² Metal Non-Insulated DIN 46230 1 piece
Standard range
Order code: 11-6047
MPN: 180602

366 in stock, despatched in 4 working days
1+ £0.356
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		16mm² 16mm² 16 mm² (max) Metal Not insulated 180602 16mm² 180602 15mm 6mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180604 Pin Terminal 25 mm² Metal Not Insulated 1 piece
Cimco 180604 Pin Terminal 25 mm² Metal Not Insulated 1 piece
Standard range
Order code: 11-6048
MPN: 180604

295 in stock, despatched in 4 working days
1+ £0.810
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		25mm² 25mm² 25 mm² (max) Metal Not insulated 180604 25mm² 180604 15mm 7mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180606 Pin Terminal 35mm² Not Insulated Metal 1 piece DIN 46230
Cimco 180606 Pin Terminal 35mm² Not Insulated Metal 1 piece DIN 46230
Standard range
Order code: 11-6049
MPN: 180606

189 in stock, despatched in 4 working days
1+ £1.03
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		35mm² 35mm² 35 mm² (max) Metal Not insulated 180606 35mm² 180606 20mm 8mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180608 Pin Terminal 50 mm² Metal Pin-Type Connector DIN 46230
Cimco 180608 Pin Terminal 50 mm² Metal Pin-Type Connector DIN 46230
Standard range
Order code: 11-6050
MPN: 180608

77 in stock, despatched in 4 working days
1+ £1.29
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		50mm² 50mm² 50 mm² (max) Metal Not insulated 180608 50mm² 180608 20mm 9.5mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
Cimco 180610 Pin Terminal Metal 70mm² Not Insulated DIN 46230 B Type
Cimco 180610 Pin Terminal Metal 70mm² Not Insulated DIN 46230 B Type
Standard range
Order code: 11-6051
MPN: 180610

97 in stock, despatched in 4 working days
1+ £1.77
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		70mm² 70mm² 70 mm² (max) Metal Not insulated 180610 70mm² 180610 23mm 11mm Pin terminal Cathode copper, tin plated Cu-ETP according to DIN EN 13600 Yes No
