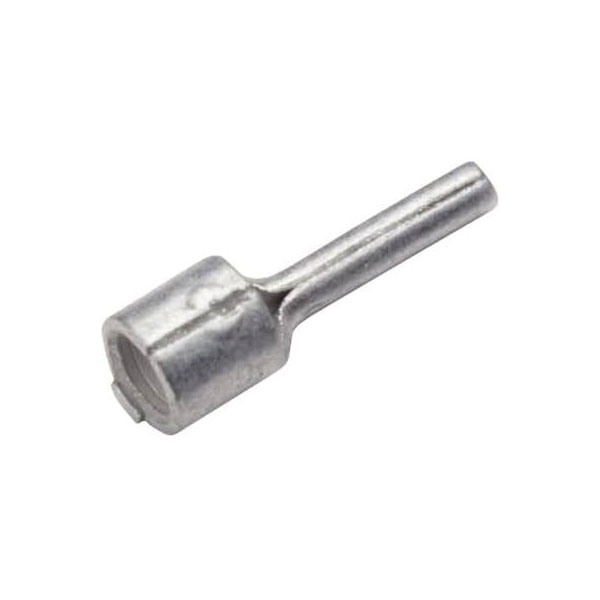

Cimco 180602 Pin Terminal 16 mm² Metal Non-Insulated DIN 46230 1 piece

The Cimco pin terminal is a 16 mm² metal crimp connector that is not insulated. Made by Cimco, it is designed for electrical connections needing a secure metal interface. It is typically used in applications where robust and reliable electrical connectivity is required.

Insulated	Uninsulated
Colour	Metal
Maximum Wire Size mm2	16mm²
Contact Material	Cathode copper, tin plated
Crimp area (max.)	16mm²
Cross Section	16mm²
Cross-section range	16 mm² (max)
Insulation Type	Not insulated
Material (details)	Cu-ETP according to DIN EN 13600
Pin Length	15mm
Product Type	Pin terminal
Support sleeve	No
Type	Pin terminal
Width	6mm
