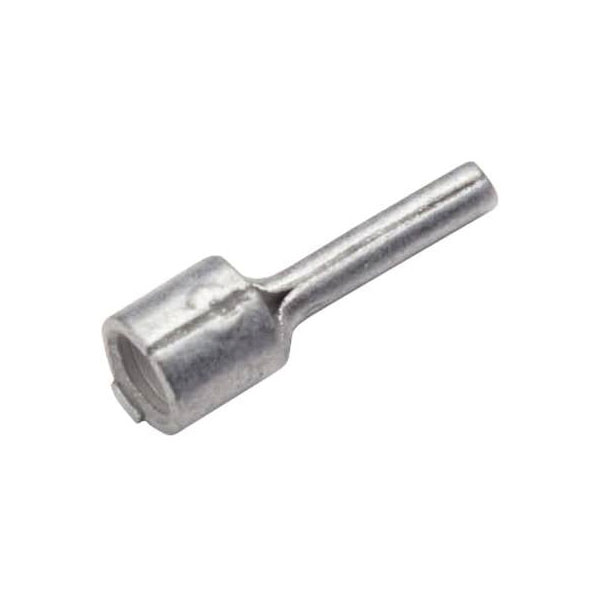

Cimco 180608 Pin Terminal 50 mm² Metal Pin-Type Connector DIN 46230

Cimco manufactures the 180608 pin terminal, designed to accommodate 50 mm² conductors. This metal crimp connector is not insulated, making it suitable for applications where insulation is not required. It's typically used in electrical installations to create reliable connections between cables and power supply devices.

Insulated	Uninsulated
Colour	Metal
Maximum Wire Size mm2	50mm²
Contact Material	Cathode copper, tin plated
Crimp area (max.)	50mm²
Cross Section	50mm²
Cross-section range	50 mm² (max)
Insulation Type	Not insulated
Material (details)	Cu-ETP according to DIN EN 13600
Pin Length	20mm
Product Type	Pin terminal
Support sleeve	No
Type	Pin terminal
Width	9.5mm
