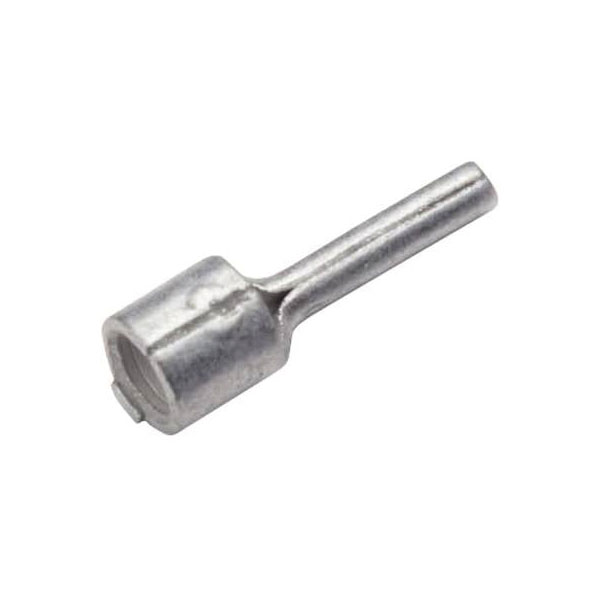

Cimco 180590 Pin Terminal Not Insulated Metal 0.50-1 mm² 1 piece

Cimco 180590 Pin Terminal Not Insulated Metal 0.50-1 mm² 1 piece

Cimco
Order Code:

11-6043

Brand: Cimco MPN: 180590 EAN-13: 2050001250353

Discontinued


The Cimco 180590 is a metal pin terminal designed for use with wire sizes from 0.50 mm² to 1 mm². This non-insulated crimp connector is ideal for secure electrical connections. It is commonly used in applications requiring reliable conductivity without insulation, such as automotive or industrial wiring projects.
Colour Metal
Pin Length 10mm
Maximum Wire Size mm2 1mm²
Contact Material Cathode copper, tin plated
Crimp area (max.) 1mm²
Cross Section 0.5 - 1mm²
Cross-section range 0.50 - 1 mm²
Insulation Type Not insulated
Material (details) Cu-ETP according to DIN EN 13600
Min. cross section 0.50mm²
Pin Ø 1.8mm
Support sleeve No
Type Pin terminal
