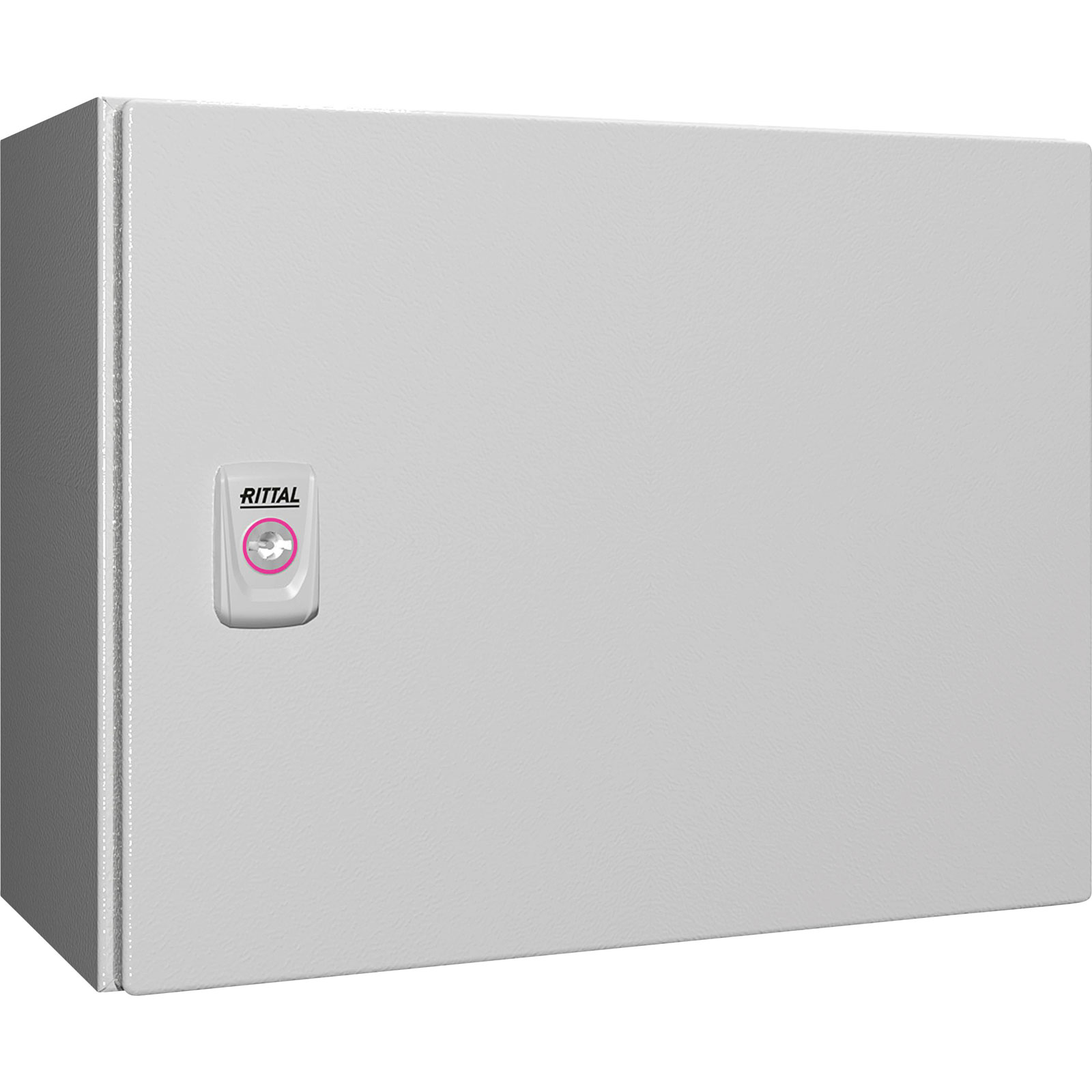

Rittal DIN Mount Enclosures Switchboard cabinet 615138

Rittal Brand: Rittal
The Rittal ax switchboard cabinets are a series of steel enclosures available in various dimensions and feature a grey-white finish, designed for housing electrical components securely.
Description Image Product Buy Pricing (Ex VAT) Enclosure Height Enclosure Length Enclosure Width Colour Protection Rating Dim IP Rating Misc Attribute 1 Misc Attribute Misc Attribute 2 Standards Rack size Type Material
Rittal 1031000 AX Switchboard Cabinet Steel 380x300x210mm Grey-white
Rittal 1031000 AX Switchboard Cabinet Steel 380x300x210mm Grey-white
Standard range
Order code: 06-4062
MPN: 1031000

Despatched within 4 working days - 35 in stock
1+ £78.07
Price per unit Ex VAT 		300mm 210mm 380mm Grey-white (RAL 7035) IP66 (W x H x D) 380 x 300 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1031.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1033000 AX Switchboard Cabinet 300x300x210mm Steel Grey-White
Rittal 1033000 AX Switchboard Cabinet 300x300x210mm Steel Grey-White
Standard range
Order code: 06-4063
MPN: 1033000

Despatched within 4 working days - 39 in stock
1+ £75.35
Price per unit Ex VAT 		300mm 210mm 300mm Grey-white (RAL 7035) IP66 (W x H x D) 300 x 300 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1033.000 UL, C-UL 483 mm (19") Switchboard cabinet Steel plate
Rittal 1034000 AX Switchboard Cabinet 300x400x210mm Steel RAL 7035
Rittal 1034000 AX Switchboard Cabinet 300x400x210mm Steel RAL 7035
Standard range
Order code: 06-4064
MPN: 1034000

Despatched within 4 working days - 42 in stock
1+ £82.12
Price per unit Ex VAT 		400mm 210mm 300mm Grey-white (RAL 7035) IP66 (W x H x D) 300 x 400 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1034.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1037000 AX Switchboard Cabinet Steel 400x800x300 Grey-white
Rittal 1037000 AX Switchboard Cabinet Steel 400x800x300 Grey-white
Extended range
Order code: 06-4065
MPN: 1037000

Back order - 15 availableBack-order availability date - 19/06/2026
1+ £193.64
Price per unit Ex VAT 		800mm 300mm 400mm Grey-white (RAL 7035) IP66 (W x H x D) 400 x 800 x 300 mm IP66 Single-door (arrester on right, can be changed to left) AX 1037.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1038000 AX Switchboard Cabinet Steel 380x600x210 Grey-white
Rittal 1038000 AX Switchboard Cabinet Steel 380x600x210 Grey-white
Extended range
Order code: 06-4066
MPN: 1038000

Back order - 42 availableBack-order availability date - 19/06/2026
1+ £99.05
Price per unit Ex VAT 		600mm 210mm 380mm Grey-white (RAL 7035) IP66 (W x H x D) 380 x 600 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1038.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1039000 AX Switchboard Cabinet 600x380x210 Steel RAL 7035
Rittal 1039000 AX Switchboard Cabinet 600x380x210 Steel RAL 7035
Extended range
Order code: 06-4067
MPN: 1039000

Back order - 12 availableBack-order availability date - 19/06/2026
1+ £110.84
Price per unit Ex VAT 		380mm 210mm 600mm Grey-white (RAL 7035) IP66 (W x H x D) 600 x 380 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1039.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1045000 AX Switchboard Cabinet Steel 400x500x210mm Grey-White
Rittal 1045000 AX Switchboard Cabinet Steel 400x500x210mm Grey-White
Extended range
Order code: 06-4068
MPN: 1045000

Back order - 36 availableBack-order availability date - 19/06/2026
1+ £97.07
Price per unit Ex VAT 		500mm 210mm 400mm Grey-white (RAL 7035) IP66 (W x H x D) 400 x 500 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1045.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1050000 AX Switchboard Cabinet 500x500x210 Steel Grey-White
Rittal 1050000 AX Switchboard Cabinet 500x500x210 Steel Grey-White
Extended range
Order code: 06-4069
MPN: 1050000

Back order - 16 availableBack-order availability date - 19/06/2026
1+ £118.77
Price per unit Ex VAT 		500mm 210mm 500mm Grey-white (RAL 7035) IP66 (W x H x D) 500 x 500 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1050.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1054000 AX Switchboard Cabinet 600x600x250mm Steel Grey-white
Rittal 1054000 AX Switchboard Cabinet 600x600x250mm Steel Grey-white
Extended range
Order code: 06-4070
MPN: 1054000

Back order - 20 availableBack-order availability date - 19/06/2026
1+ £168.17
Price per unit Ex VAT 		600mm 250mm 600mm Grey-white (RAL 7035) IP66 (W x H x D) 600 x 600 x 250 mm IP66 Single-door (arrester on right, can be changed to left) AX 1054.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1055000 AX Switchboard Cabinet 800x600x300mm Steel RAL 7035
Rittal 1055000 AX Switchboard Cabinet 800x600x300mm Steel RAL 7035
Extended range
Order code: 06-4071
MPN: 1055000

Back order - 5 availableBack-order availability date - 19/06/2026
1+ £234.42
Price per unit Ex VAT 		600mm 300mm 800mm Grey-white (RAL 7035) IP66 (W x H x D) 800 x 600 x 300 mm IP66 Single-door (arrester on right, can be changed to left) AX 1055.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1057000 AX Switchboard Cabinet 500x700x250mm Steel Grey-White
Rittal 1057000 AX Switchboard Cabinet 500x700x250mm Steel Grey-White
Extended range
Order code: 06-4072
MPN: 1057000

Back order - 23 availableBack-order availability date - 19/06/2026
1+ £169.59
Price per unit Ex VAT 		700mm 250mm 500mm Grey-white (RAL 7035) IP66 (W x H x D) 500 x 700 x 250 mm IP66 Single-door (arrester on right, can be changed to left) AX 1057.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1058000 AX Switchboard Cabinet 600x800x250 Steel Grey-white
Rittal 1058000 AX Switchboard Cabinet 600x800x250 Steel Grey-white
Extended range
Order code: 06-4073
MPN: 1058000

Back order - 9 availableBack-order availability date - 19/06/2026
1+ £204.29
Price per unit Ex VAT 		800mm 250mm 600mm Grey-white (RAL 7035) IP66 (W x H x D) 600 x 800 x 250 mm IP66 Single-door (arrester on right, can be changed to left) AX 1058.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1059000 AX Switchboard Cabinet 600x800x400mm Steel Light Grey
Rittal 1059000 AX Switchboard Cabinet 600x800x400mm Steel Light Grey
Extended range
Order code: 06-4074
MPN: 1059000

Back order - 4 availableBack-order availability date - 19/06/2026
1+ £263.65
Price per unit Ex VAT 		800mm 400mm 600mm Light grey IP66 (W x H x D) 600 x 800 x 400 mm IP66 AX 1059.000 Switchboard cabinet Steel plate
Rittal 1060000 AX Steel Switchboard Cabinet 600x600x210mm RAL7035
Rittal 1060000 AX Steel Switchboard Cabinet 600x600x210mm RAL7035
Extended range
Order code: 06-4075
MPN: 1060000

Back order - 15 availableBack-order availability date - 19/06/2026
1+ £133.12
Price per unit Ex VAT 		600mm 210mm 600mm Grey-white (RAL 7035) IP66 (W x H x D) 600 x 600 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1060.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1073000 AX Switchboard Cabinet 760x760x300mm Steel Grey-white
Rittal 1073000 AX Switchboard Cabinet 760x760x300mm Steel Grey-white
Extended range
Order code: 06-4076
MPN: 1073000

Back order - 5 availableBack-order availability date - 19/06/2026
1+ £248.68
Price per unit Ex VAT 		760mm 300mm 760mm Grey-white (RAL 7035) IP66 (W x H x D) 760 x 760 x 300 mm IP66 Single-door (arrester on right, can be changed to left) AX 1073.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1076000 AX Switchboard Cabinet 600x760x210mm Steel Grey-White
Rittal 1076000 AX Switchboard Cabinet 600x760x210mm Steel Grey-White
Extended range
Order code: 06-4077
MPN: 1076000

Back order - 11 availableBack-order availability date - 19/06/2026
1+ £161.68
Price per unit Ex VAT 		760mm 210mm 600mm Grey-white (RAL 7035) IP66 (W x H x D) 600 x 760 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1076.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1077000 AX Switchboard Cabinet 760x760x210mm Steel Grey-white
Rittal 1077000 AX Switchboard Cabinet 760x760x210mm Steel Grey-white
Extended range
Order code: 06-4078
MPN: 1077000

Back order - 2 availableBack-order availability date - 19/06/2026
1+ £212.09
Price per unit Ex VAT 		760mm 210mm 760mm Grey-white (RAL 7035) IP66 (W x H x D) 760 x 760 x 210 mm IP66 Single-door (arrester on right, can be changed to left) AX 1077.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1090000 AX Switchboard Cabinet Steel Grey-White RAL 7035
Rittal 1090000 AX Switchboard Cabinet Steel Grey-White RAL 7035
Extended range
Order code: 06-4079
MPN: 1090000

Back order - 5 availableBack-order availability date - 19/06/2026
1+ £230.20
Price per unit Ex VAT 		1m 250mm 600mm Grey-white (RAL 7035) IP66 (W x H x D) 600 x 1000 x 250 mm IP66 Single-door (arrester on right, can be changed to left) AX 1090.000 UL, C-UL Switchboard cabinet Steel plate
Rittal 1091000 AX Switchboard Cabinet Steel 600x1000x400 Grey-white
Rittal 1091000 AX Switchboard Cabinet Steel 600x1000x400 Grey-white
Extended range
Order code: 06-4080
MPN: 1091000

Back order - 1 availableBack-order availability date - 19/06/2026
1+ £319.39
Price per unit Ex VAT 		1m 400mm 600mm Grey-white (RAL 7035) IP55 (W x H x D) 600 x 1000 x 400 mm IP55 AX 1091.000 1-door UL, C-UL Switchboard cabinet Steel plate
