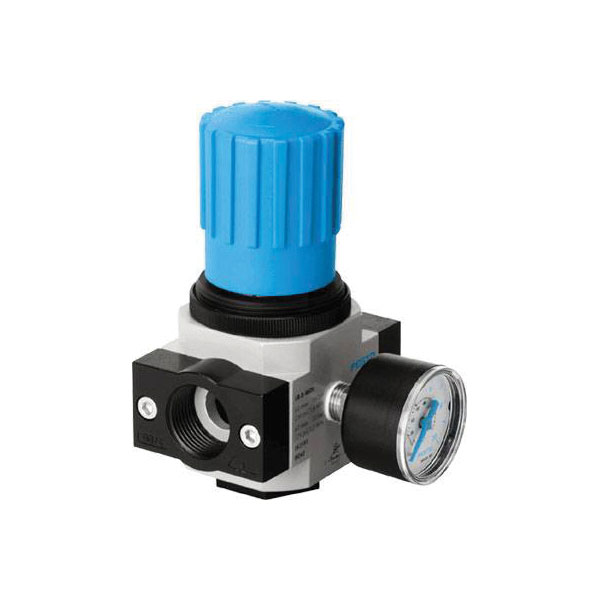

FESTO Force Controlled Valves Pressure regulator 612359

FESTO Brand: FESTO
FESTO produces a range of pressure regulators constructed from zinc with NBR seals, designed for various thread sizes and applications.
Description Image Product Buy Pricing (Ex VAT) Connection Maximum Working Pressure Operation Control pressure (max.) Control pressure (min.) Enclosure material Max. ambient temperature Max. flow Max. media temperature Media temperature (min.) Media temperature (range) Min. ambient temperature Misc Attribute Misc Attribute 1 Operating medium Misc Attribute 2 Operating pressure (min.) Size Type Sealant
FESTO 159581 MIDI Pressure regulator zinc NBR seal M5 thread
FESTO 159581 MIDI Pressure regulator zinc NBR seal M5 thread
Extended range
Order code: 03-2261
MPN: 159581

Available to back orderBack order, lead time 3 weeks
1+ £134.27
Price per unit Ex VAT 		G 1/2 16bar 12bar 0.5bar Zinc (die-cast) +60°C 3500l/min +60°C -10°C -10 up to +60 °C -10°C Pressure Control Valve LR-1/2-D-MIDI with pressure gauge, working pressure up to 12 bar. Size = Midi, Series= D, actuating protection = rotary knob with locking, mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases LR-1/2-D-MIDI 0bar Midi Pressure regulator NBR
FESTO 159624 LR-1/8-D-MINI pressure regulator zinc NBR seals
FESTO 159624 LR-1/8-D-MINI pressure regulator zinc NBR seals
Extended range
Order code: 03-2264
MPN: 159624

3 available to back orderBack-order availability date - 12/01/2026
1+ £66.54
Price per unit Ex VAT 		G 1/8 16bar 12bar 0.5bar Zinc (die-cast) +60°C 800l/min +60°C -10°C -10 up to +60 °C -10°C Pressure Control Valve LR-1/8-D-MINI with pressure gauge, working pressure up to 12 bar. Size = Mini, Series= D, actuating protection = rotary knob with locking, mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases LR-1/8-D-MINI 1bar Mini Pressure regulator NBR
FESTO 159625 LR-1/4-D-MINI pressure regulator zinc nbr sealing 1pc
FESTO 159625 LR-1/4-D-MINI pressure regulator zinc nbr sealing 1pc
Extended range
Order code: 03-2265
MPN: 159625

6 available to back orderBack-order availability date - 12/01/2026
1+ £85.61
Price per unit Ex VAT 		G 1/4 16bar 12bar 0.5bar Zinc (die-cast) +60°C 1500l/min +60°C -10°C -10 up to +60 °C -10°C Pressure Control Valve LR-1/4-D-MINI with pressure gauge, working pressure up to 12 bar. Size = Mini, Series= D, actuating protection = rotary knob with locking, mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 1bar Mini Pressure regulator NBR
FESTO 162583 LR-1/4-D-7-MINI Zinc Pressure Regulator M5 & R¼ Thread
FESTO 162583 LR-1/4-D-7-MINI Zinc Pressure Regulator M5 & R¼ Thread
Extended range
Order code: 03-2289
MPN: 162583

5 available to back orderBack-order availability date - 12/01/2026
1+ £74.99
Price per unit Ex VAT 		G 1/4 16bar 7bar 0.5bar Zinc (die-cast) +60°C 1600l/min +60°C -10°C -10 up to +60 °C -10°C Pressure Control Valve LR-1/4-D-7-MINI with pressure gauge, working pressure to 7 bar. Size = Mini, Series= D, actuating protection = rotary knob with locking, mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 1bar Mini Pressure regulator NBR
FESTO 186451 LR Pressure regulator zinc NBR thread M5 R¼ connection
FESTO 186451 LR Pressure regulator zinc NBR thread M5 R¼ connection
Extended range
Order code: 03-2514
MPN: 186451

2 available to back orderBack-order availability date - 12/01/2026
1+ £134.27
Price per unit Ex VAT 		G 1/4 16bar 12bar 0.5bar Zinc (die-cast) +60°C 2100l/min +60°C -10°C -10 up to +60 °C -10°C Pressure Control Valve LR-1/4-D-MIDI with pressure gauge, working pressure up to 12 bar. Size = Midi, Series= D, actuating protection = rotary knob with locking, mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases LR-1/4-D-MIDI 0bar Midi Pressure regulator NBR
FESTO 529415 MS4 Pressure regulator Aluminium Enclosure NBR Sealant
FESTO 529415 MS4 Pressure regulator Aluminium Enclosure NBR Sealant
Extended range
Order code: 03-2789
MPN: 529415

3 available to back orderBack-order availability date - 12/01/2026
1+ £40.91
Price per unit Ex VAT 		G 1/4 14bar manual Aluminium (die-cast) +60°C 2100l/min +60°C -10°C -10 up to +60 °C -10°C According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 0.8bar 4 Pressure regulator NBR
FESTO 529416 MS4 Pressure regulator Aluminium Enclosure NBR Sealant
FESTO 529416 MS4 Pressure regulator Aluminium Enclosure NBR Sealant
Extended range
Order code: 03-2790
MPN: 529416

Available to back orderBack order, lead time 3 weeks
1+ £45.62
Price per unit Ex VAT 		G 1/4 14bar 4bar 0.3bar Aluminium (die-cast) +60°C 2100l/min +60°C -10°C -10 up to +60 °C -10°C Pressure control valve MS4-LR-1/4-D5-AS-Z maximum output pressure 4 bar, with pressure gauge, lockable control head, flow direction from left to right. Size=4, series = MS, actuating protection = (* rotary knob with locking, * with accessories closable), mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 0.8bar 4 Pressure regulator NBR
FESTO 529417 MS4 Series pressure regulator aluminium NBR sealant
FESTO 529417 MS4 Series pressure regulator aluminium NBR sealant
Extended range
Order code: 03-2791
MPN: 529417

5 available to back orderBack-order availability date - 12/01/2026
1+ £40.91
Price per unit Ex VAT 		G 1/4 14bar manual Aluminium (die-cast) +60°C 1800l/min +60°C -10°C -10 up to +60 °C -10°C According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 0.8bar 4 Pressure regulator NBR
FESTO 529418 Pressure regulator Aluminium NBR sealant 1pc
FESTO 529418 Pressure regulator Aluminium NBR sealant 1pc
Extended range
Order code: 03-2792
MPN: 529418

Available to back order
1+ £49.29
Price per unit Ex VAT 		G 1/4 14bar 7bar 0.3bar Aluminium (die-cast) +60°C 1800l/min +60°C -10°C -10 up to +60 °C -10°C Pressure control valve MS4-LR-1/4-D6-AS-Z maximum output pressure of 7 bar, with pressure gauge, lockable control head, flow direction from left to right. Size=4, series = MS, actuating protection = (* rotary knob with locking, * with accessories closable), mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases MS4-LR-1/4-D6-AS-Z 0.8bar 4 Pressure regulator NBR
FESTO 529419 MS4 Pressure regulator aluminium die-cast NBR seal
FESTO 529419 MS4 Pressure regulator aluminium die-cast NBR seal
Extended range
Order code: 03-2793
MPN: 529419

7 available to back orderBack-order availability date - 12/01/2026
1+ £40.91
Price per unit Ex VAT 		G 1/4 14bar manual Aluminium (die-cast) +60°C 1700l/min +60°C -10°C -10 up to +60 °C -10°C According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 0.8bar 4 Pressure regulator NBR
FESTO 529423 MS4 Pressure regulator Alum. die-cast NBR sealant
FESTO 529423 MS4 Pressure regulator Alum. die-cast NBR sealant
Extended range
Order code: 03-2794
MPN: 529423

Available to back order
1+ £42.60
Price per unit Ex VAT 		G 1/8 14bar 7bar 0.3bar Aluminium (die-cast) +60°C 1150l/min +60°C -10°C -10 up to +60 °C -10°C Pressure control valve MS4-LR-1/8-D6-AS maximum output pressure of 7 bar, with pressure gauge, lockable control head, flow direction from left to right. Size=4, series = MS, actuating protection = (* rotary knob with locking, * with accessories closable), mounting position=any, constructive design = directly actuated diaphragm control valve According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases 0.8bar 4 Pressure regulator NBR
FESTO 537643 LR Pressure regulator PA NBR Thread M5 Plug Ø4-8mm
FESTO 537643 LR Pressure regulator PA NBR Thread M5 Plug Ø4-8mm
Extended range
Order code: 03-2850
MPN: 537643

3 available to back orderBack-order availability date - 12/01/2026
1+ £50.71
Price per unit Ex VAT 		G 1/4 10bar 7bar 0.5bar PA +50°C 1300l/min +50°C -5°C -5 up to +50 °C -5°C Pressure Control Valve LR-1/4-DB-7-O-MINI directly controlled regulator, working pressure up to 7 bar, no pressure gauge. Size = Mini, Width = 44 mm, series = DB, actuating protection = rotary knob with locking, mounting position=any According to ISO 8573-1:2010 compressed air [7:4:4] 1.5bar Mini Pressure regulator NBR
FESTO 539682 LR-1/4-DB-7-MINI pressure regulator PA NBR sealant
FESTO 539682 LR-1/4-DB-7-MINI pressure regulator PA NBR sealant
Extended range
Order code: 03-2854
MPN: 539682

Available to back orderBack order, lead time 3 weeks
1+ £55.30
Price per unit Ex VAT 		G 1/4 10bar 7bar 0.5bar PA +50°C 1300l/min +50°C -5°C -5 up to +50 °C -5°C Pressure Control Valve LR-1/4-DB-7 MINI directly controlled regulator, working pressure up to 7 bar, with pressure gauge. Size = Mini, Width = 44 mm, series = DB, actuating protection = rotary knob with locking, mounting position=any According to ISO 8573-1:2010 compressed air [7:4:4] 1.5bar Mini Pressure regulator NBR
FESTO 8086638 MS2 Pressure regulator NBR sealant 1pc
FESTO 8086638 MS2 Pressure regulator NBR sealant 1pc
Extended range
Order code: 03-3238
MPN: 8086638

19 available to back orderBack-order availability date - 12/01/2026
1+ £29.94
Price per unit Ex VAT 		MS2-LR-QS6-D6-AR-BAR-B 2 Pressure regulator NBR
