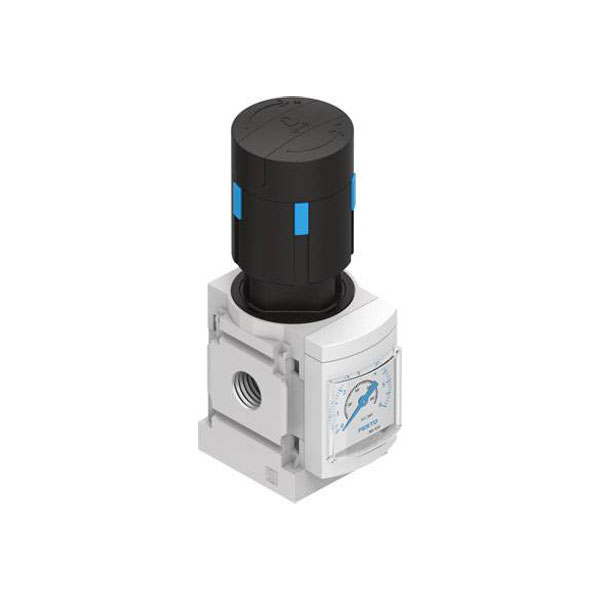

FESTO 529417 MS4 Series pressure regulator aluminium NBR sealant

The FESTO pressure regulator 529417 is a die-cast aluminium component featuring an NBR sealant designed for reliable pneumatic control. It is commonly used to regulate compressed air flow in automation systems for consistent performance. Typical applications include industrial machinery and automated systems requiring precise pressure regulation.

Type	Pressure regulator
Connection	G 1/4
Enclosure material	Aluminium (die-cast)
Max. ambient temperature	+60°C
Max. flow	1800l/min
Max. media temperature	+60°C
Maximum Working Pressure	14bar
Media temperature (min.)	-10°C
Media temperature (range)	-10 up to +60°C
Min. ambient temperature	-10°C
Operating medium	According to ISO 8573-1:2010 compressed air [7:4:4],, inert gases
Operating pressure (min.)	0.8bar
Operation	manual
Sealant	NBR
Size	4
Weight	225g
