Mean Well DC-DC converters DC/DC converter (module) 608134

Mean Well Brand: Mean Well
The Mean Well DPAN02A series consists of DC/DC converters characterised by dual outputs and high insulation capabilities, providing reliable power solutions for various electronic applications.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Input Voltage Range Output Current Efficiency (max.) Max. output current Minimum Input Volage Power Rating Connection Dim Height Insulation Voltage Length Maximum Operating Temperature Number of Outputs Operating temperature (min.) Power PSU features Type Weight Width
Mean Well DPAN02A-05 DC/DC converter 2W 200mA dual output 1500VDC insulation
Mean Well DPAN02A-05 DC/DC converter 2W 200mA dual output 1500VDC insulation
Standard range
Order code: 05-0370
MPN: DPAN02A-05

Despatched within 4 working days - 1 in stock
1+ £5.74
Price per unit Ex VAT 		5V DC 18V DC 200mA 79% 200mA 9V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02A-12 DC/DC converter 2W 2 outputs 1500V insulation
Mean Well DPAN02A-12 DC/DC converter 2W 2 outputs 1500V insulation
Standard range
Order code: 05-0371
MPN: DPAN02A-12

Available to back orderBack-order availability date - 01/07/2026
1+ £6.72
Price per unit Ex VAT 		12V DC 18V DC 83mA 82% 83mA 9V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02A-15 DC/DC converter 67mA 2W 2 outputs 1500V insulation
Mean Well DPAN02A-15 DC/DC converter 67mA 2W 2 outputs 1500V insulation
Standard range
Order code: 05-0372
MPN: DPAN02A-15

Available to back orderBack-order availability date - 01/07/2026
1+ £6.72
Price per unit Ex VAT 		15V DC 18V DC 67mA 83% 67mA 9V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02B-05 DC/DC converter 2 outputs 2W 200mA -40 to +90°C
Mean Well DPAN02B-05 DC/DC converter 2 outputs 2W 200mA -40 to +90°C
Standard range
Order code: 05-0373
MPN: DPAN02B-05

Despatched within 4 working days - 2 in stock
1+ £5.68
Price per unit Ex VAT 		5V DC 18V DC 200mA 79% 200mA 9V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02B-12 DC/DC converter 2 W 83 mA 2 outputs 1500 V insulation
Mean Well DPAN02B-12 DC/DC converter 2 W 83 mA 2 outputs 1500 V insulation
Standard range
Order code: 05-0374
MPN: DPAN02B-12

Available to back orderBack-order availability date - 01/07/2026
1+ £6.72
Price per unit Ex VAT 		12V DC 36V DC 83mA 81% 83mA 18V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02B-15 DC/DC converter 67 mA 2W 2 outputs 1500 V DC I/O insulation
Mean Well DPAN02B-15 DC/DC converter 67 mA 2W 2 outputs 1500 V DC I/O insulation
Standard range
Order code: 05-0375
MPN: DPAN02B-15

Available to back orderBack-order availability date - 01/07/2026
1+ £7.49
Price per unit Ex VAT 		15V DC 18V DC 67mA 85% 67mA 9V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02C-05 DPAN02 DC/DC converter 2W 2 outputs 1500V insulation
Mean Well DPAN02C-05 DPAN02 DC/DC converter 2W 2 outputs 1500V insulation
Extended range
Order code: 05-0376
MPN: DPAN02C-05

Back order - 3 availableBack-order availability date - 02/07/2026
1+ £9.90
Price per unit Ex VAT 		5V DC 75V DC 200mA 78% 200mA 36V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02C-12 DPAN02 DC/DC converter 2x outputs 2W -40°C~90°C
Mean Well DPAN02C-12 DPAN02 DC/DC converter 2x outputs 2W -40°C~90°C
Extended range
Order code: 05-0377
MPN: DPAN02C-12

Back order - 2 availableBack-order availability date - 02/07/2026
1+ £7.29
Price per unit Ex VAT 		12V DC 75V DC 83mA 82% 83mA 36V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02C-15 DC/DC converter 2 outputs 67 mA 2 W wide temp range
Mean Well DPAN02C-15 DC/DC converter 2 outputs 67 mA 2 W wide temp range
Standard range
Order code: 05-0378
MPN: DPAN02C-15

Available to back orderBack-order availability date - 01/07/2026
1+ £6.72
Price per unit Ex VAT 		15V DC 75V DC 67mA 84% 67mA 36V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02E-05 DC/DC converter 2x outputs 200mA 2W -40 to +90°C
Mean Well DPAN02E-05 DC/DC converter 2x outputs 200mA 2W -40 to +90°C
Standard range
Order code: 05-0379
MPN: DPAN02E-05

Despatched within 4 working days - 3 in stock
1+ £5.99
Price per unit Ex VAT 		5V DC 9V DC 200mA 78% 200mA 4.5V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm

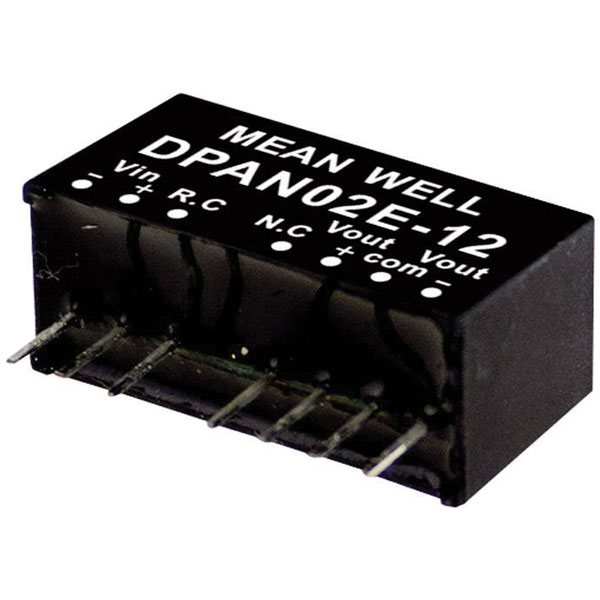

Mean Well DPAN02E-12 DC/DC converter 2W 2-output 83mA -40 to 90°C insulated
Mean Well DPAN02E-12 DC/DC converter 2W 2-output 83mA -40 to 90°C insulated
Extended range
Order code: 05-0380
MPN: DPAN02E-12

Back order - 22 availableBack-order availability date - 02/07/2026
1+ £7.39
Price per unit Ex VAT 		12V DC 9V DC 83mA 80% 83mA 4.5V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
Mean Well DPAN02E-15 DC/DC converter 2W 2 outputs 67mA -40 to +90°C range
Mean Well DPAN02E-15 DC/DC converter 2W 2 outputs 67mA -40 to +90°C range
Standard range
Order code: 05-0381
MPN: DPAN02E-15

Despatched within 4 working days - 155 in stock
1+ £6.81
Price per unit Ex VAT 		15V DC 9V DC 67mA 80% 67mA 4.5V DC 2W Pins (L x W x H) 21.8 x 9.2 x 11.1 mm 11.1mm 1500V DC 21.8mm +90°C 2 -40°C 2W DC-to-DC converter DC/DC converter (module) 4.8g 9.2mm
