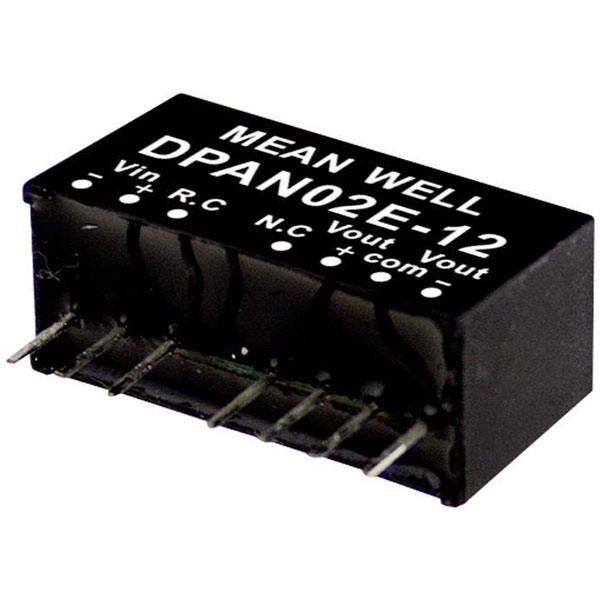

Mean Well DPAN02A-05 DC/DC converter 2W 200mA dual output 1500VDC insulation

Mean Well
Standard range
Order Code:

05-0370

Brand: Mean Well MPN: DPAN02A-05
Qty Unit Price (Ex VAT)
1+ £7.01
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
2 in stock, despatched in 4 working days

The Mean Well DPAN02A-05 is a DC/DC converter module with 200 mA current rating and 2 W power output, featuring dual outputs for versatile applications. This component is typically used in industrial and communication systems for efficient power distribution. Mean Well's module is compact, making it suitable for integration in space-constrained environments.
Type DC/DC converter (module)
Connection Pins
Dim (L x W x H) 21.8 x 9.2 x 11.1 mm
Efficiency (max.) 79%
Height 11.1mm
Input voltage (max.) 18V DC
Insulation voltage 1500V DC
Length 21.8mm
Max. output current 200mA
Min. input voltage 9V DC
Misc Attribute DPAN02A-05
No. of outputs 2
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 200mA
Power 2W
PSU features DC-to-DC converter
RoHS-compliant Yes
Weight 4.8g
Width 9.2mm
