Mean Well LED Drivers LED driver 608158

Mean Well Brand: Mean Well

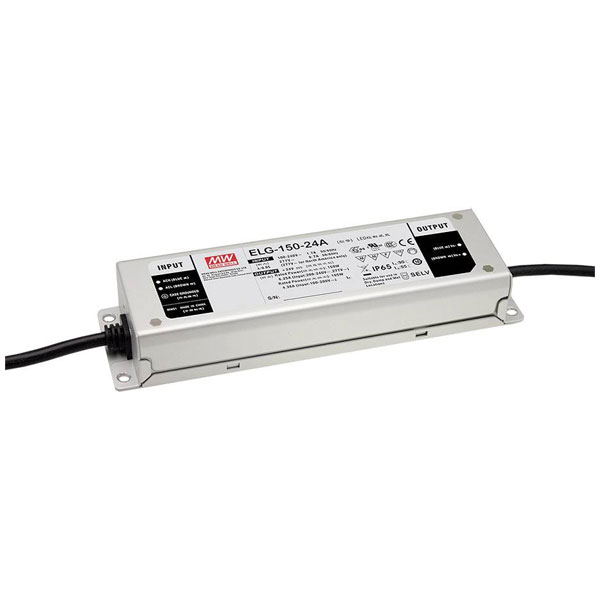

The Mean Well ELG-150 series comprises LED drivers known for their dimmable functionality and surge protection, suitable for both indoor and outdoor applications.
Description Image Product Buy Pricing (Ex VAT) IP Rating Max. output current Max. power Misc Attribute 1 Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Power range Test mark Protection Class Type Connection Dim Factory colour Height Length Max. temperature Min. temperature Misc Attribute 2
Mean Well ELG-150-24AB-3Y LED driver 150W dimmable surge protection
Mean Well ELG-150-24AB-3Y LED driver 150W dimmable surge protection
Standard range
Order code: 05-0456
MPN: ELG-150-24AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £38.85
Price per unit Ex VAT 		IP65 6.25A 150W Constant voltage 6.25A 3.2A 26.4V DC 21.6V DC 150 W (max) SELV, UL, MM, ENEC, CB, CE I LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-36AB-3Y outdoor LED driver dimmable surge protected
Mean Well ELG-150-36AB-3Y outdoor LED driver dimmable surge protected
Standard range
Order code: 05-0460
MPN: ELG-150-36AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £36.56
Price per unit Ex VAT 		IP65 4.17A 150.1W Constant voltage 4.17A 2.1A 39.6V DC 32.4V DC 150.1 W (max) SELV, UL, MM, ENEC, CB, CE I LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-42AB-3Y LED driver 150W dimmable outdoor surge protection
Mean Well ELG-150-42AB-3Y LED driver 150W dimmable outdoor surge protection
Standard range
Order code: 05-0461
MPN: ELG-150-42AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £36.56
Price per unit Ex VAT 		IP65 3.57A 150W Constant voltage 3.57A 1.8A 46.2V DC 37.8V DC 150 W (max) SELV, UL, MM, ENEC, CB, CE I LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-48AB-3Y LED driver 150.2W 3-in-1 dimmer outdoor use
Mean Well ELG-150-48AB-3Y LED driver 150.2W 3-in-1 dimmer outdoor use
Standard range
Order code: 05-0463
MPN: ELG-150-48AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £36.56
Price per unit Ex VAT 		IP65 3.13A 150.2W Constant voltage 3.13A 1.56A 52.8V DC 43.2V DC 150.2 W (max) SELV, UL, MM, ENEC, CB, CE I LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-54AB-3Y LED driver dimmable 151.2W 49-58V outdoor
Mean Well ELG-150-54AB-3Y LED driver dimmable 151.2W 49-58V outdoor
Standard range
Order code: 05-0464
MPN: ELG-150-54AB-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £38.85
Price per unit Ex VAT 		IP65 2.8A 151.2W Constant voltage 2.8A 1.4A 58V DC 49V DC 151.2 W (max) SELV, UL, MM, ENEC, CB, CE I LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-C1050B-3Y elg series LED driver 105W 1050mA 3-in-1 dimmer
Mean Well ELG-150-C1050B-3Y elg series LED driver 105W 1050mA 3-in-1 dimmer
Standard range
Order code: 05-0465
MPN: ELG-150-C1050B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £35.59
Price per unit Ex VAT 		IP67 1050mA 105W Constant current 1.05A 143V DC 72V DC 105 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-C1050DA-3Y ELG series LED driver 105W 1400mA DALI dimmable
Mean Well ELG-150-C1050DA-3Y ELG series LED driver 105W 1400mA DALI dimmable
Standard range
Order code: 05-0466
MPN: ELG-150-C1050DA-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £37.52
Price per unit Ex VAT 		IP67 1400mA 105W Constant current 1.4A 143V DC 72V DC 105 W (max) CE, CB, MM, UL, ENEC LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-C1400B-3Y ELG LED driver 105W 1400mA dimmable outdoor
Mean Well ELG-150-C1400B-3Y ELG LED driver 105W 1400mA dimmable outdoor
Standard range
Order code: 05-0467
MPN: ELG-150-C1400B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £35.59
Price per unit Ex VAT 		IP67 1400mA 105W Constant current 1.4A 107V DC 54V DC 105 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-C1400DA-3Y ELG series LED driver 105W 1400mA 54-107V dimmable
Mean Well ELG-150-C1400DA-3Y ELG series LED driver 105W 1400mA 54-107V dimmable
Standard range
Order code: 05-0468
MPN: ELG-150-C1400DA-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £41.57
Price per unit Ex VAT 		IP67 1400mA 105W Constant current 1.4A 107V DC 54V DC 105 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-C1750B-3Y ELG series LED driver 105W 1750mA dimmable
Mean Well ELG-150-C1750B-3Y ELG series LED driver 105W 1750mA dimmable
Standard range
Order code: 05-0469
MPN: ELG-150-C1750B-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £37.81
Price per unit Ex VAT 		IP67 1750mA 105W Constant current 1.75A 86V DC 43V DC 105 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
Mean Well ELG-150-C1750DA-3Y ELG LED driver 105W 1750mA 43-86V dimmable
Mean Well ELG-150-C1750DA-3Y ELG LED driver 105W 1750mA 43-86V dimmable
Standard range
Order code: 05-0470
MPN: ELG-150-C1750DA-3Y

Available to back orderBack-order availability date - 12/12/2025
1+ £41.57
Price per unit Ex VAT 		IP67 1750mA 105W Constant current 1.75A 86V DC 43V DC 105 W (max) CE, CB, MM, SELV, UL, ENEC LED driver Open end cable (L x W x H) 219 x 63 x 35.5 mm Metal 35.5mm 219mm +90°C -40°C Pulsed
