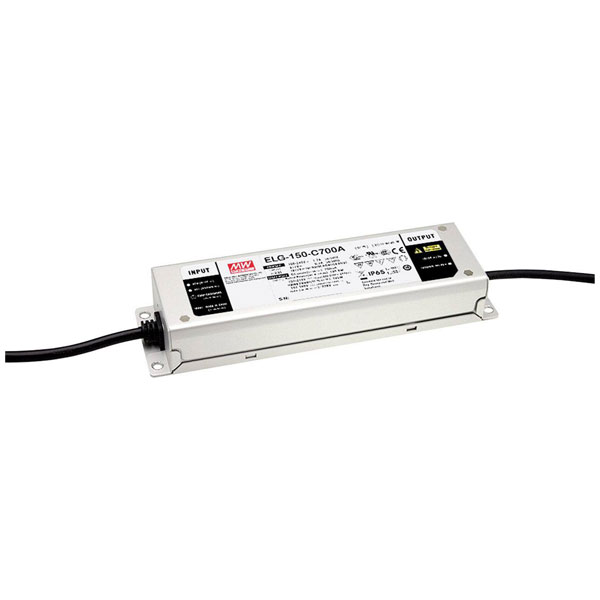

Mean Well ELG-150-C1400DA-3Y ELG series LED driver 105W 1400mA 54-107V dimmable

The Mean Well ELG-150-C1400DA-3Y is a constant current LED driver that delivers 105 W and operates at 1400 mA with a voltage range of 54 - 107 V DC, suitable for outdoor use. It features dimmable capabilities, surge protection, an integrated PFC circuit, and is approved for flammable surfaces and furniture applications. Typical uses include powering LED lighting installations for residential and commercial settings, providing reliable performance even in rigorous environments.

Type	LED driver
Connection	Open end cable
Dim	(L x W x H) 219 x 63 x 35.5 mm
Factory colour	Metal
Height	35.5mm
IP Rating	IP67
Length	219mm
Max. output current	1400mA
Max. power	105W
Max. temperature	+90°C
Min. temperature	-40°C
Misc Attribute 1	Constant current
Misc Attribute 2	Pulsed
Number of Inputs	1
Number of Outputs	1
Output current (max.) - rounded	1.4A
Output voltage (max.)	107V DC
Output voltage (min.)	54V DC
Power range	105 W (max)
Test mark	CE, CB, MM, SELV, UL, ENEC
Width	63mm
