Phoenix Contact Project Boards Sensor/actuator data cable (pre-fab) 629898

Phoenix Contact Brand: Phoenix Contact
The group of parts includes various types of cables and connectors designed by Phoenix Contact, featuring different specifications for industrial applications such as communication and sensor/actuator connections, with resistance to environmental factors.
Description Image Product Buy Qty Pricing (Ex VAT) Cable colour Cable diameter (details) Cable length Coding Connection side A Connection Connection side B Connector standard Connector type Cross-section (sensor/actuator wiring) IP rating Jacket material Manufacturer part # Max. temperature max. cross section Misc Attribute No. of pins Outside Ø Nominal voltage Seal type

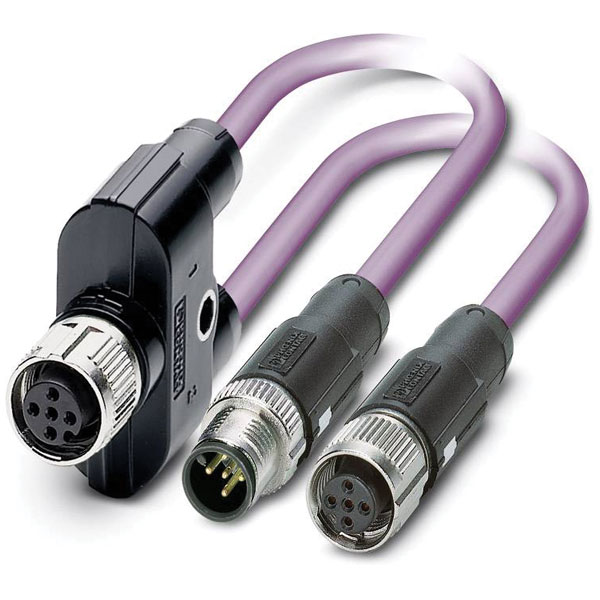

Phoenix Contact 1436013 SAC-5PY Cable 0.3m M12 CANopen Violet PUR
Phoenix Contact 1436013 SAC-5PY Cable 0.3m M12 CANopen Violet PUR
Standard range
Order code: 12-6820
MPN: 1436013

5 in stock, despatched in 4 working days
1+ £42.99
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 30.00cm A M12 socket, straight Bus connector Adapter, Y-shaped 0.25mm² IP67 PUR 1436013 +105°C SAC-5PY-F/2X 0,3-920-MS-FS 5 1.95mm Screw-on
Phoenix Contact 1454228 Sensor/Actuator Cable: UV Ozone Heat Resistant
Phoenix Contact 1454228 Sensor/Actuator Cable: UV Ozone Heat Resistant
Standard range
Order code: 12-6845
MPN: 1454228

1 in stock, despatched in 4 working days
1+ £114.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		4.7mm 10.00m D Cable, open end Open end cable M12 plug, straight Sensor connector Plug, straight 0.34mm² IP65/IP68/IP69K 1454228 +80°C VS-M12MSD/10,0-93X OD 4 1.95mm Screw-on
Phoenix Contact 1507243 Bus Cable PUR Violet M12 2m PROFIBUS Shielded
Phoenix Contact 1507243 Bus Cable PUR Violet M12 2m PROFIBUS Shielded
Standard range
Order code: 12-6869
MPN: 1507243

2 in stock, despatched in 4 working days
1+ £23.89
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 2.00m B Cable, open end Open end cable M12 plug, straight Bus connector Plug, straight 0.25mm² IP67 PUR 1507243 +105°C 0.25mm² SAC-2P-M12MSB/ 2,0-910 2 2.55mm 48V AC
Phoenix Contact 1507421 SAC Bus Cable 2M CANopen Violet M12 Plug Shielded
Phoenix Contact 1507421 SAC Bus Cable 2M CANopen Violet M12 Plug Shielded
Standard range
Order code: 12-6870
MPN: 1507421

7 in stock, despatched in 4 working days
1+ £24.18
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 2.00m A Cable, open end Open end cable M12 plug, straight Bus connector Plug, straight 0.25mm² IP67 PUR 1507421 +105°C SAC-5P-M12MS/ 2,0-920 5 1.95mm 48V AC Screw-on
Phoenix Contact 1507544 SAC Cable 1m CANopen/Device Net M12 A-coded Violet
Phoenix Contact 1507544 SAC Cable 1m CANopen/Device Net M12 A-coded Violet
Standard range
Order code: 12-6871
MPN: 1507544

7 in stock, despatched in 4 working days
1+ £31.87
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 1.00m A M12 socket, straight M12 socket, straight Bus connector 0.25mm² IP67 PUR 1507544 +105°C SAC-5P-M12MS/ 1,0-920/M12FS 5 1.95mm 48V AC Screw-on
Phoenix Contact 1514579 SAC Cable 0.5m 5P Shielded Violet
Phoenix Contact 1514579 SAC Cable 0.5m 5P Shielded Violet
Standard range
Order code: 12-6882
MPN: 1514579

22 in stock, despatched in 4 working days
1+ £40.91
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 0.50m A M12 socket, straight Bus connector Adapter, Y-shaped 0.25mm² IP67 PUR 1514579 +105°C SAC-5P-M12FY/0,5-920/M12MS-FS 5 1.95mm Screw-on
Phoenix Contact 1518229 SAC Cable 5m Violet PUR M12-SPEEDCON Shielded
Phoenix Contact 1518229 SAC Cable 5m Violet PUR M12-SPEEDCON Shielded
Extended range
Order code: 12-6884
MPN: 1518229

14 in stock, despatched in 4 working days
1+ £30.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 5.00m A Cable, open end Open end cable M12 socket, straight Bus connector Socket, straight 0.25mm² IP67 PUR 1518229 +105°C SAC-5P- 5,0-920/FS SCO 5 1.95mm Screw-on
Phoenix Contact 1519354 CANopen/Device Net Cable 0.5m PUR Violet Shielded
Phoenix Contact 1519354 CANopen/Device Net Cable 0.5m PUR Violet Shielded
Standard range
Order code: 12-6886
MPN: 1519354

2 in stock, despatched in 4 working days
1+ £18.60
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 0.50m A Cable, open end Open end cable M12 plug, straight Bus connector Plug, straight 0.25mm² IP67 PUR 1519354 +105°C SAC-5P-M12MS/ 0,5-920 5 1.95mm Screw-on
Phoenix Contact SAC-4P-M12MSD/50-933/M12MSD PROFINET Cable 5m RAL6018
Phoenix Contact SAC-4P-M12MSD/50-933/M12MSD PROFINET Cable 5m RAL6018
Standard range
Order code: 12-6915
MPN: 1524381

2 in stock, despatched in 4 working days
1+ £47.57
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 5.00m D M12 plug, straight M12 plug, straight Bus connector Plug, straight 0.34mm² IP67 PUR 1524381 +105°C SAC-4P-M12MSD/ 5,0-933/M12MSD 4 1.55mm 48V AC Screw-on
Phoenix Contact 1543359 INTERBUS Cable 4P PUR 2m M8 Plug/Socket
Phoenix Contact 1543359 INTERBUS Cable 4P PUR 2m M8 Plug/Socket
Standard range
Order code: 12-6932
MPN: 1543359

9 in stock, despatched in 4 working days
1+ £32.27
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT 		Violet 2.00m A M8 socket, straight M8 socket, straight Bus connector 0.14mm² IP67 PUR 1543359 +105°C SAC-4P-M 8MS/ 2,0-950/M 8FS 4 0.97mm Screw-on
