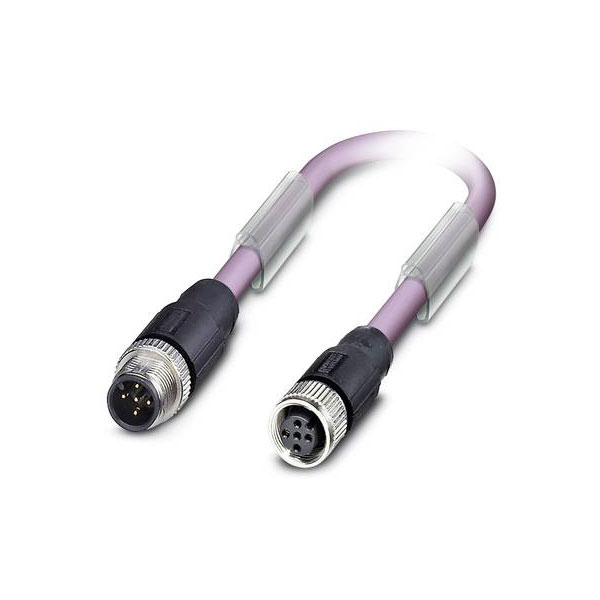

Phoenix Contact 1507544 SAC Cable 1m CANopen/Device Net M12 A-coded Violet

The product is a sensor/actuator data cable manufactured by Phoenix Contact. It features a length of 1.0 metre and an M12 connector configuration, providing reliable connectivity in automation applications. Ideal for use in bus systems, it facilitates efficient data transmission between sensors and actuators.

Connector 1	M12
Connector 2	M12
Colour	Violet
Length	1m
Type	Bus connector
Cable Length	1m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.95mm
Halogen free	true
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Max. temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-5P-M12MS/ 1,0-920/M12FS
Nominal Current	4A
Nominal Voltage	48V AC
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	true
Seal type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Female (bus)
Vulcanized	false
With LED indication	false
