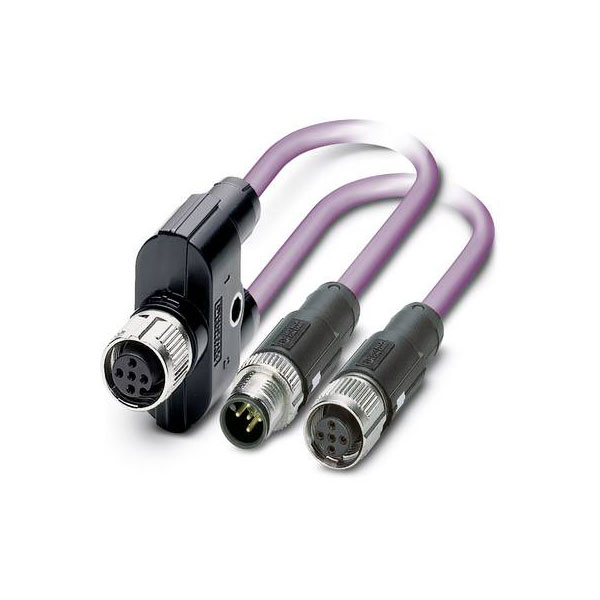

Phoenix Contact 1436013 SAC-5PY Cable 0.3m M12 CANopen Violet PUR

Phoenix Contact manufactures the bus system cable SAC-5PY-F/2X 0,3-920-MS-FS 1436013. This pre-fabricated sensor/actuator data cable features robust construction for reliable data transmission. It is typically used to facilitate connectivity in industrial automation environments.

Connector 1	M12
Colour	Violet
Length	0.3m
Type	Bus connector
Cable Length	0.3m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.95mm
Halogen free	true
IP Rating	IP67
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Maximum Temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-5PY-F/2X 0,3-920-MS-FS
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	false
Seal Type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Female (bus)
Vulcanized	false
With LED indication	false
