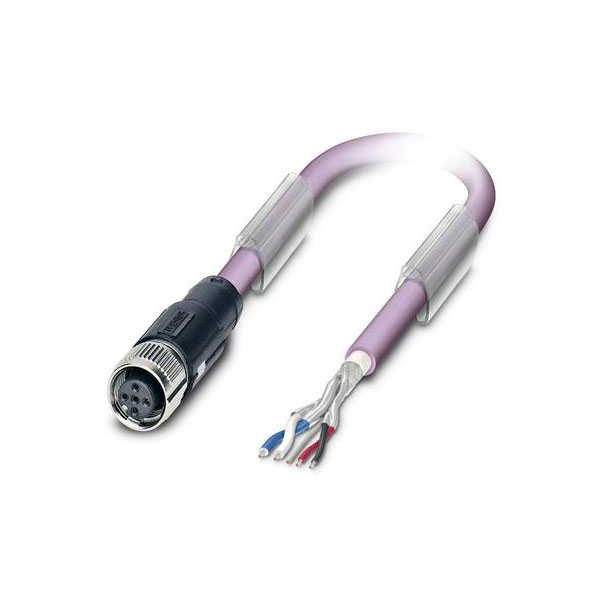

Phoenix Contact 1518229 SAC Cable 5m Violet PUR M12-SPEEDCON Shielded

Phoenix Contact manufactures the Bus system cable SAC-5P-5,0-920/FS SCO 1518229, a pre-fabricated sensor/actuator data cable. This cable is notable for its robust design and reliable data transmission capabilities. It is typically used in industrial automation and control systems.

Connector 1	Cable, open end
Connector 2	M12
Colour	Violet
Length	5m
Type	Bus connector
Cable Length	5m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.95mm
Halogen free	true
IP Rating	IP67
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Maximum Temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-5P- 5,0-920/FS SCO
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Other
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	true
Seal Type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	Other
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Female (bus)
Vulcanized	false
With LED indication	false
