Phoenix Contact 1519354 CANopen/Device Net Cable 0.5m PUR Violet Shielded

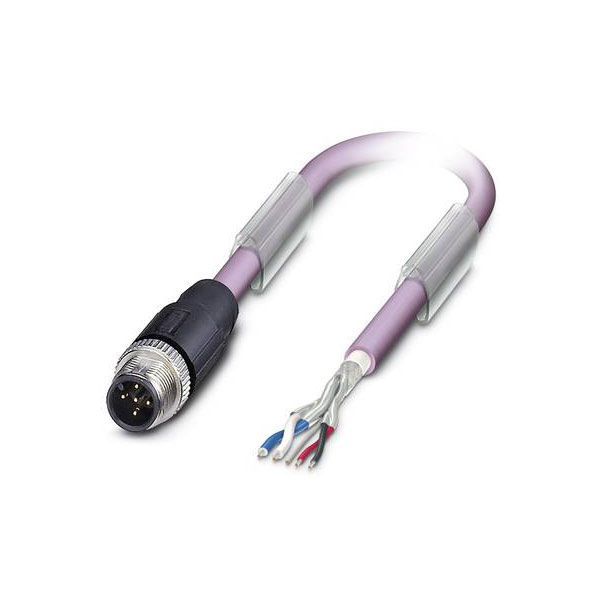

Phoenix Contact manufactures the SAC-5P-M12MS/ 0,5-920, a bus system cable designed for DeviceNet and CANopen applications. This product features a straight M12 plug with a free cable end, incorporating sensor/actuator data cabling for industrial use. Typical applications include integration with industrial automation systems where reliable data transmission is needed.

Connector 1	Cable, open end
Connector 2	M12
Colour	Violet
Length	0.5m
Type	Bus connector
Cable Length	0.5m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.95mm
Halogen free	true
IP Rating	IP67
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Maximum Temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-5P-M12MS/ 0,5-920
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Seal Type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
