Phoenix Contact 1507421 SAC Bus Cable 2M CANopen Violet M12 Plug Shielded

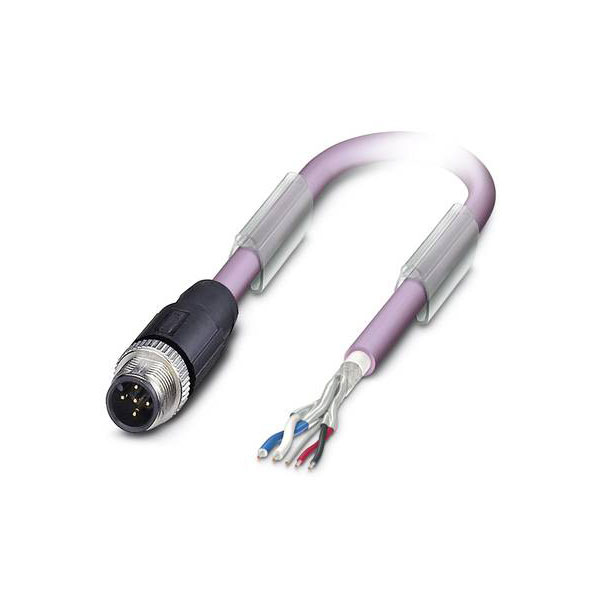

Phoenix Contact manufactures the SAC-5P-M12MS/2,0-920, a sensor/actuator data cable. This cable features a 5-pin M12 male straight connector and is designed for reliable signal transmission in industrial environments. It is typically used in bus systems to facilitate communication between sensors and actuators.

Connector 1	Cable, open end
Connector 2	M12
Colour	Violet
Length	2m
Type	Bus connector
Cable Length	2m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.95mm
Halogen free	true
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Max. temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-5P-M12MS/ 2,0-920
Nominal Current	4A
Nominal Voltage	48V AC
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Seal Type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
