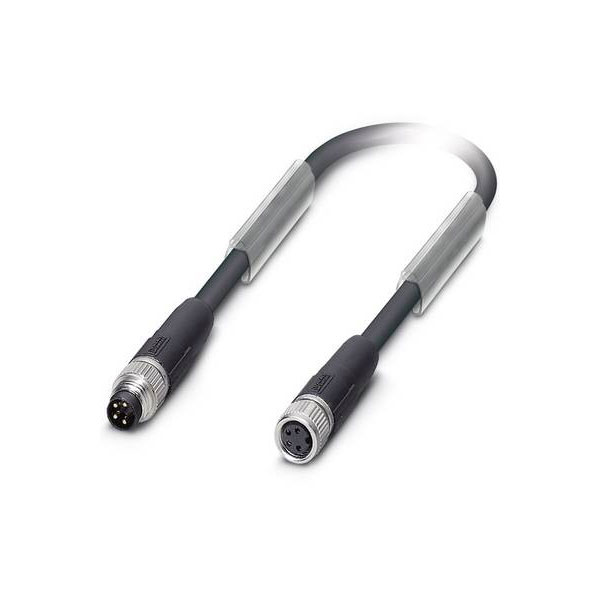

Phoenix Contact manufactures the Bus system cable SAC-4P-M 8MS/2,0-950/M 8FS (part number 1543359), which is a sensor/actuator data cable pre-fabricated for ready use. This cable features an M8 male straight and M8 female straight connector, with a 2-meter length, providing reliable data transmission and connectivity. It is typically employed in industrial automation systems to facilitate communication between sensors and actuators.
| Connector 1 |
M8 |
| Connector 2 |
M8 |
| Colour |
Violet |
| Length |
2m |
| Type |
Bus connector |
| Cable Length |
2m |
| Cable Type |
N/A |
| Coding |
A |
| Colour cable sheath |
Other |
| Continuity resistance |
N/AmOhm |
| Cross-section (sensor/actuator wiring) |
0.14mm² |
| Degree of protection (IP) |
IP65 |
| Diameter |
0.97mm |
| Halogen free |
true |
| IP Rating |
IP67 |
| Material |
PUR |
| Material contact body |
Other |
| Material of cable sheath |
Other |
| Material of contact surface |
Other |
| Maximum Temperature |
+105°C |
| Min. temperature |
-40°C |
| Misc Attribute |
SAC-4P-M 8MS/ 2,0-950/M 8FS |
| Nominal Current |
4A |
| Number of Poles |
4 |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80°C |
| Permitted cable outer temperature during assembling/handling |
-40 - 80°C |
| Positioning cable feed, box-sided |
Straight |
| Positioning cable feed, field-sided |
Straight |
| Rated current In |
4A |
| Rated voltage |
48V |
| Screened |
true |
| Seal Type |
Screw-on |
| Thread Type |
M8 |
| Type of electrical connection, box-sided |
M8 |
| Type of electrical connection, field-sided |
M8 |
| Type of plug-in contact, box-sided |
N/A |
| Type of plug-in contact, field sided |
Female (bus) |
| Vulcanized |
false |
| With LED indication |
false |
