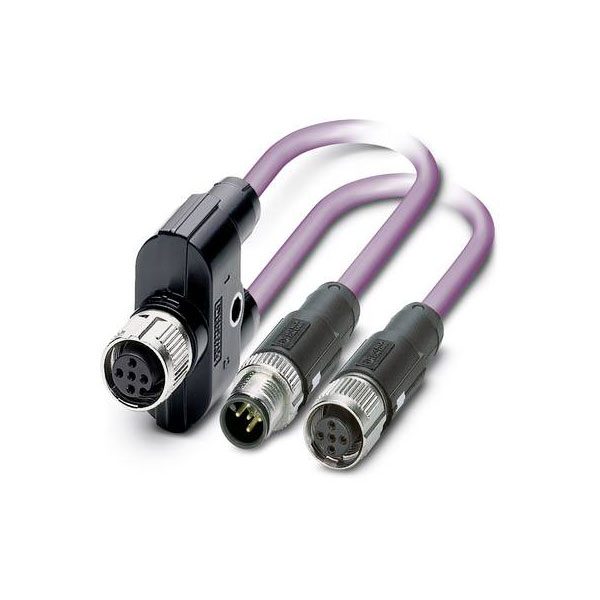

Phoenix Contact 1514579 SAC Cable 0.5m 5P Shielded Violet

The SAC-5P-M12FY/0,5-920/M12MS-FS 1514579 by Phoenix Contact is a pre-fabricated bus system cable designed for DeviceNet and CANopen systems. It features an M12 plug and socket, ideal for sensor and actuator applications. This PLUSCON industrial plug is commonly used in automated industrial environments for reliable data transmission.

Connector 1	M12
Colour	Violet
Length	0.5m
Type	Bus connector
Cable Length	0.5m
Cable Type	N/A
Coding	A
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	1.95mm
Halogen free	true
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Max. temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-5P-M12FY/0,5-920/M12MS-FS
Nominal Current	4A
Number of Poles	5
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Straight
Rated current In	4A
Rated voltage	48V
Screened	true
Seal Type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
