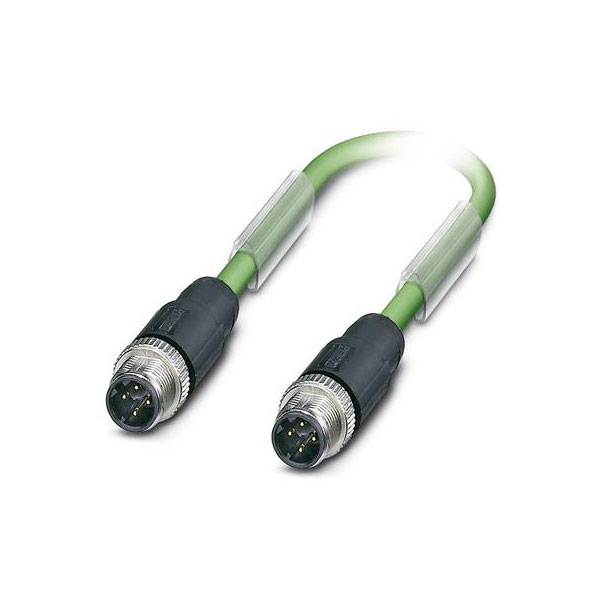

Phoenix Contact SAC-4P-M12MSD/50-933/M12MSD PROFINET Cable 5m RAL6018

The Phoenix Contact bus system cable SAC-4P-M12MSD/5,0-933/M12MSD 1524381 is a sensor/actuator data cable designed for reliable data transmission. It features pre-fabricated connectors and is typically used in industrial automation systems. The cable is suitable for harsh environments, ensuring robust connectivity and performance.

Connector 1	M12
Connector 2	M12
Colour	Violet
Length	5m
Type	Bus connector
Cable Length	5m
Cable Type	N/A
Coding	D
Colour cable sheath	Other
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.34mm²
Degree of protection (IP)	IP67
Diameter	1.55mm
Halogen free	true
Material	PUR
Material contact body	Other
Material of cable sheath	Polyvinyl chloride (PVC)
Material of contact surface	N/A
Max. temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-4P-M12MSD/ 5,0-933/M12MSD
Nominal Current	4A
Nominal Voltage	48V AC
Number of Poles	4
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-10 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Seal Type	Screw-on
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	M12
Type of plug-in contact, box-sided	Male (plug)
Type of plug-in contact, field sided	Male (plug)
Vulcanized	false
With LED indication	false
