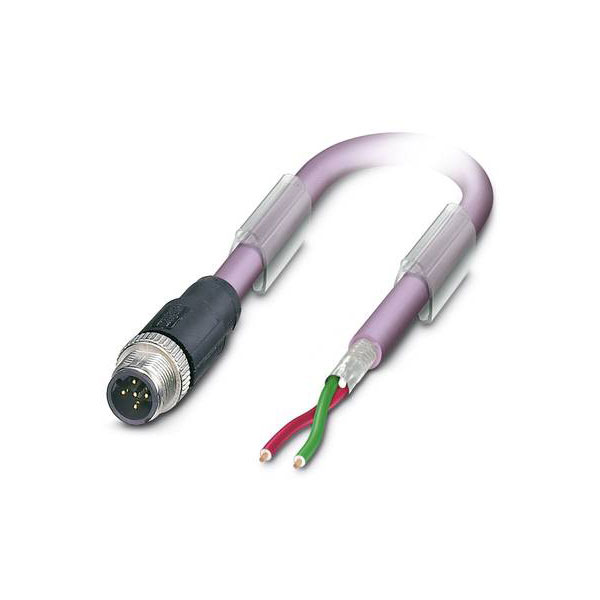

Phoenix Contact 1507243 Bus Cable PUR Violet M12 2m PROFIBUS Shielded

Phoenix Contact manufactures the SAC-2P-M12MSB/ 2,0-910, a sensor/actuator data cable designed for connecting components in bus systems. This cable features pre-fabricated connectors, ensuring reliable and easy installation. It is typically used in industrial automation and control applications.

Connector 1	Cable, open end
Connector 2	M12
Colour	Violet
Length	2m
Type	Bus connector
Cable Length	2m
Cable Type	N/A
Coding	B
Colour cable sheath	Other
Conductor Cross Section	0.25mm²
Connection	Open end cable
Continuity resistance	N/AmOhm
Cross-section (sensor/actuator wiring)	0.25mm²
Degree of protection (IP)	IP65
Diameter	2.55mm
Halogen free	true
IP Rating	IP67
Material	PUR
Material contact body	Other
Material of cable sheath	Other
Material of contact surface	Other
Maximum Temperature	+105°C
Min. temperature	-40°C
Misc Attribute	SAC-2P-M12MSB/ 2,0-910
Nominal Current	4A
Nominal Voltage	48V AC
Number of Poles	2
Permitted cable outer temperature after assembling without vibration	-40 - 80°C
Permitted cable outer temperature during assembling/handling	-30 - 70°C
Positioning cable feed, box-sided	Straight
Positioning cable feed, field-sided	Other
Rated current In	4A
Rated voltage	48V
Screened	true
Thread Type	M12
Type of electrical connection, box-sided	M12
Type of electrical connection, field-sided	Other
Type of plug-in contact, box-sided	N/A
Type of plug-in contact, field sided	N/A
Vulcanized	false
With LED indication	false
