Mean Well LED Drivers LED driver 608175

Mean Well Brand: Mean Well

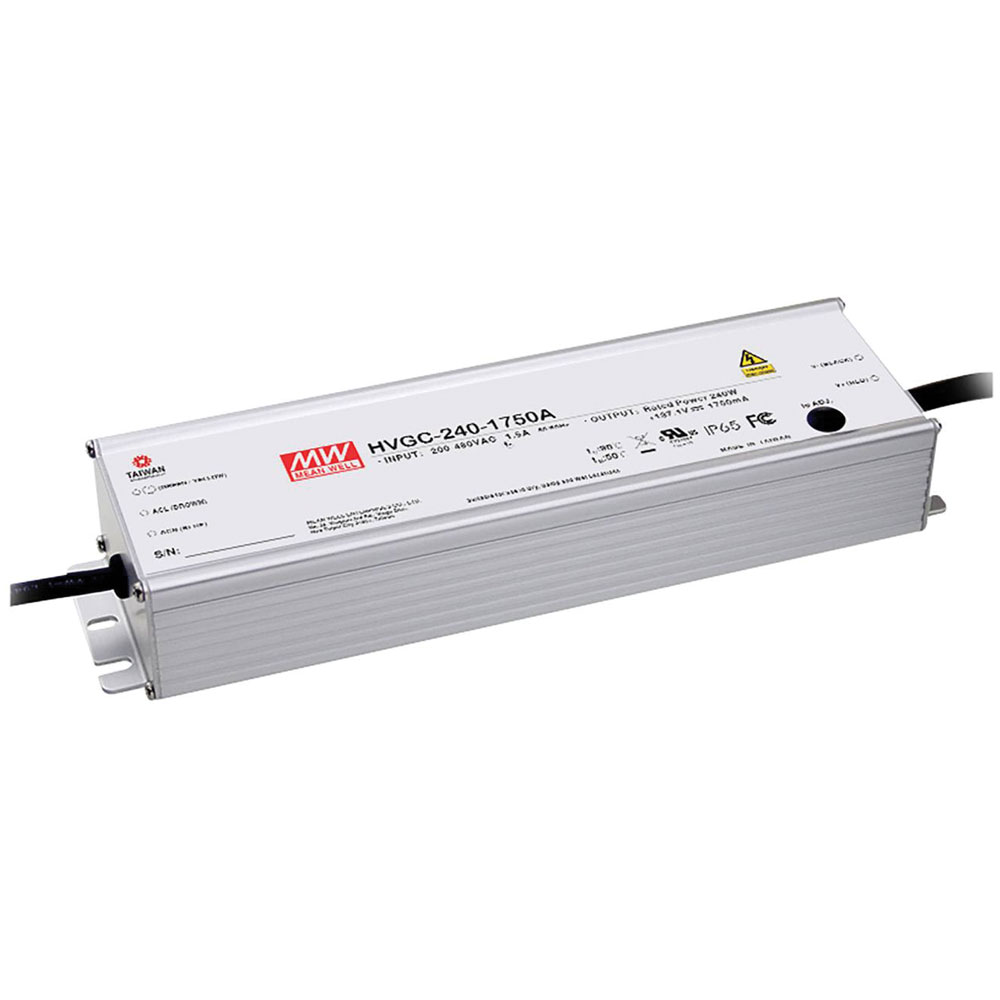

Mean Well produces a range of dimmable LED drivers designed for outdoor use, offering features such as surge protection and power factor correction, with a power capacity of 240W.
Description Image Product Buy Pricing (Ex VAT) Dim Height IP Rating Length Max. output current Max. power Max. temperature Misc Attribute 1 Output current (max.) - rounded Output current (min.) Output voltage (max.) Output voltage (min.) Power range Test mark Width Type Connection Factory colour Inputs Min. temperature
Mean Well HVGC-240-1050AB LED driver dimmable outdoor use 240W
Mean Well HVGC-240-1050AB LED driver dimmable outdoor use 240W
Standard range
Order code: 05-0892
MPN: HVGC-240-1050AB

Available to back orderBack-order availability date - 15/12/2025
1+ £84.04
Price per unit Ex VAT 		(L x W x H) 254.2 x 68 x 38.8 mm 38.8mm IP65 254.2mm 1050mA 240W +90°C Constant current 1.05A 525mA 228.6V DC 114.3V DC 240 W (max) CE, UL, ENEC, MM 68mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-240-2800AB LED driver dimmable 240W surge protected
Mean Well HVGC-240-2800AB LED driver dimmable 240W surge protected
Standard range
Order code: 05-0895
MPN: HVGC-240-2800AB

Available to back orderBack-order availability date - 15/12/2025
1+ £84.04
Price per unit Ex VAT 		(L x W x H) 254.2 x 68 x 38.8 mm 38.8mm IP65 254.2mm 2800mA 240W +90°C Constant current 2.8A 1400mA 85.7V DC 42.9V DC 240 W (max) CE, UL, ENEC, MM 68mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-240-3500AB LED driver dimmable 240.1W outdoor use
Mean Well HVGC-240-3500AB LED driver dimmable 240.1W outdoor use
Standard range
Order code: 05-0896
MPN: HVGC-240-3500AB

Available to back orderBack-order availability date - 15/12/2025
1+ £97.68
Price per unit Ex VAT 		(L x W x H) 254.2 x 68 x 38.8 mm 38.8mm IP65 254.2mm 3500mA 240.1W +90°C Constant current 3.5A 1750mA 68.6V DC 34.3V DC 240.1 W (max) CE, UL, ENEC, MM 68mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-320-2100AB LED driver 320W adjustable current outdoor use
Mean Well HVGC-320-2100AB LED driver 320W adjustable current outdoor use
Standard range
Order code: 05-0897
MPN: HVGC-320-2100AB

Available to back orderBack-order availability date - 15/12/2025
1+ £107.86
Price per unit Ex VAT 		(L x W x H) 262 x 90 x 43.8 mm 43.8mm IP65 262mm 2100mA 320W +90°C Constant current 2.1A 1050mA 152.4V DC 76.2V DC 320 W (max) CE, UL, ENEC, MM 90mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-320-700AB LED driver 300W dimmable outdoor use
Mean Well HVGC-320-700AB LED driver 300W dimmable outdoor use
Standard range
Order code: 05-0898
MPN: HVGC-320-700AB

Available to back orderBack-order availability date - 15/12/2025
1+ £125.42
Price per unit Ex VAT 		(L x W x H) 262 x 90 x 43.8 mm 43.8mm IP65 262mm 700mA 300W +90°C Constant current 700mA 350mA 428V DC 214V DC 300 W (max) CE, UL, ENEC, MM 90mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-480-M-AB LED driver 480W 3-in-1 dimmer outdoor use
Mean Well HVGC-480-M-AB LED driver 480W 3-in-1 dimmer outdoor use
Standard range
Order code: 05-0899
MPN: HVGC-480-M-AB

Available to back orderBack-order availability date - 15/12/2025
1+ £169.11
Price per unit Ex VAT 		(L x W x H) 262 x 125 x 43.8 mm 43.8mm IP65 262mm 2625mA 480W +90°C Constant power 2.63A 1050mA 228.5V DC 92V DC 480 W (max) CE,CB,UL, ENEC 125mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-650-L-AB LED driver 650W 92.8-232V surge protect dimmable
Mean Well HVGC-650-L-AB LED driver 650W 92.8-232V surge protect dimmable
Standard range
Order code: 05-0900
MPN: HVGC-650-L-AB

Available to back orderBack-order availability date - 15/12/2025
1+ £213.76
Price per unit Ex VAT 		(L x W x H) 280 x 144 x 48.5 mm 48.5mm IP67 280mm 3.5A 649.6W +85°C Constant power 3.5A 2.8A 232V DC 92.8V DC 649.6 W (max) CE, CB, UL, ENEC 144mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-650-M-AB LED driver 651W dimmable surge PFC 3-in-1
Mean Well HVGC-650-M-AB LED driver 651W dimmable surge PFC 3-in-1
Standard range
Order code: 05-0901
MPN: HVGC-650-M-AB

Available to back orderBack-order availability date - 15/12/2025
1+ £213.76
Price per unit Ex VAT 		(L x W x H) 280 x 144 x 48.5 mm 48.5mm IP67 280mm 5.25A 651W +85°C Constant power 5.25A 4.2A 155V DC 62V DC 651 W (max) CE, CB, UL, ENEC 144mm LED driver Open end cable Metal 1 -40°C
Mean Well HVGC-650-U-AB LED driver 649.6W dimmable surge protection
Mean Well HVGC-650-U-AB LED driver 649.6W dimmable surge protection
Standard range
Order code: 05-0902
MPN: HVGC-650-U-AB

Available to back orderBack-order availability date - 15/12/2025
1+ £213.76
Price per unit Ex VAT 		(L x W x H) 280 x 144 x 48.5 mm 48.5mm IP67 280mm 14A 649.6W +85°C Constant power 14A 11.2A 58V DC 24V DC 649.6 W (max) CE, CB, SELV, ENEC 144mm LED driver Open end cable Metal 1 -40°C
