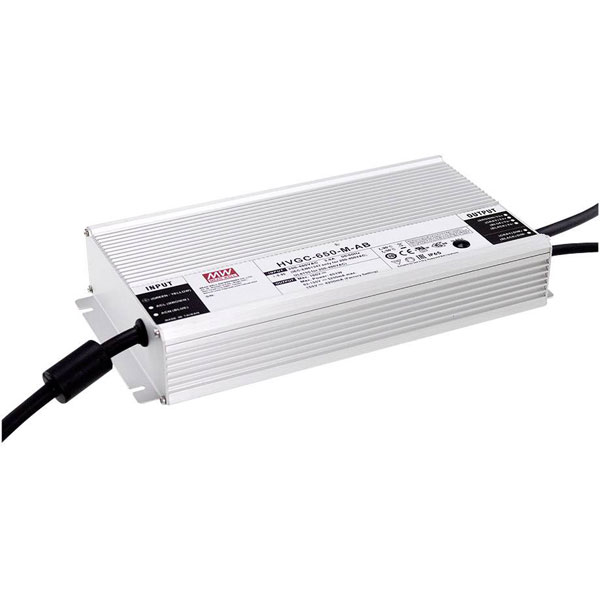

Mean Well HVGC-650-M-AB LED driver 651W dimmable surge PFC 3-in-1

Mean Well
Order Code:

05-0901

Brand: Mean Well MPN: HVGC-650-M-AB EAN-13: 4021087049160
Qty Unit Price (Ex VAT)
1+ £213.76
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 16/12/2025

The Mean Well HVGC-650-M-AB is an LED driver capable of delivering a constant power of 651 W with an adjustable output of 62 to 155 V DC and 4.2 to 5.25 A. This dimmable driver features a PFC circuit, surge protection, and overvoltage protection, making it ideal for powering LED strips and other LED applications. It incorporates a 3-in-1 dimmer, offering flexibility for various lighting setups.
Type LED driver
Connection Open end cable
Dim (L x W x H) 280 x 144 x 48.5 mm
Factory colour Metal
Height 48.5mm
Inputs 1
IP Rating IP67
Length 280mm
Max. output current 5.25A
Max. power 651W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Operating Voltage 230V AC
Output current (max.) - rounded 5.25A
Output current (min.) 4.2A
Output voltage (max.) 155V DC
Output voltage (min.) 62V DC
Power range 651 W (max)
Protection Class I
Test mark CE, CB, UL, ENEC
Width 144mm
