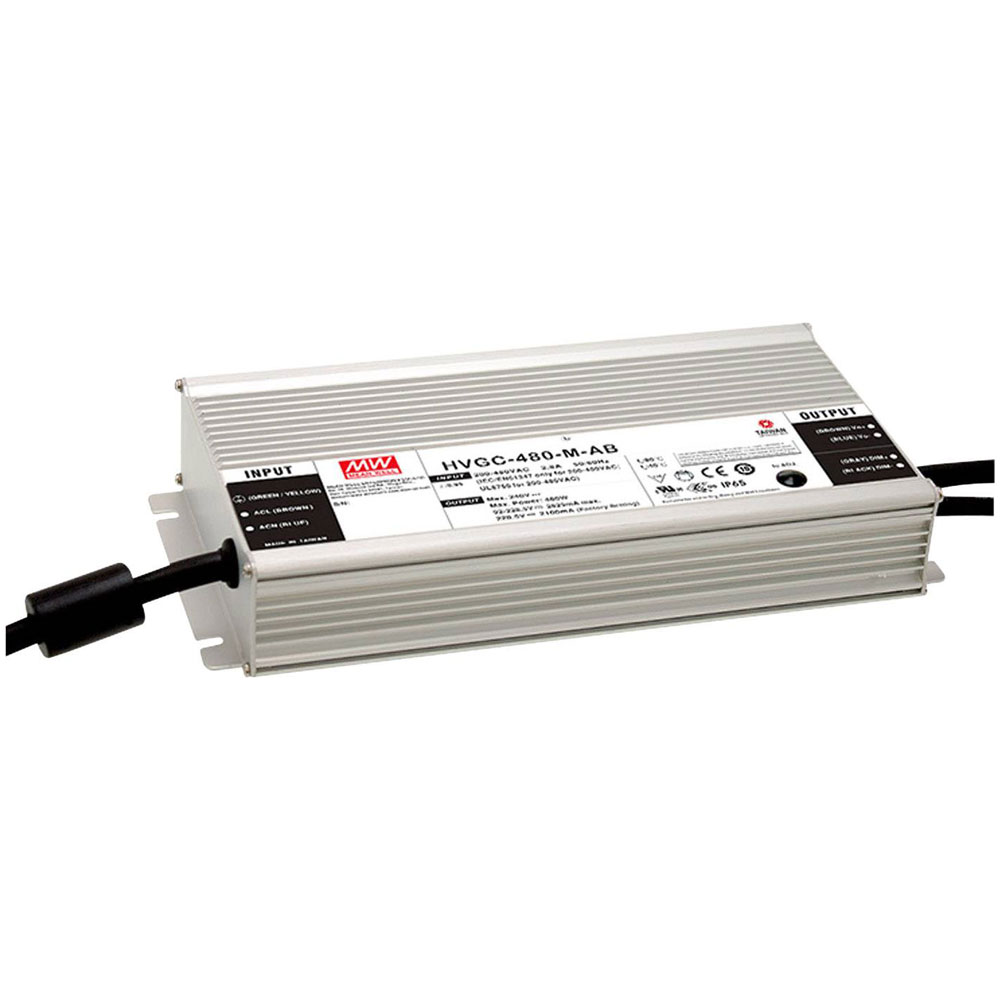

Mean Well HVGC-480-M-AB LED driver 480W 3-in-1 dimmer outdoor use

Mean Well
Order Code:

05-0899

Brand: Mean Well MPN: HVGC-480-M-AB EAN-13: 4021087049191
Qty Unit Price (Ex VAT)
1+ £169.11
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 16/12/2025

The Mean Well HVGC-480-M-AB is a LED driver with constant power output of 480 W, providing adjustable DC voltage from 92 to 228.5 V and current range of 1050 to 2625 mA. It features 3-in-1 dimming, surge protection, and a PFC circuit, making it suitable for outdoor lighting applications. Typical uses include powering LED strips or other outdoor LED lighting installations.
Type LED driver
Connection Open end cable
Dim (L x W x H) 262 x 125 x 43.8 mm
Factory colour Metal
Height 43.8mm
Inputs 1
IP Rating IP65
Length 262mm
Max. output current 2625mA
Max. power 480W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Operating Voltage 230V AC
Output current (max.) - rounded 2.63A
Output current (min.) 1050mA
Output voltage (max.) 228.5V DC
Output voltage (min.) 92V DC
Power range 480 W (max)
Protection Class I
Test mark CE,CB,UL, ENEC
Width 125mm
