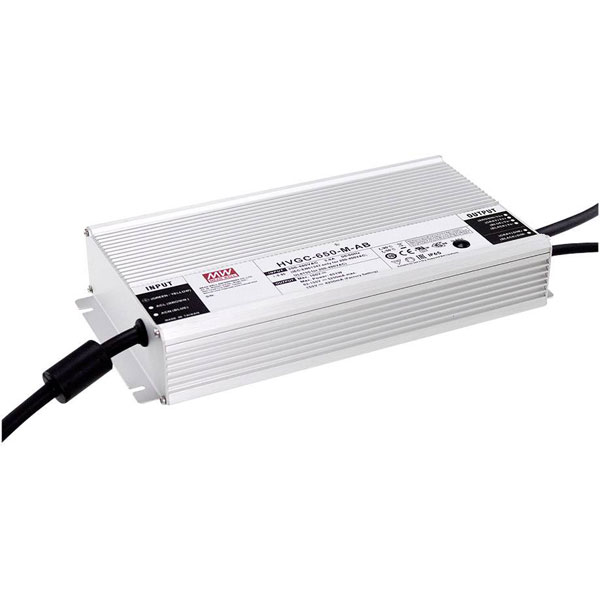

Mean Well HVGC-650-U-AB LED driver 649.6W dimmable surge protection

Mean Well
Order Code:

05-0902

Brand: Mean Well MPN: HVGC-650-U-AB EAN-13: 4021087049153
Qty Unit Price (Ex VAT)
1+ £213.76
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 15/12/2025

The Mean Well HVGC-650-U-AB is an LED driver designed for constant power delivery with a rating of 649.6 W and an adjustable output ranging from 24 to 58 V DC and 11.2 to 14 A. This driver features dimmable capabilities with a 3-in-1 dimmer, PFC circuit, surge protection, and overvoltage protection. Typical applications include powering LED strips and other LED lighting systems in various environments.
Type LED driver
Connection Open end cable
Dim (L x W x H) 280 x 144 x 48.5 mm
Factory colour Metal
Height 48.5mm
Inputs 1
IP Rating IP67
Length 280mm
Max. output current 14A
Max. power 649.6W
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Operating Voltage 230V AC
Output current (max.) - rounded 14A
Output current (min.) 11.2A
Output voltage (max.) 58V DC
Output voltage (min.) 24V DC
Power range 649.6 W (max)
Protection Class I
Test mark CE, CB, SELV, ENEC
Width 144mm
